4
IMG- 231547

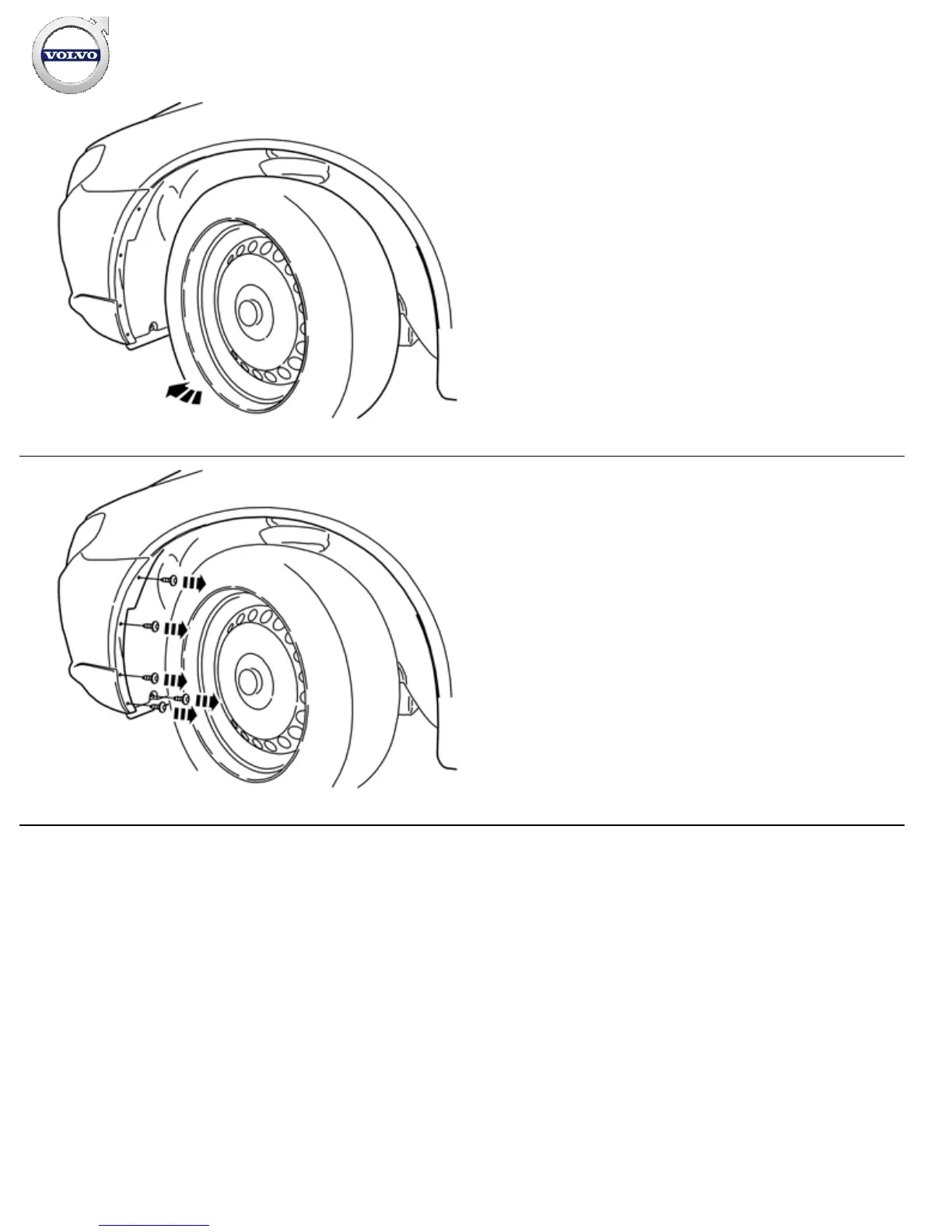

Rotate the front wheels so that the bolts in the wheel arch liner
on the left and right side are accessible.
5
IMG- 231549
Remove the seven screws in the front edge of the wheel arch
liner on the left and right sides.
