Straighten front backrests if they are tilted too far to the rear.
Pull the strap to lift the seat cushion and swing the cushion up and toward the back of the front seats.
Move the backrest release lever rearward and fold the backrest down.
When the backrest is raised, the outboard head restraints return to their normal position and must be
raised manually if required.
The backrest must lock into place. The red lock indicator will not be visible if the seat has locked into
place incorrectly.

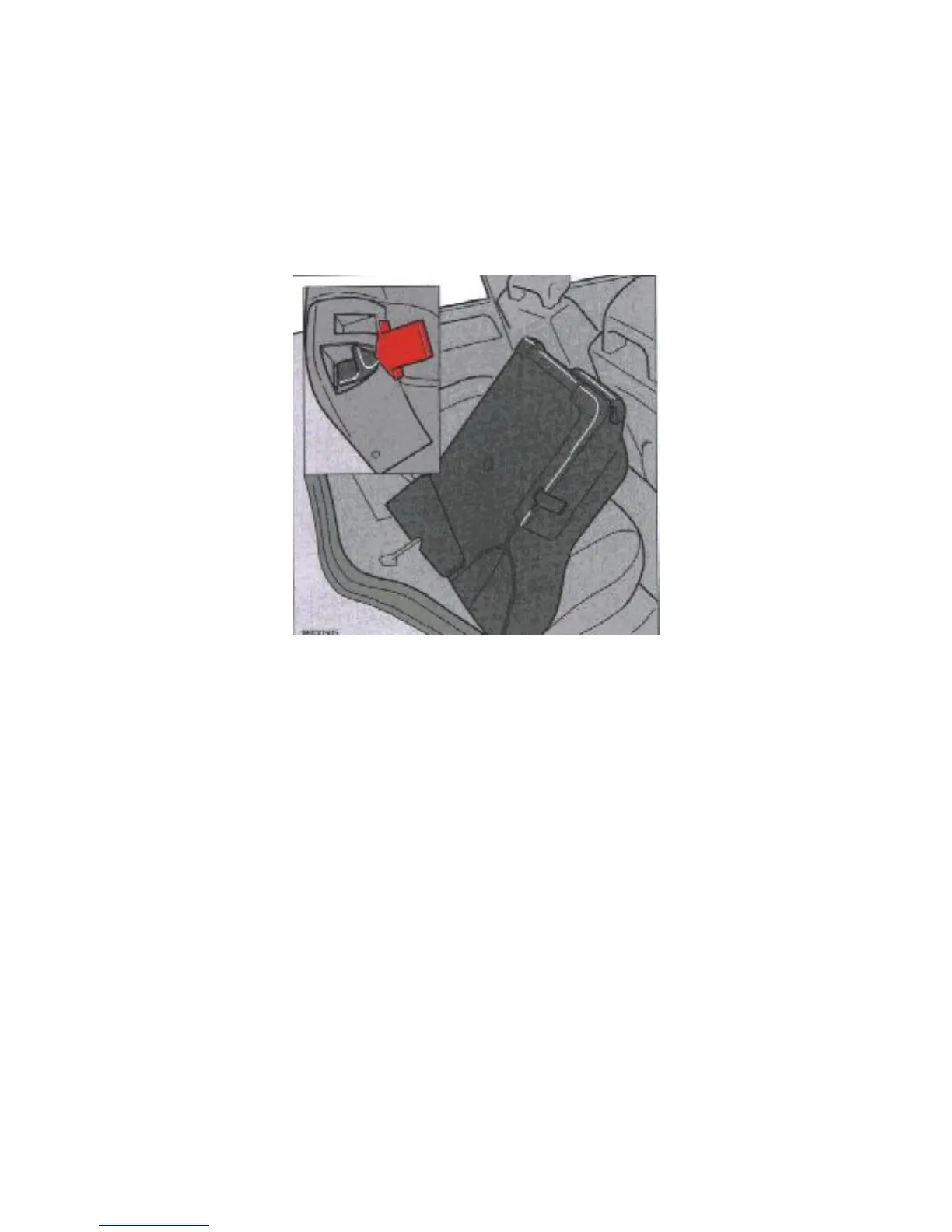

Release lever - backrest
CAUTION: Check that latches under seat cushions engage holes at top edge of backrest.
Seat belts must be correctly positioned as seat is returned to normal position.
