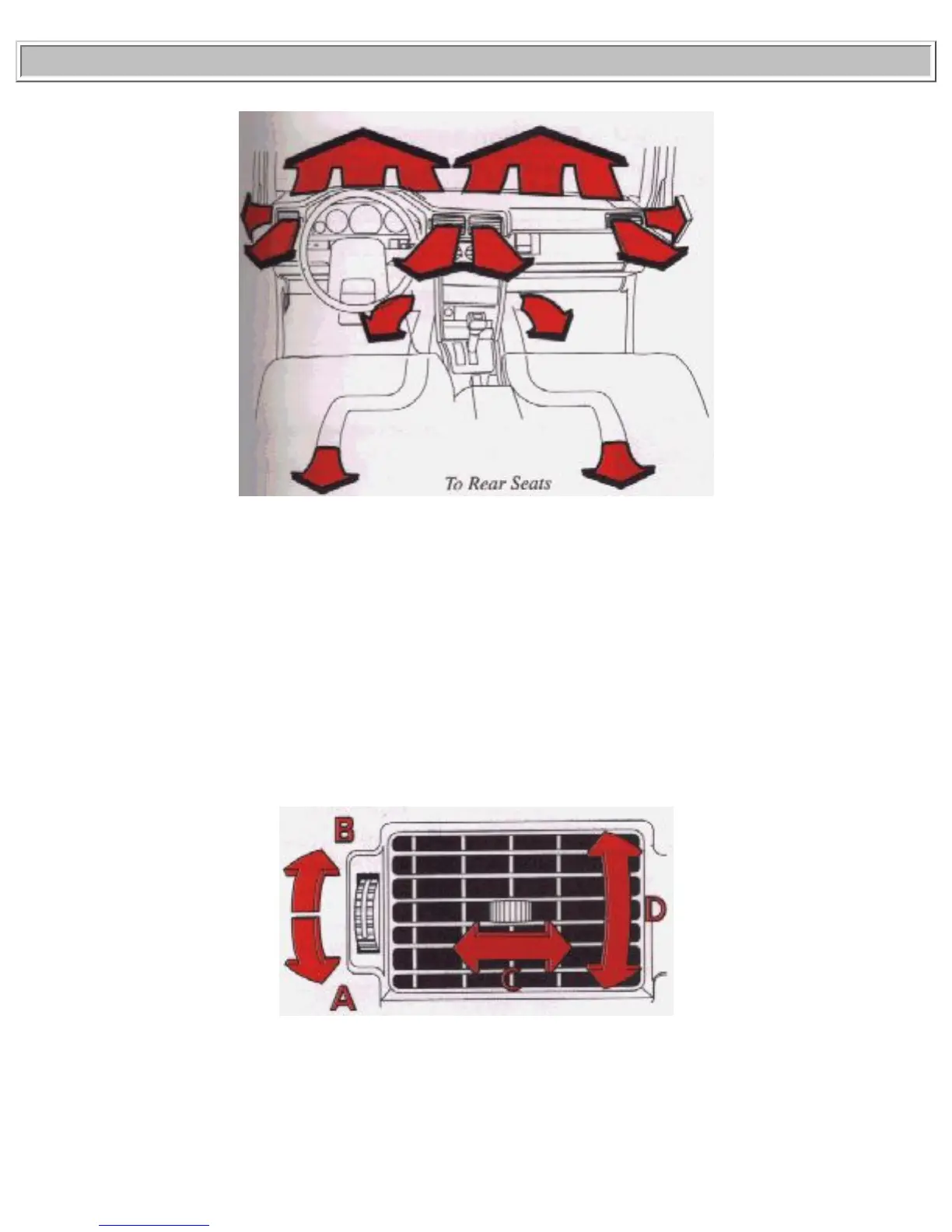

pg. 1:11 Heating, ventilation and air conditioning
ECC - Electronic Climate Control
This is an automatic system that also permits manual operation. The in-car temperature is automatically
monitored by two sensors located in the passenger compartment.
One sensor is located on the top of the dashboard where it can sense sunlight. The second sensor is
located on the courtesy light where it can sense the temperature in the center of the car. The following
pages describe how ECC works and how it can be used most effectively.
Air vents (dash)
A Open
B Closed
C Directing air flow horizontally
