3 Power Supply Relay "A" 50
4 Fuel System Relay, Ignition System Relay 50
5 ABS-unit 50
6 Air pump, Starter Solenoid, Horn 50
7 Electric Cooling Fan 50
8 Pos./parking Light Relay, Headlight Relay, Fog light relay 50
* Some of the equipment/systems listed may be available on certain models only and/or as optional
items only.

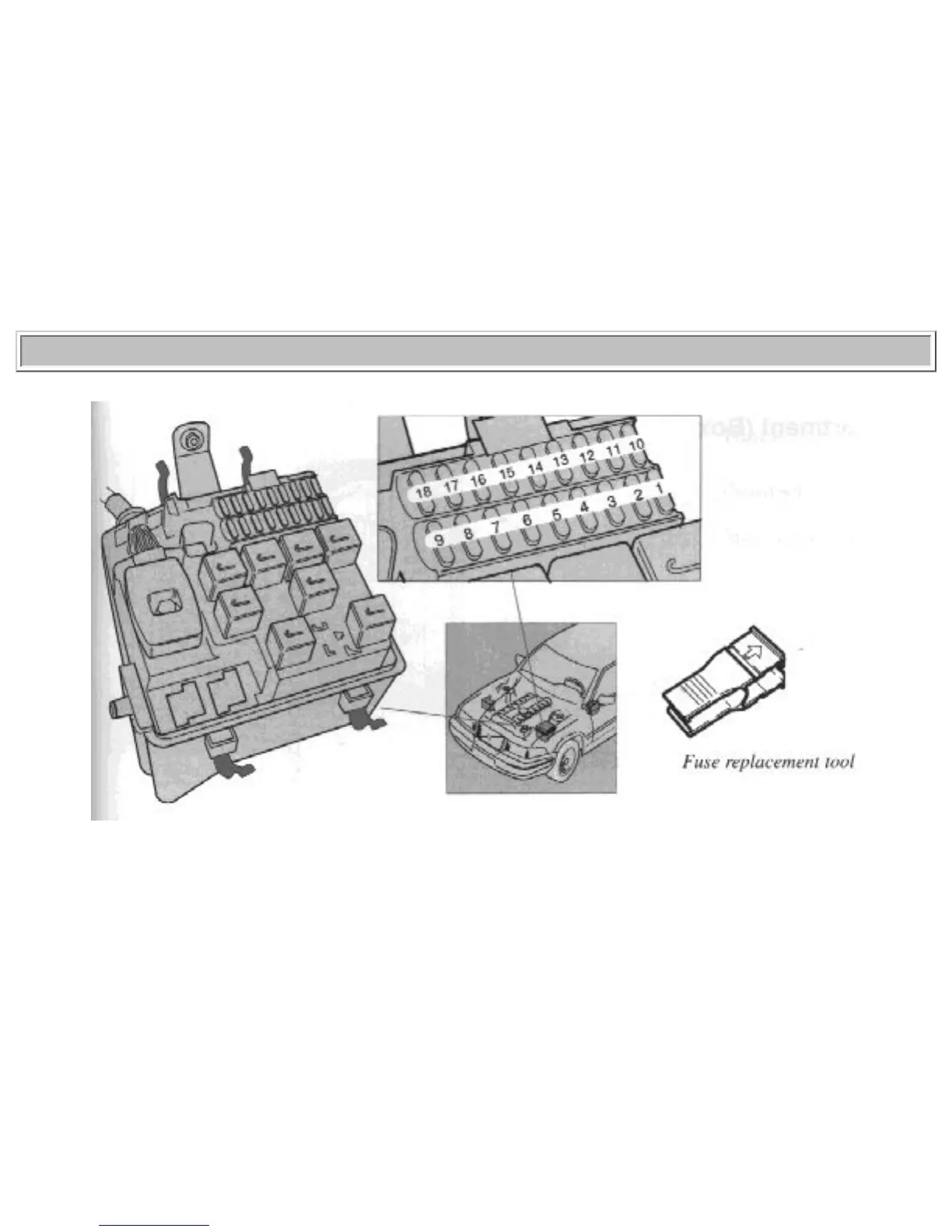

pg. 6:15 Fuses
Location* Amperage
1 Engine control module, Automatic transmission control module 5
2 AC relay 5
3 Relay, air pump, Heated oxygen sensor 15
4 Fuel pump 15
5 Fuel injection, Mass air flow (MAF) sensor, Idle air control system, Engine control module 15
6 Automatic transmission control module 15
7 Ignition coil 25
8 Foglights 25
9 Spare
10 Positioning/parking lights,left 15
11 Positioning/parking lights, right 15
