Product Identification Plates
From the picture and the text below it can be seen which product identification plates should be found on the machine.
When ordering spare parts and when making enquires per telephone or correspondence, the model designation and
Product Identification Number, (PIN) should be stated.
When applicable the data on the additional plate, "INCL. PARTS." should be stated.

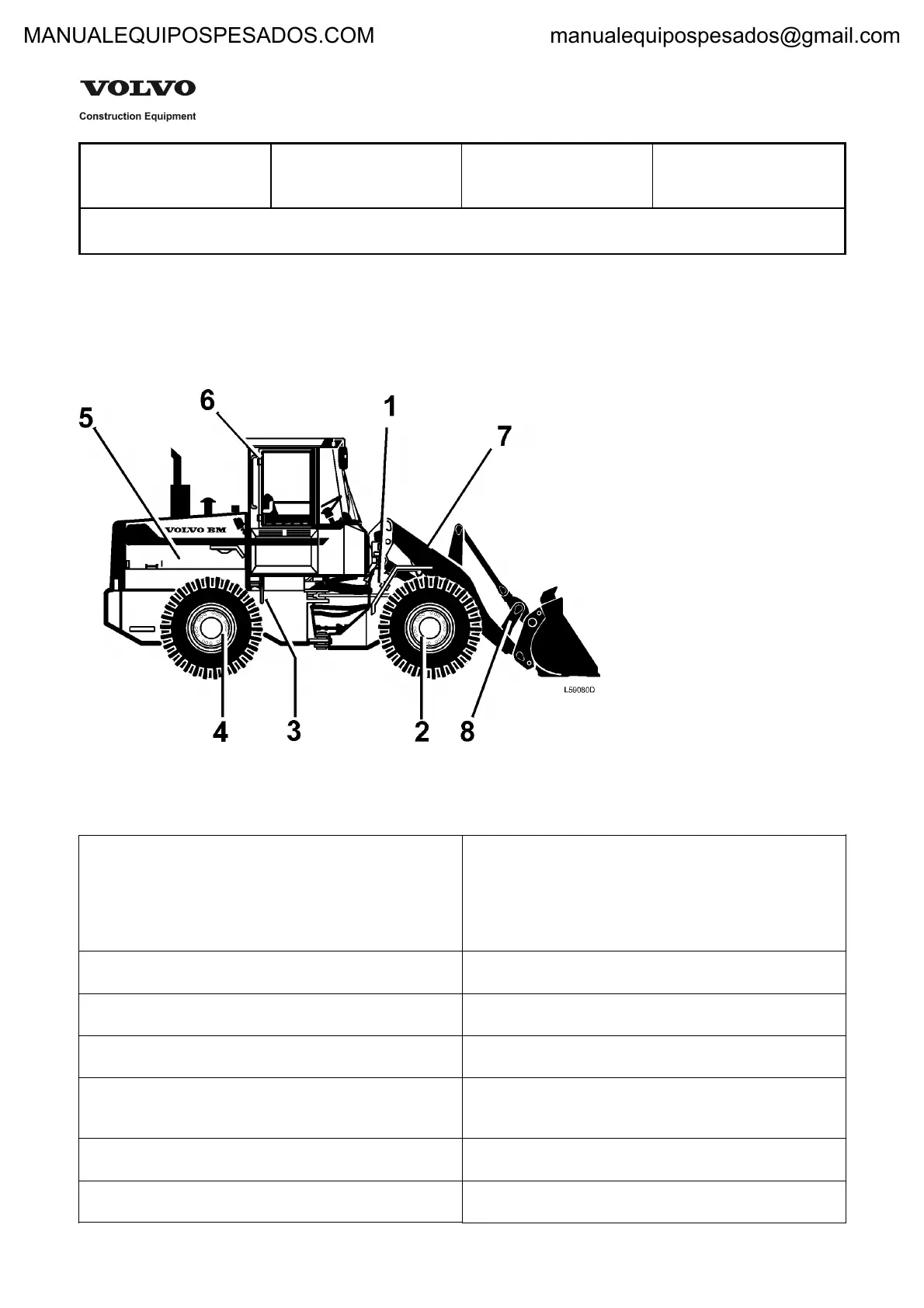

Figure 1
Product Identification Plates
1 Product plate with Product Identification Number, PIN for
the complete machine shows model designation, engine
manufacturer and serial number. The plate is fitted on the
left side of the front frame. Model designation and serial
number are also visibly stamped on the right side of the
front frame.
2 The front drive axle product and serial numbers are
positioned on the axle housing.
3 The transmission product and serial numbers are positioned
on the front part of the transmission.
4 The rear drive axle product and serial numbers are
positioned on the axle housing.
5 The engine type designation, part and serial numbers are
stamped on the right side of the cylinder block near the
upper edge.
6 The cab type, type approval and serial number are
positioned by the right roof member inside the cab.
7 The lifting frame product and serial numbers are positioned
on the outside of the left lifting arm.
