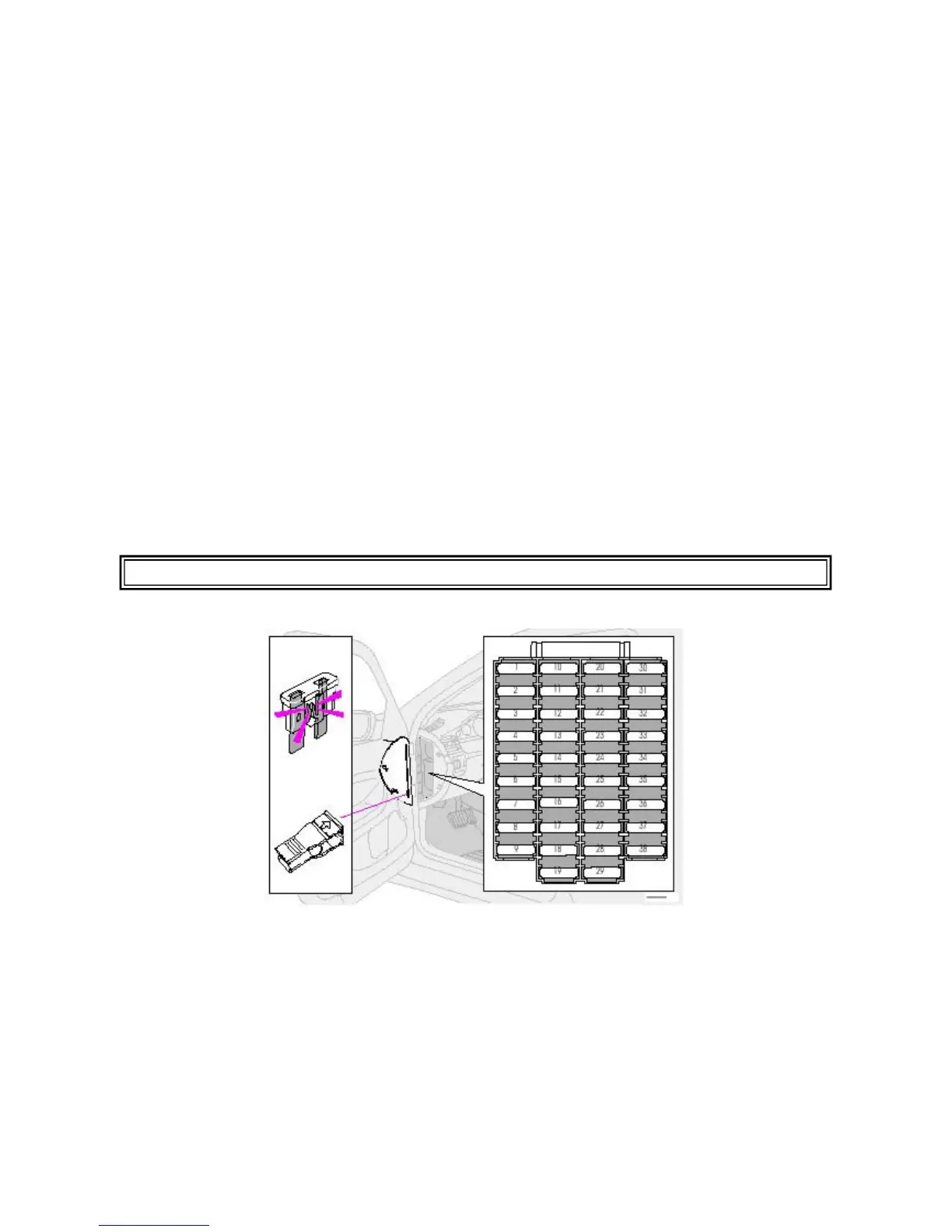

Fuse box in the passenger compartment
This fuse box is located at the far left side of the instrument panel. Extra fuses and the fuse removal
tool are also stored here. When replacing a blown fuse, be sure to replace it with a new one of the
same color and amperage
(written on the fuse).
6 Mass airflow sensor, engine control module, injectors
15A
7 Throttle module
10A
8 AC compressor, accelerator pedal position sensor, E-box fan 10A
9 Horn
15A
10 -
11 AC compressor, ignition coils 20A
12 Brake light switch 5A
13 Windshield wipers
25A
14 ABS/STC/DSTC
30A
15 -
16
Windshield washers, headlight wiper/washers (certain models)
15A
17 Low beam, right
10A
18 Low beam, left
10A
19 ABS/STC/DSTC 30A
20 High beam, left
15A
21 High beam, right
15A
22 Starter motor
25A
23 Engine control module 5A
24 -
pg. 102 Fuses in the passenger compartment
Location
Amperage
1 Low beam headlights 15A
2 High beam headlights 20A
3 Power driver's seat 30A
4 Power passenger's seat 30A
