This document provides installation instructions for the Volvo Trailer Module (TRM), an accessory designed to integrate trailer functionality with a Volvo vehicle. The TRM is essential for enabling proper communication and control of trailer lights and other electrical systems when a trailer is connected.

Function Description

The Trailer Module (TRM) serves as an interface between the vehicle's electrical system and a connected trailer. Its primary function is to manage the electrical signals for trailer lighting (e.g., brake lights, turn signals, running lights) and potentially other trailer-specific functions, ensuring they operate correctly and in sync with the vehicle. This module is crucial for safety and compliance with road regulations when towing. The installation process involves physically mounting the TRM within the vehicle's rear compartment, connecting it to existing wiring harnesses, and then downloading specific software to enable its functionality.

Important Technical Specifications

Instruction Number: 30764676
Version: 1.3
Part Number: 30744321
Fuse Requirement: A 40 A fuse is required for installation in position FA 11 of the RJB-A module.
Mounting Dimensions: The module is mounted with a specific offset of 80mm (3 1/8") from a reference point (front lug to the bracket for the parking assistance camera).
Electrical Connections: The TRM connects to a gray 2-pin and a green 5-pin pre-routed connector within the vehicle's wiring harness.
Software Integration: Requires software download via VIDA (Volvo's diagnostic and information system) to activate and configure the accessory's functions.

Usage Features

The TRM itself is not directly interacted with by the end-user. Its "usage features" are the functionalities it enables for the vehicle when towing a trailer:

Automatic Trailer Light Control: Ensures that the trailer's lights (brake, turn, running) mirror the vehicle's signals, providing essential visibility and safety.
Integrated System Operation: The TRM integrates the trailer's electrical system with the vehicle's onboard electronics, potentially allowing for features like trailer detection, fault monitoring for trailer lights, and adjustments to vehicle driving dynamics (if supported by the vehicle's software).
Enhanced Towing Safety: By providing reliable electrical connections and control, the TRM contributes to safer towing operations.

Maintenance Features

Similar to usage features, the TRM is a "fit and forget" component, meaning it requires minimal direct maintenance from the user. Maintenance aspects are primarily related to its installation and diagnostic capabilities:

Pre-Installation Cleaning: Surfaces where the TRM and Velcro strips are to be mounted must be cleaned with isopropanol and wiped dry to ensure secure adhesion. This is a critical step for long-term stability of the module.
Diagnostic Support (VIDA): The requirement for software download and configuration via VIDA implies that any future diagnostics, troubleshooting, or updates related to the trailer functionality would be performed using this system by a qualified Volvo technician. This allows for precise identification and resolution of any issues that may arise with the trailer's electrical interface.
Fuse Protection: The installation of a dedicated 40 A fuse protects the TRM and associated trailer electrical circuits from overcurrents, acting as a maintenance-related safety feature. If trailer electrical issues occur, checking this fuse would be a primary diagnostic step.
Secure Mounting: The use of Velcro strips for mounting, combined with specific measurement guidelines, ensures the module is securely positioned within the vehicle, minimizing the risk of physical damage from vibrations or movement during vehicle operation.
Electrical Disconnection Protocol: The instruction to turn the ignition key to position 0 and wait at least three minutes before disconnecting electrical equipment (including the TRM's connectors) is a crucial safety and maintenance protocol. This prevents potential damage to electronic components and ensures proper system shutdown before any electrical work is performed.

In summary, the Volvo Trailer Module (TRM) is a vital accessory for enabling safe and compliant trailer towing. Its robust integration with the vehicle's electrical and software systems ensures seamless operation of trailer lights and other functions, with maintenance primarily handled through professional diagnostic tools like VIDA.

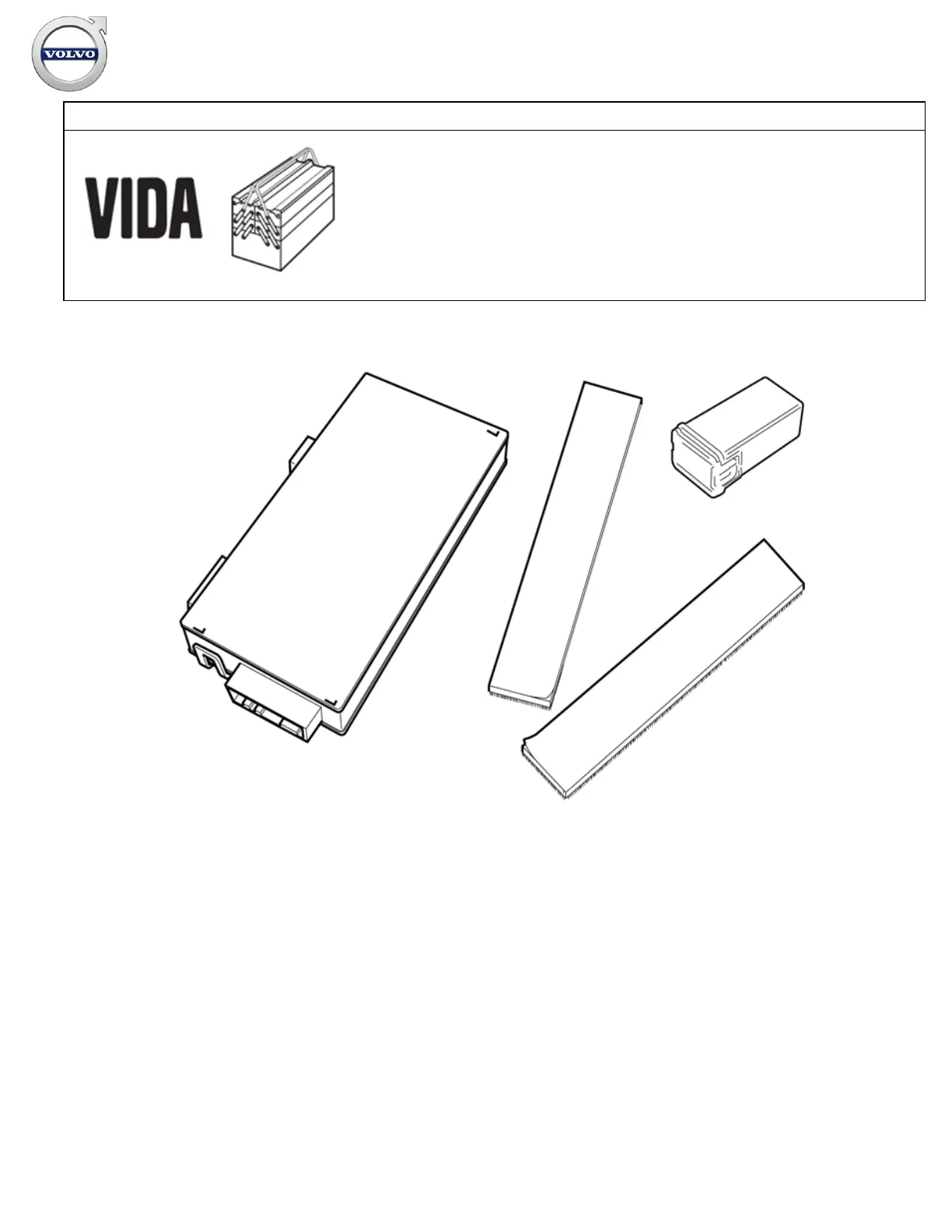

Volvo TRM - Equipment and Components
