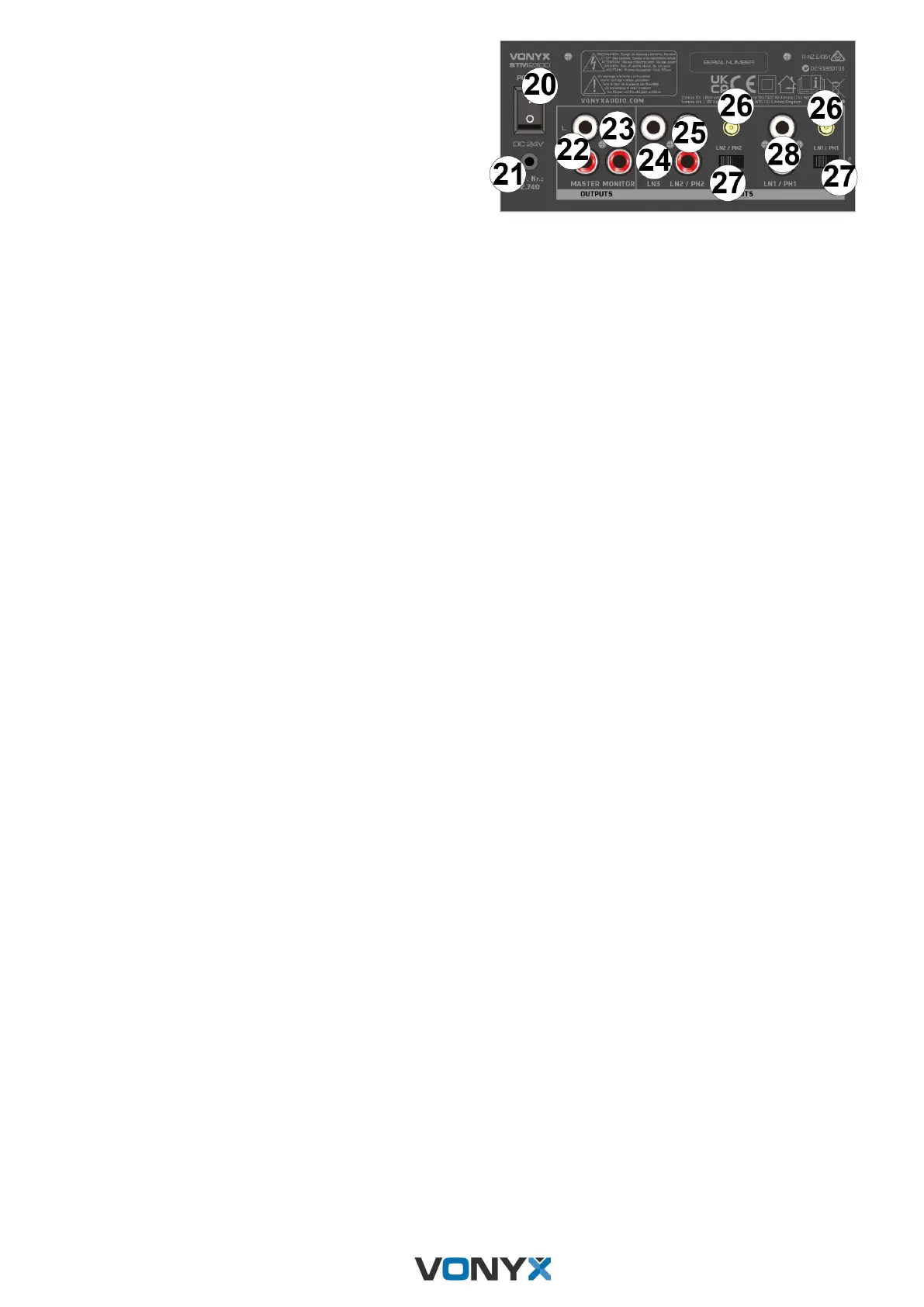

20. POWER SWITCH
Press to turn the device on/off.
21. DC 24V
Power adapter input.
22. MASTER OUTPUT
RCA connector output for connecting to an amplifier.
23. MONITOR OUTPUT
RCA connector output for connecting to a recording device.
The output level is not influenced by the master- and channel
volume controls.
24. LINE 3 INPUT
RCA connector input for connecting to CD/MP3 players.
25. LINE 2/PHONO 2
RCA connector input. Use line for connecting to CD/MP3 players, use phono for connecting to turntables.
26. GND
For connecting earth cables from the turntable.
27. INPUT SWITCH
Selector switch for choosing input device.
28. LINE 1/PHONO 1
RCA connector input. Use line for connecting to CD/MP3 players, use phono for connecting to turntables.
