RCVC 3000 - Red Circle Valve Controller
Installation, Operation, Maintenance Manual

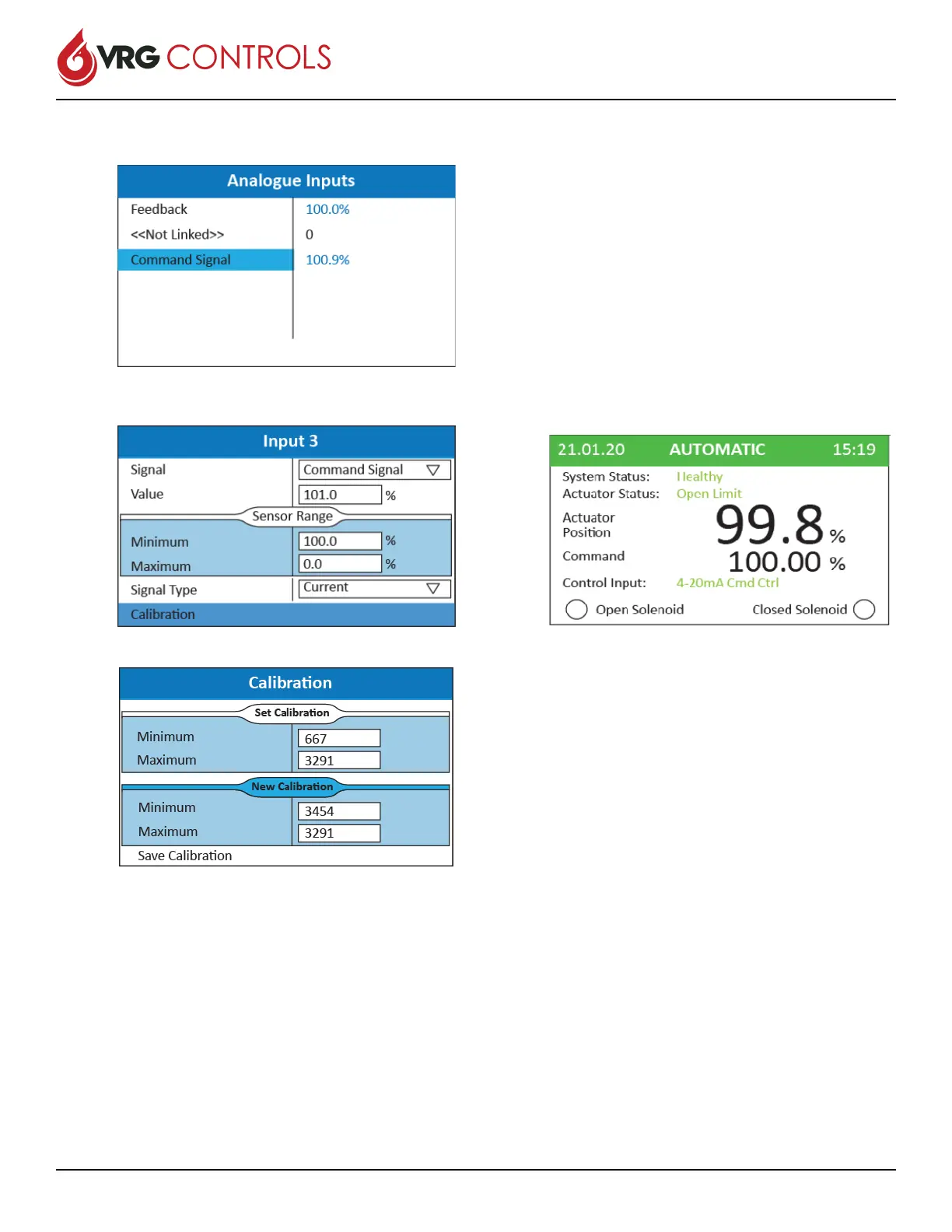

6. Select “Analogue Inputs” and SHORT PUSH to
enter.
7. Select “Command Signal” and SHORT PUSH to
enter.
8. Select “Calibration” and SHORT PUSH to enter.
9. Select “New Calibration” and SHORT PUSH to
enter.
10. Select “Minimum” and SHORT PUSH to enter.
11. Apply 4.0 mA Command Signal (MIN) and
SHORT PUSH to enter.
12. Select “Maximum” and SHORT PUSH to Enter.
13. Apply 20 mA Command Signal (MAX) and
SHORT PUSH to Enter.
14. Rotate Navigation Wheel to ESC Position to
reselect NEW CALIBRATION.
15. Rotate Navigation Wheel Toward (CCW) to
select SAVE CALIBRATION and SHORT PUSH
to enter.
16. Rotate Navigation Wheel to HOLD ESC Position
until menu stops at MANUAL on DISPLAY
HEADER.
17. Return Navigation Wheel to Neutral (Center)
Rotation Position. SHORT PUSH Navigation
Wheel on RCVC Head to exit MANUAL mode.
RCVC display Header should read AUTOMATIC.
#3 Feedback Signal Calibration
1. Apply 24 VDC Power Supply to RCVC
2. SHORT PUSH Navigation Wheel on RCVC Head
to enter Manual mode.
3. LONG PUSH Navigation Wheel on RCVC Head to
enter MENU mode.
4. Select “Application” and SHORT PUSH to enter.
5. Select “Physical I/O” and SHORT PUSH to enter.
6. Select “Analogue Inputs” and SHORT PUSH to
enter.
7. Select “Feedback” and SHORT PUSH to enter.
8. Select “Calibration” and SHORT PUSH to enter.
9. Select “New Calibration” and SHORT PUSH to
enter.
10. Select “Minimum” and SHORT PUSH to enter.
11. Use VMO or other method Stroke control valve
to VALVE OPEN (MIN) position and SHORT
