1x Handle
1x Lower Front Base
2x Large Washer
1x Rear Base
2x Rear Support
1x Upper Front Base
4x Wheel 1x-Cart
PARTS REFERENCE
PRE-ASSEMBLY
ASSEMBLY
1
STEP
2
STEP

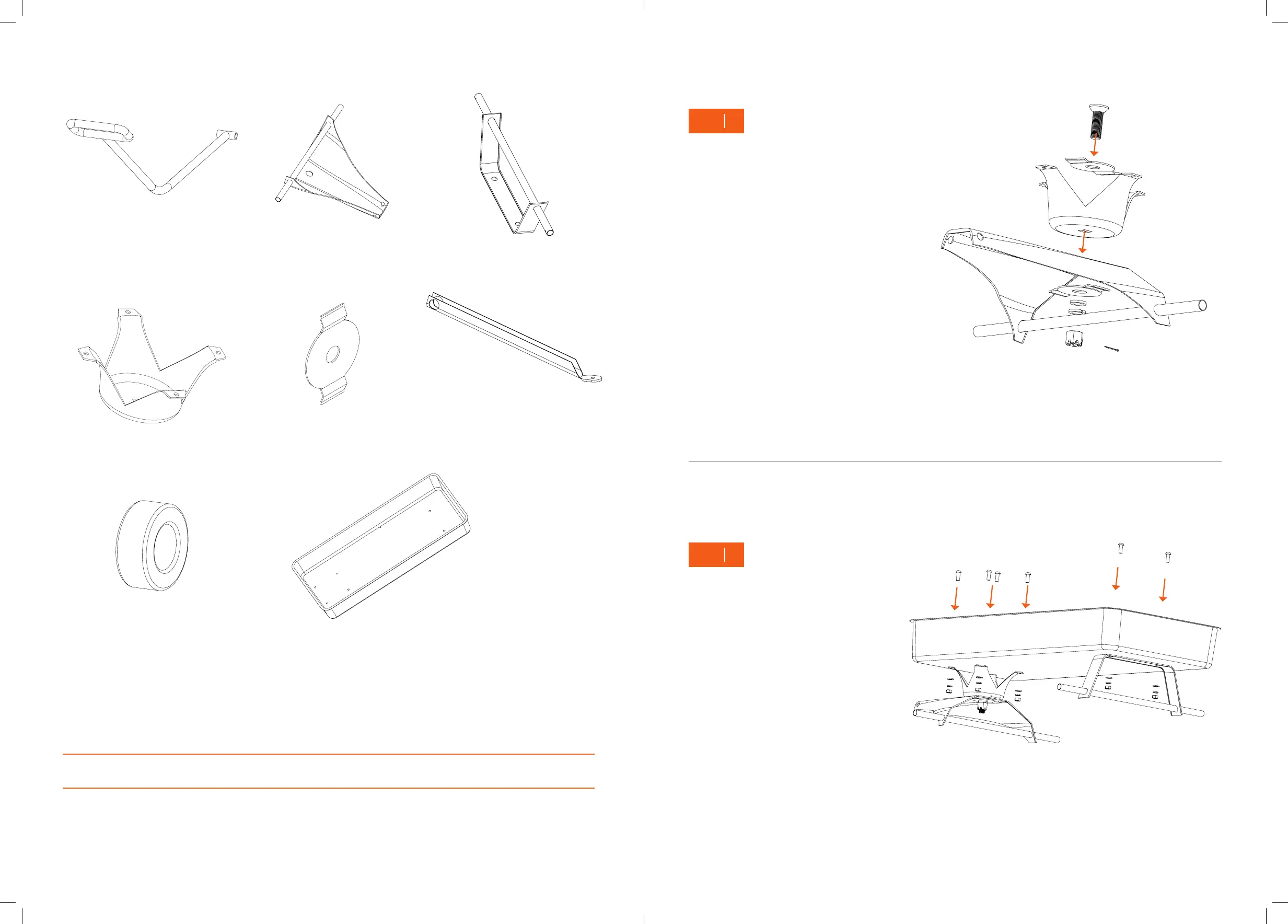

Position the parts as shown. Secure the
Upper Front Base and Lower Front Base
together, with Large Washers on either side.
Secure with a Large Nut, Bolt and pin, with 2
Small Washers between.
Secure the completed Front Base and Rear
Base to the underside of the Cart, with
Small Nuts and Bolts, with 2 Small Washers
between each.
Ensure that the Front Base is facing outwards.
ENSURE THAT AS YOU ASSEMBLE THE PRODUCT, YOU FIRMLY TIGHTEN ALL NUTS AND BOLTS, UNLESS DIRECTED.
