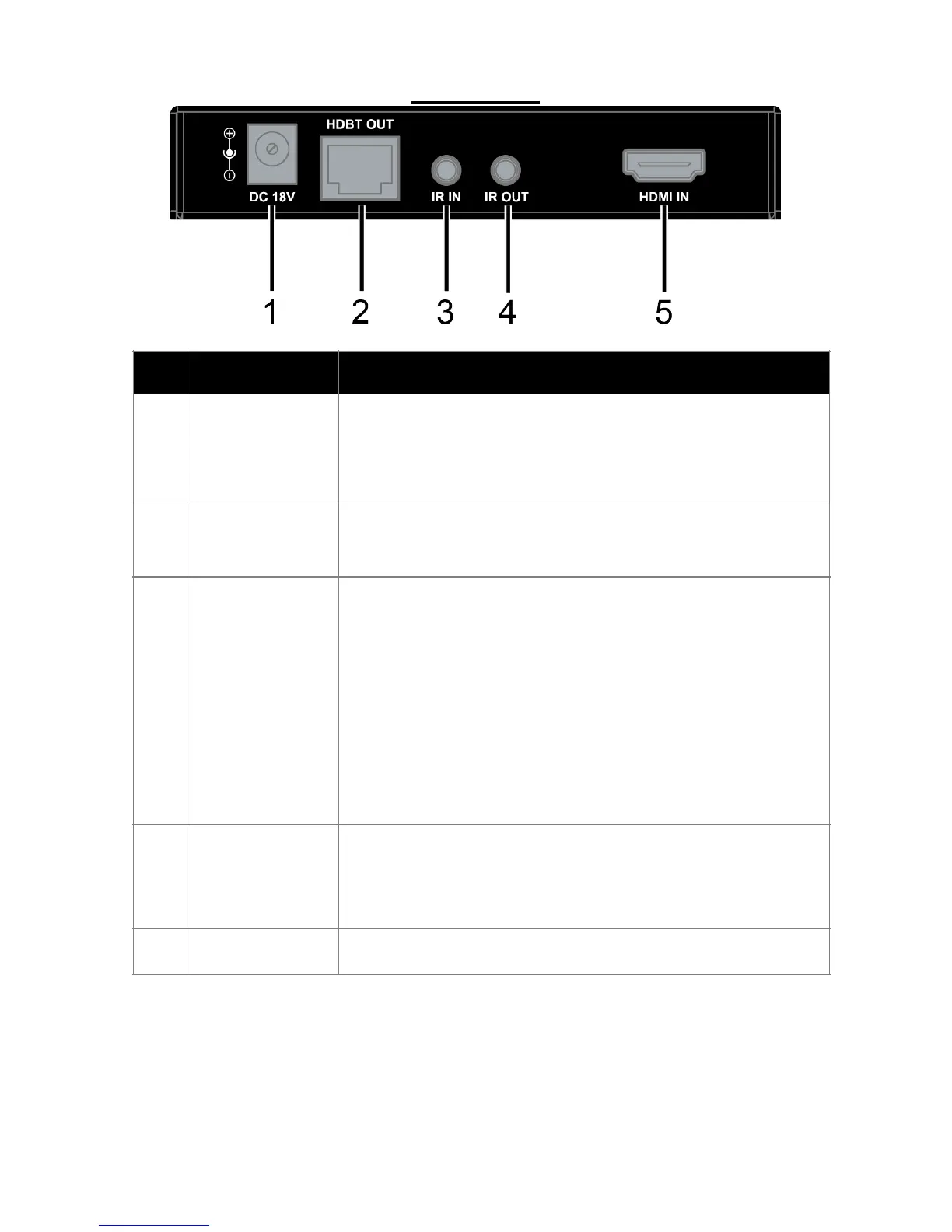

Rear Panel

ID.
Name
Description
1
Power
Connects to DC 18V 1A power adapter.
Note: Only one power adapter is needed
at transmitter or receiver side.
2
HDBT OUT
Connects to the receiver via Cat5e/6/6a/7
cable.
3
IR IN
Connects to an IR receiver cable. Secure
the IR receiver with adhesive.
Note: The IR receiver enabled angle and
distance:
Enabled Angel 0° 30°
(Horizontal) 15°
(Vertical)
Distance 8m(Max) 4.5m(Max) 3m(Max)
4
IR OUT
Connects to an IR emitter cable. Secure
the IR emitter on the IR receiving sensor of
display device with adhesive.
5
HDMI IN
Connects to a HDMI source device.
