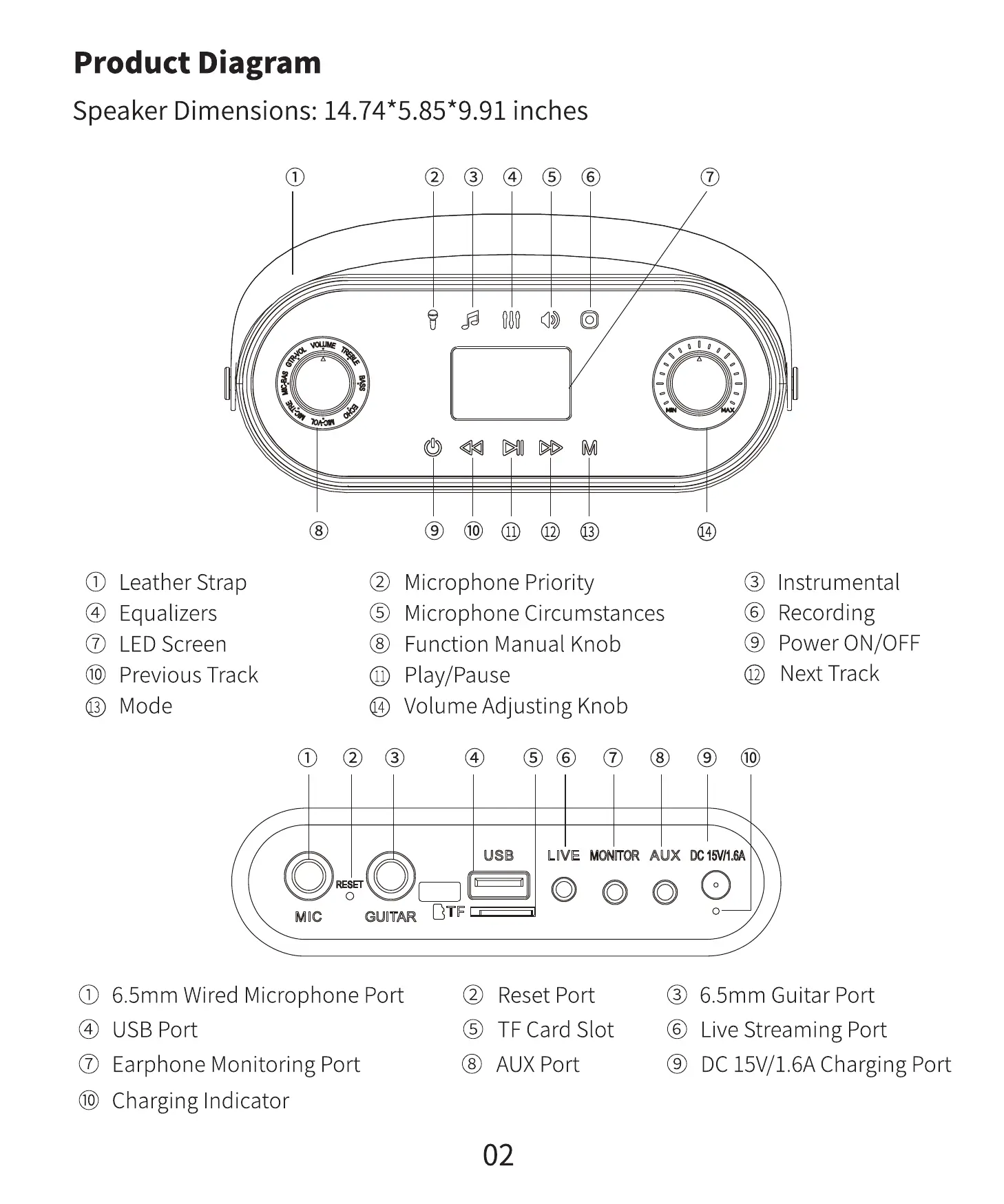

Product Diagram
Speaker Dimensions: 14.74*5.85*9.91 inches
000
O
O
Leather Strap
Equalizers
LED Screen
Previous Track
Mode
o
Microphone Priority
Microphone Circumstances
Function Manual Knob
Play/Pause
Volume Adjusting Knob
@ Instrumental
@ Recording
@ Power ON/OFF
O Next Track
USB LIVE MONITOR AUX DC15V1i.U
GUITAROTF
6.5mm Wired Microphone Port
@ USB Port
Earphone Monitoring Port
Charging Indicator
Reset Port
@ TFCard Slot
AUX Port
02
@ 6.5mm Guitar Port
@ Live Streaming Port
@ DC15V/l.6A Charging Port
