Wacker Neuson BS 60-4 Repair Manual

Rammer Repair Oil Injection (if equipped)
wc_tx001549gb.fm 125

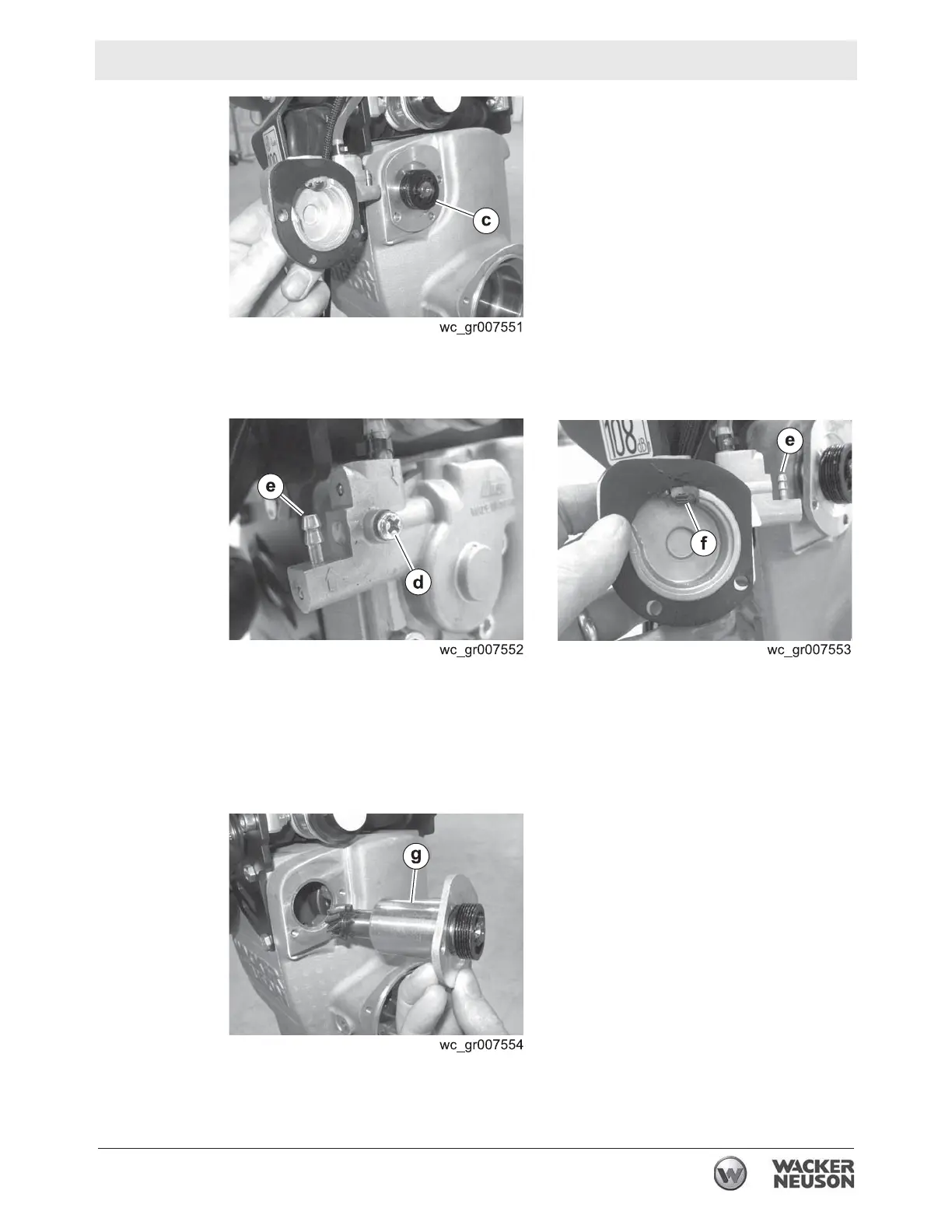

7.5.6 Inspect the gear (c) for damage. If the gear is damaged, replace it.
7.5.7 Open the bleed screw (d) until oil flows from the output nipple (e), then
close the bleed screw.
7.5.8 Rotate the small gear
(f) within the pump housing. Oil should flow out
of the output nipple (e) within 20 revolutions of the small gear. If no oil
flows out of the output nipple, replace the pump.
Note: The pump puts out a 0.8 mm (0.030 in.) droplet of oil every 7–9 sec-
onds of running at 4350 rpm.
7.5.9 Remove the cartridge assembly (g).
Result
The removal procedure is now complete.

Wacker Neuson BS 60-4 Specifications

General

Engine Manufacturer	Honda
Displacement	163 cm³
Operating Weight	66 kg
Percussion Rate	700 blows/min
Engine	Honda GX 160
Stroke	60 mm
Engine Type	4-stroke
Fuel Tank Capacity	3.0 liters
