Wacker Neuson BS 60-4 Repair Manual

Rammer Repair Ramming System
wc_tx001547gb.fm 93

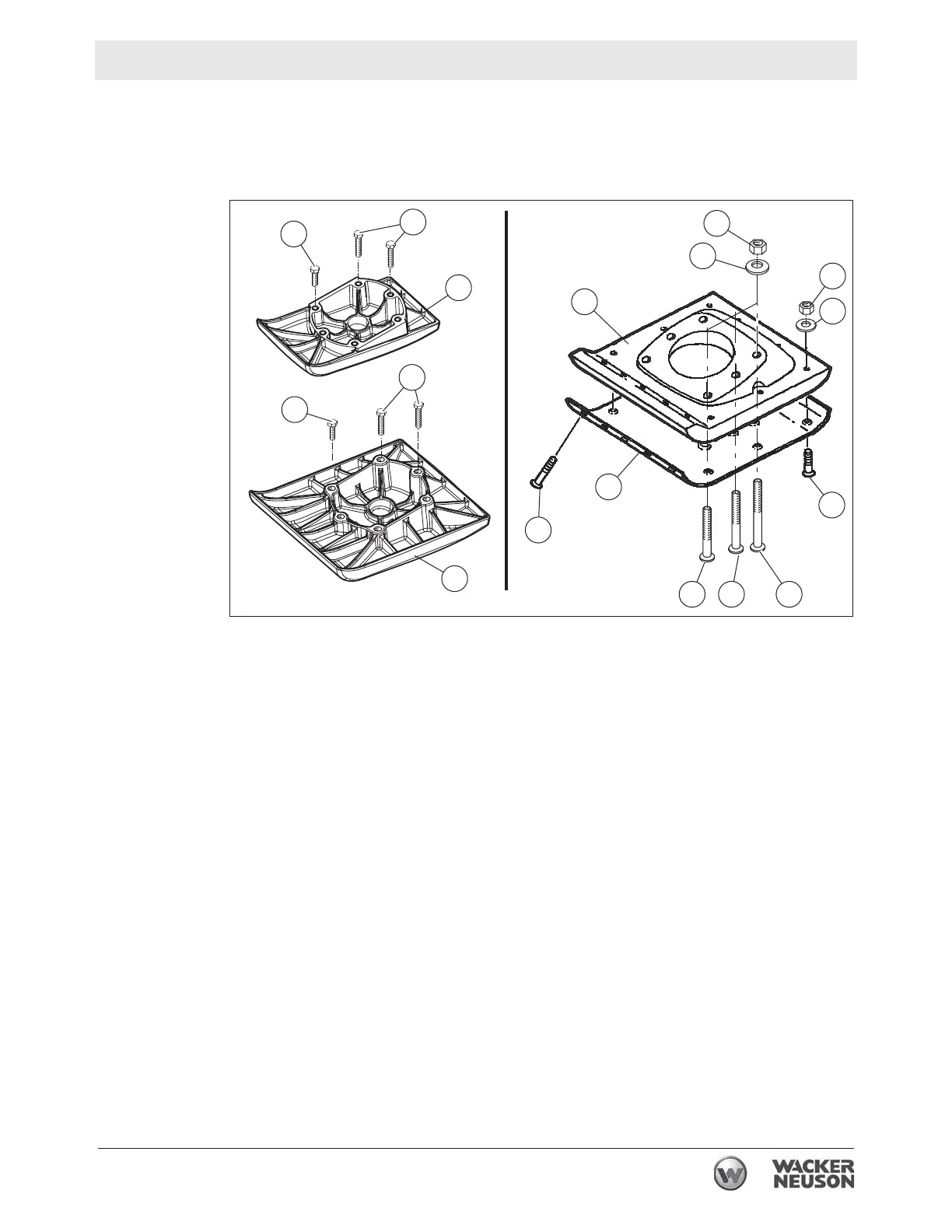

Installation
Follow the guidelines below when installing the shoes.
5.2.7 The plow bolts (m, n, and o) and (l and j) as well as hex bolts (a and b)
have different lengths. Use the longer of the bolts where needed.
5.2.8 When reusing bolts, clean the threads thoroughly before use.
5.2.9 Be sure notches of plow bolts seat in grooves of shoe.
5.2.10 Torques: (Recheck torques after first five hours of use.)
 hex bolt (a): 85.5 Nm (63 ft.lbs.)
 lock nuts (e): 79 Nm (58 ft.lbs.)
 lock nuts (l): 24 Nm (18 ft.lbs.)
wc_gr007519
a
d
e
k
l
f
g
i
j
c
c
b
a
b
m n o

Wacker Neuson BS 60-4 Specifications

General

Engine Manufacturer	Honda
Displacement	163 cm³
Operating Weight	66 kg
Percussion Rate	700 blows/min
Engine	Honda GX 160
Stroke	60 mm
Engine Type	4-stroke
Fuel Tank Capacity	3.0 liters
