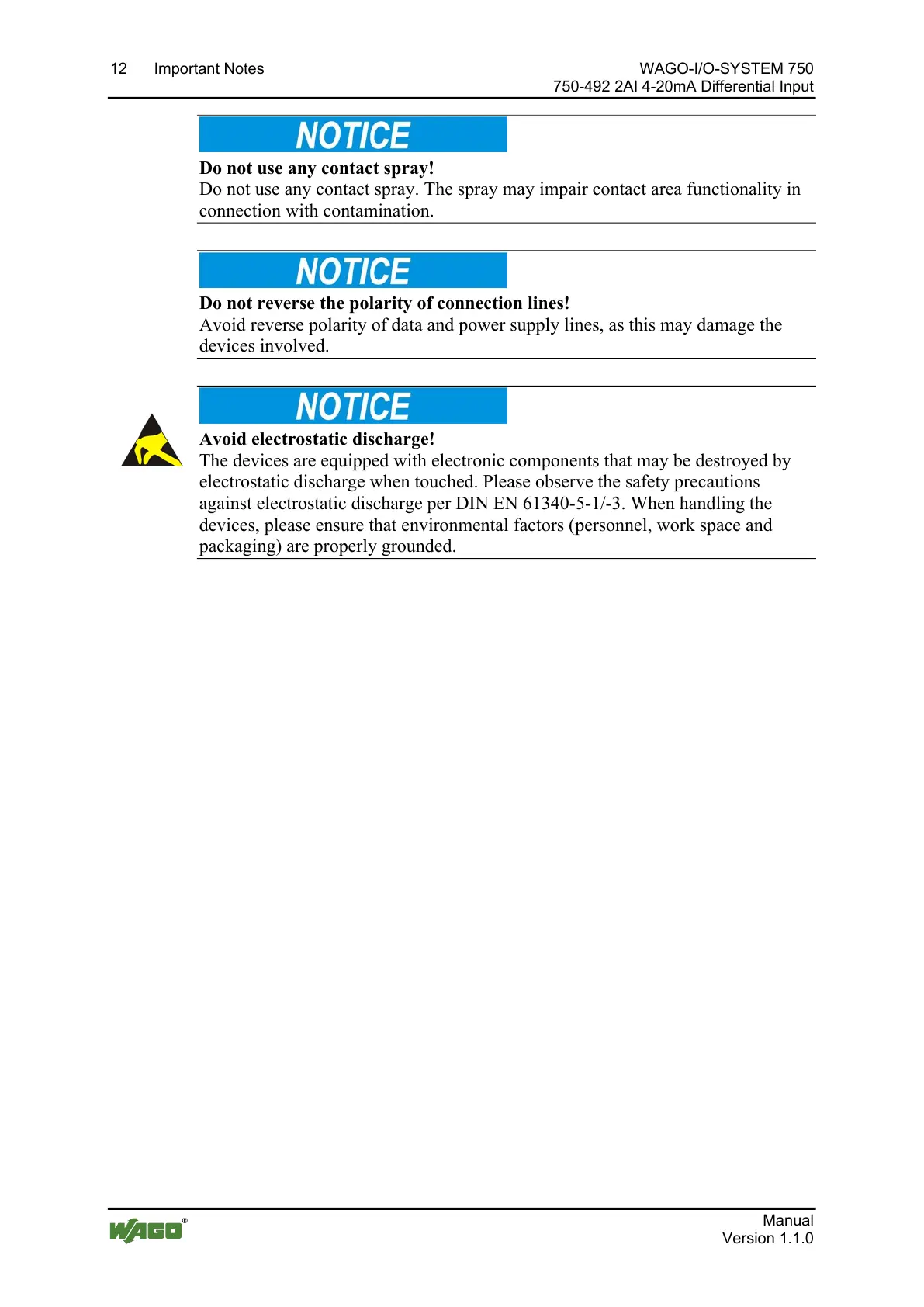

WAGO 750 Series Instruction Manual

12 Important Notes WAGO-I/O-SYSTEM 750
750-492 2AI 4-20mA Differential Input
Manual
Version 1.1.0
Do not use any contact spray!
Do not use any contact spray. The spray may impair contact area functionality in
connection with contamination.
Pos: 15.11.5 /Alle Ser ien (Allgemeine Dokumen te) (Allgemeine Module) /Wichtige Erläuter ungen/Sicherhei tshinweise/Achtun g/Achtung: Verpolun g vermeiden! @ 6\mod_1260184 045744_21.doc x @ 46767 @ @ 1
Do not reverse the polarity of connection lines!
Avoid reverse polarity of data and power supply lines, as this may damage the
devices involved.
Pos: 15.11.6 /Alle Ser ien (Allgemeine Dokumen te) (Allgemeine Module) /Wichtige Erläuter ungen/Sicherhei tshinweise/Achtun g/Achtung: Elektrosta tische Entladung ver meiden! @ 6\mod_1260181 364729_21.docx @ 46759 @ @ 1
Avoid electrostatic discharge!
The devices are equipped with electronic components that may be destroyed by
electrostatic discharge when touched. Please observe the safety precautions
against electrostatic discharge per DIN EN 61340-5-1/-3. When handling the
devices, please ensure that environmental factors (personnel, work space and
packaging) are properly grounded.
Pos: 16 /Dokumentation al lgemein/Glieder ungselemente/---Seitenwec hsel--- @ 3\mod_122110804 5078_0.docx @ 21810 @ @ 1
All manuals and user guides at all-guides.com

WAGO 750 Series Specifications

General

Protection Class	IP20
Bus Couplers	PROFIBUS, CANopen, Ethernet
Modules	Digital Input, Digital Output, Analog Input, Analog Output
Mounting	DIN rail mounting
Voltage Supply	24 V DC (typical)
Communication Protocol	Depends on the bus coupler (e.g., PROFIBUS, CANopen, DeviceNet, Ethernet)
Digital Input Channels	Varies by module (e.g., 8, 16 channels)
Digital Output Channels	Varies by module (e.g., 8, 16 channels)
Analog Input Channels	Varies by module (e.g., 2, 4, 8 channels)
Analog Output Channels	1, 2, 4 channels (depending on module)
Width	12 mm, 24 mm (typical module widths)
Number of Channels	Varies by module type
Current Consumption per Channel	Varies by module type
