242 Run-time System CODESYS 2.3 WAGO I/O SYSTEM 750 XTR
750-8202/040-000 PFC200 2ETH RS XTR
Manual
Version 1.2.0, valid from FW Version 03.01.07(13)
5. In this “New component” window create a new program function block. In
the example shown here, the new function block “PLC_PRG” is created in
the “ST” programming language.
6. Click on [OK] to create the project. The programming interface opens.

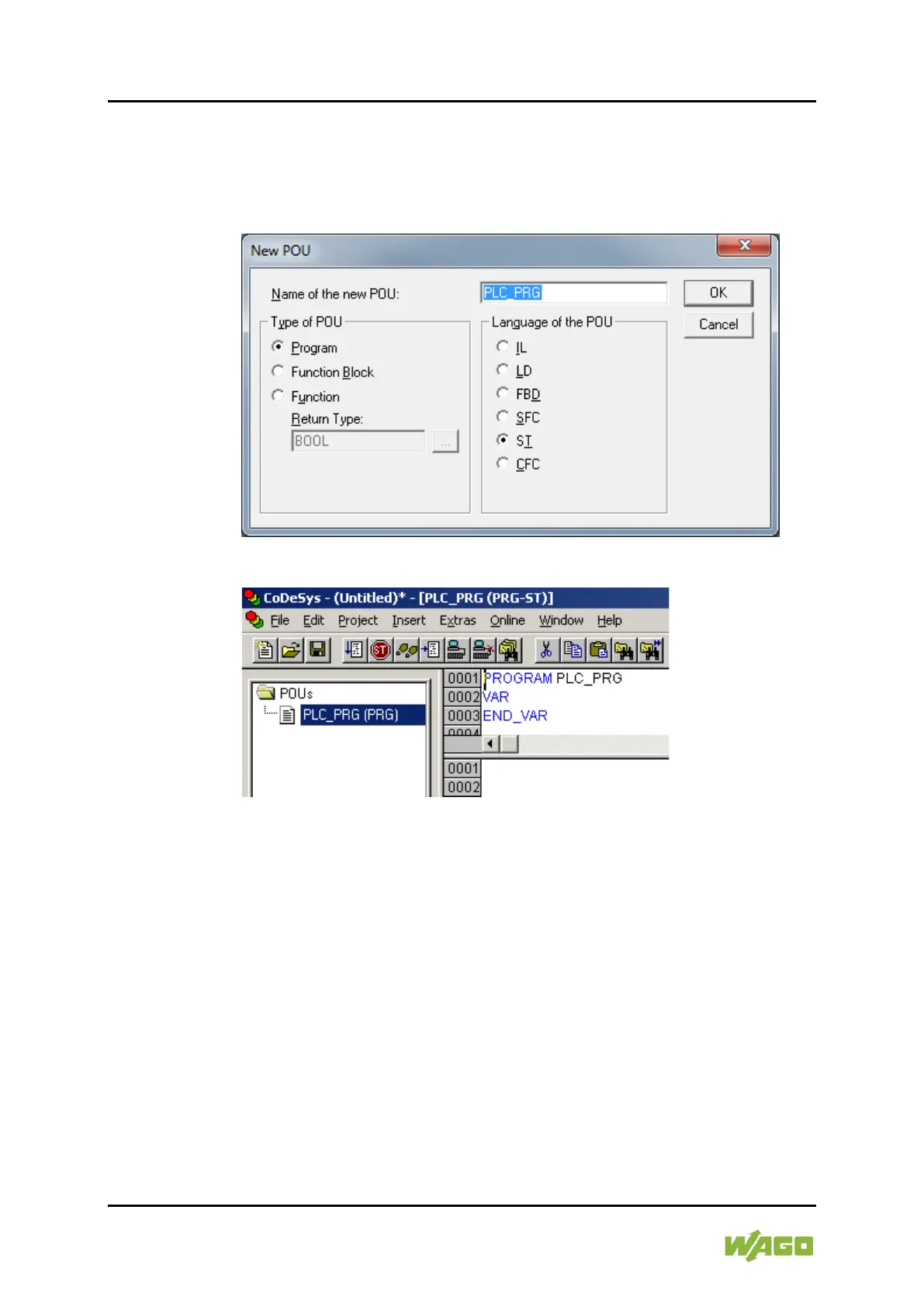

Figure 54: Creating a New Function Block
Figure 55: Programming Interface With the PLC_PRG Program Module

WAGO PFC200 2ETH RS XTR Specifications

General

Processor	ARM Cortex-A8
Clock Speed	600 MHz
RAM	256 MB
Ethernet Ports	2
Protection Class	IP20
Power Supply	24 V DC
Serial Ports	1 (RS-232/RS-485)
Operating Temperature	-40°C to +70°C
Programming Languages	IEC 61131-3
Certifications	UL
