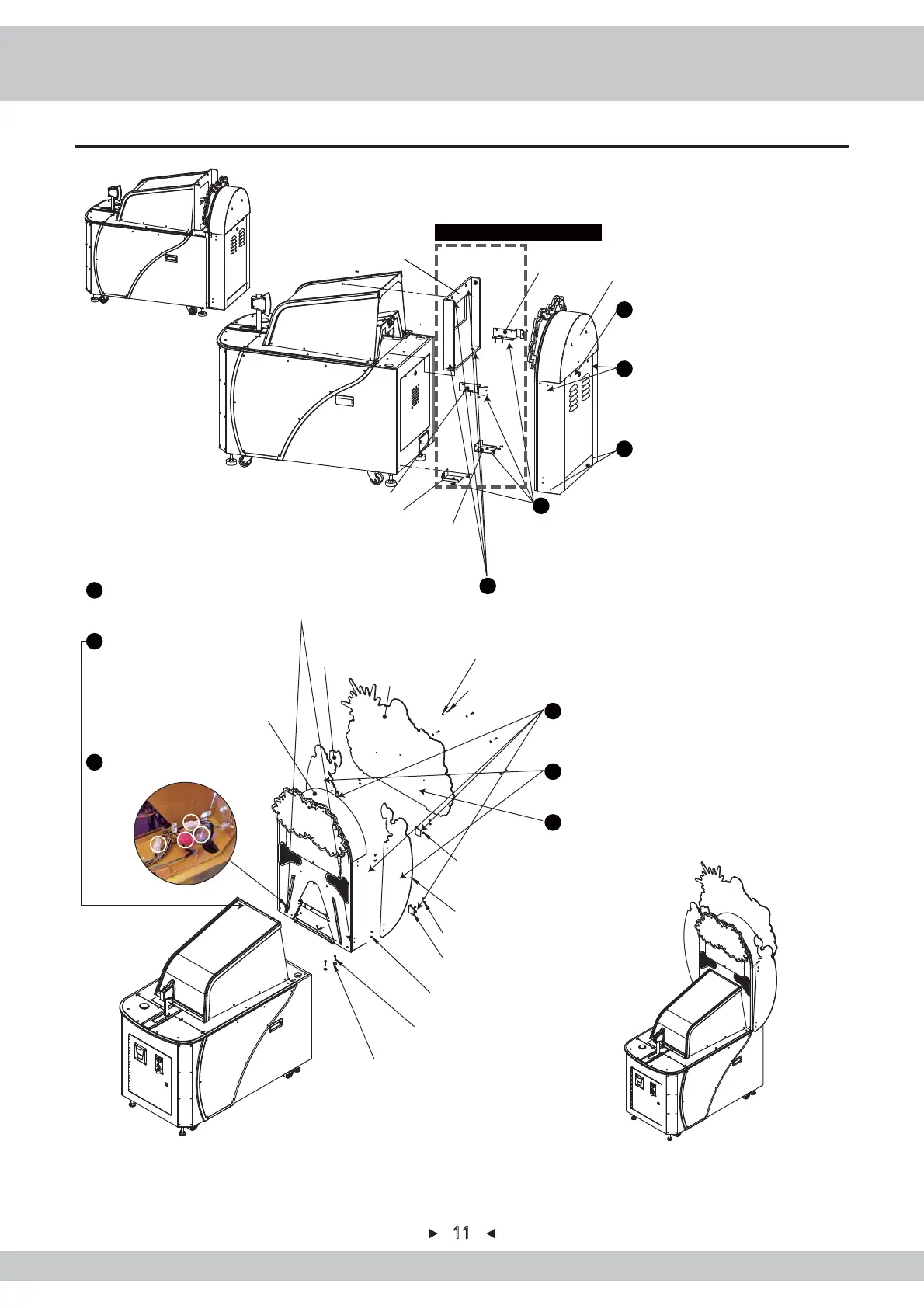

,QVWUXFWLRQVIRULQVWDOODWLRQ
Package transportation parts
General assembly
of stand
Hex domed cap nut M4
1 Remove 2 inner hexagonal screws
M4*20 on the rear upper door, and
open the rear upper door.
3 Remove 2 hexagonal flange nuts
M5, and remove the general assembly
of stand.
4 Remove screws of package transportation iron “1”,
package transportation iron “2”, package transportation
iron “3”, and package transportation iron “4” (4 cross
large flat head screws M4*12, and 4 cross large flat
head screws M6*30).
5 Remove 2 hexagon socket large truss head screws M6*30
and 2 hexagon socket large truss head screws M4*12 of the
package transportation protection wood, and remove the
protection wood.
6 Install the general assembly of stand with cross round
head three- combinations screws M6*30 and flat
VSDFHUVijijIODWVSDFHUV
7 Install the main stand assembly
and acrylic cover hood 2 inner
hexagonal screws M4*12.
9 Use inner hexagonal screw M4*8 screw to
install 4 exhibition board bracket right bottom
on the stand respectively.
10 Use hex socket screws M4*12 and cap nuts
to assemble the left side of POP board and
the right side of POP board respectively.
11 Install the POP board with hex socket
VFUHZV0DQGWKHIODWVSDFHUVijij
2 Remove 2 hexagon socket large
truss head screws M4*12 of the
package transportation iron “3” and
the package transportation iron “4” for
fixing general assembly of stand.
flat spacer ij6*ij20*2
The three combination screw
round head M6*30
Exhibition board bracket
right bottom
Hexagon socket large
truss head screw M4*12
Hexagon socket large
truss head screw M4*8
POP board right side
Hexagon socket large
truss head screw M4*16
Flat spacersij4*ij10*1
Package transportation iron 2
Package transportation iron 1
Package transportation iron 4
Package transportation iron 3
Package transportation
protection wood
Check the unit after installation.
General assembly
of stand
POP board
POP board left side
Connect 4 terminals and install
the rear door.
To Next Page
