Walker MB (18 HP) - Page 29

Operating Instructions
27
THROTTLE
BLADE CLUTCH
(PTO)
PARKING
BRAKE
LEFT WHEEL
STEERING LEVER
Forward Position
(No Control Change)
RIGHT WHEEL
STEERING LEVER
FORWARD SPEED
CONTROL LEVER (FSC)
Full Forward
Ground Speed
Position
Intermediate
Ground Speed
Position
Neutral-Park
Position
Idle
Position
ON Position
OFF Position
CHOKE
Disengaged
Position
Fast
Throttle
Position
Engaged
Position

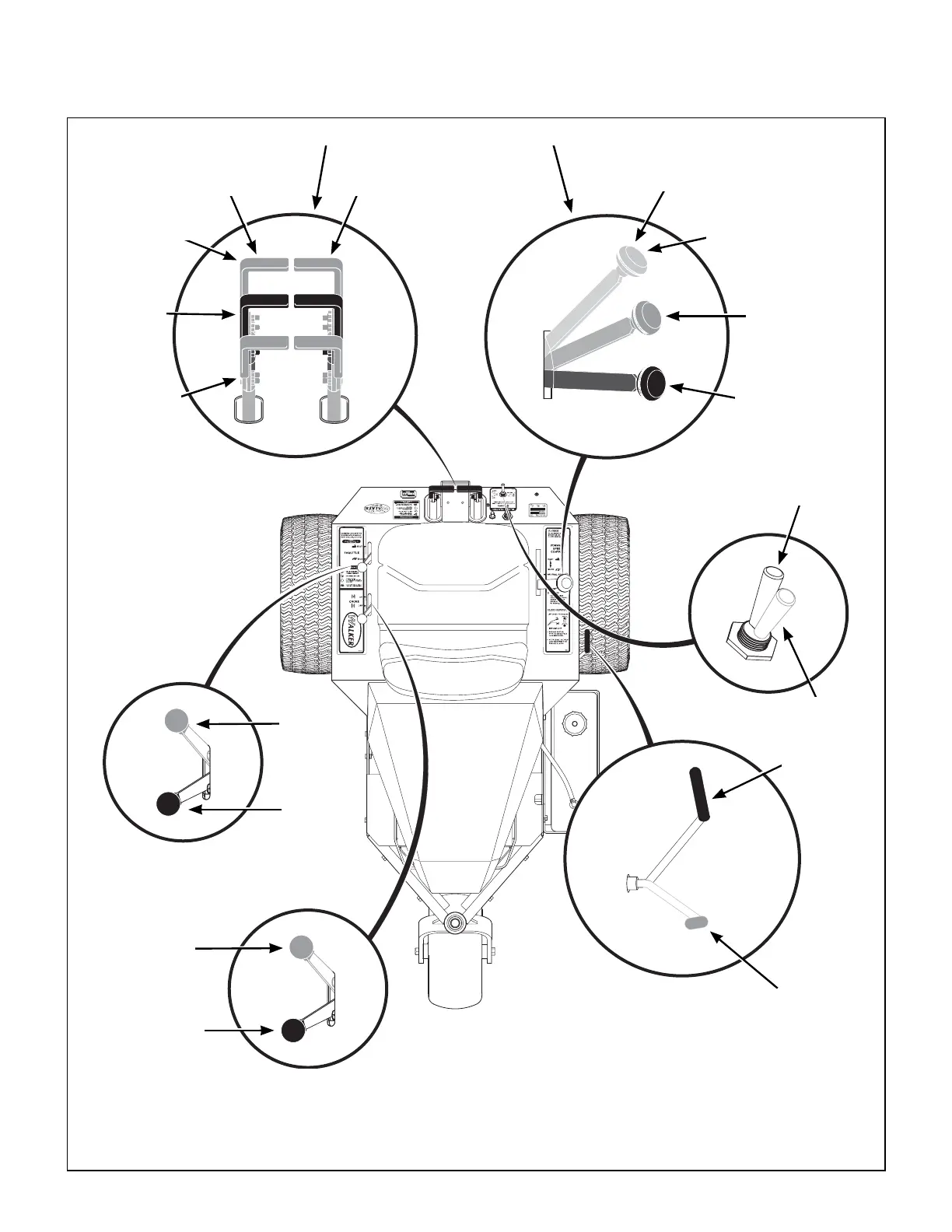

Operating Controls (Top View from Drivers Point of View)
The Forward Speed Control also Establishes the Neutral-Park Position of the Steering Levers
Disengaged
Position
Engaged
Position
Neutral-Park
Position
Reverse Drive
Wheel Motion
Position
