Operating Instructions
49

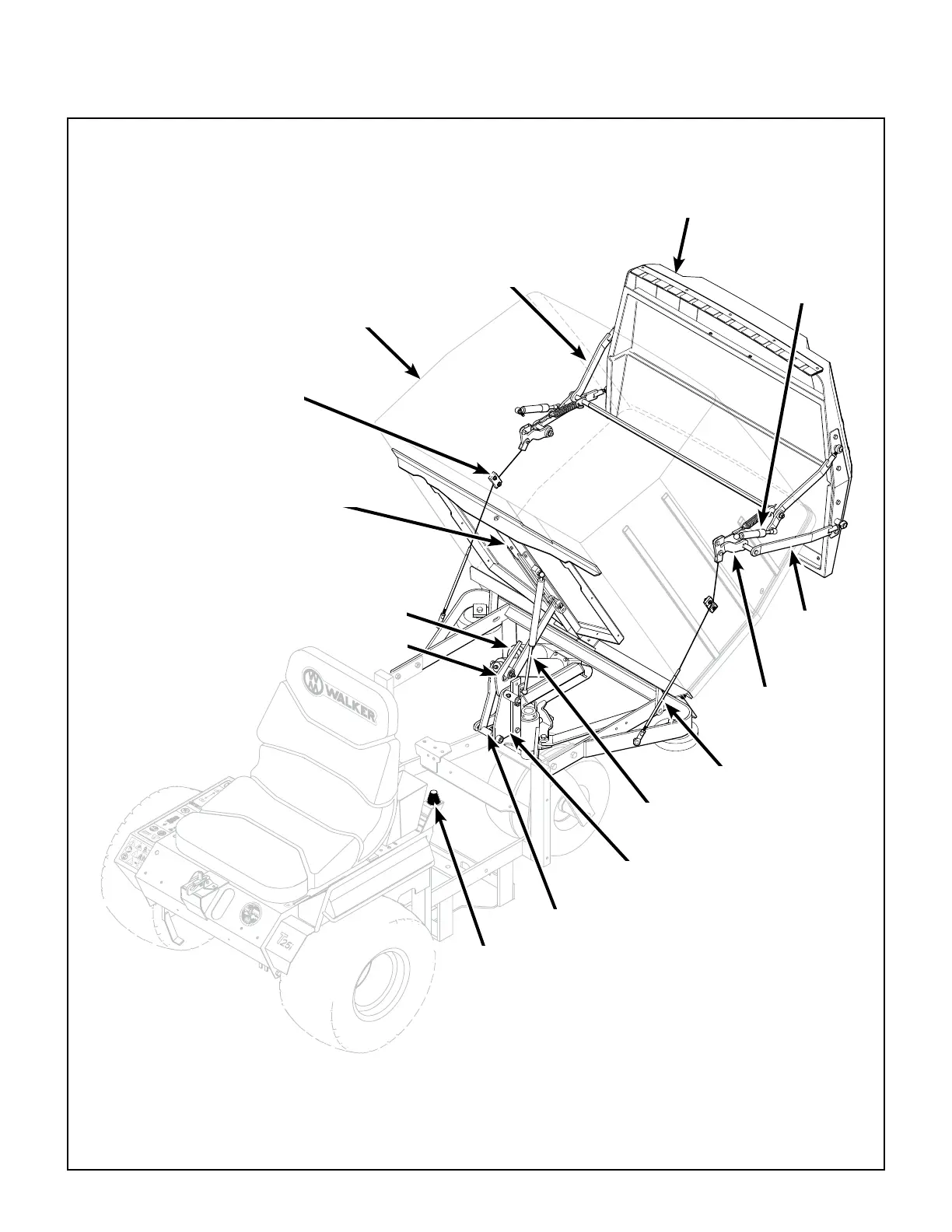

Power Dump Components
1.
2.
Catcher
Door
Grass Catcher
Upper
Arm
Cable
Guide
Catcher Door
Gas Spring
Lower
Arm
Door Arm
Actuator
Gas
Spring
Actuator Mount
Assembly
Dog Leg
Assembly
Rubber
Bumper
Cable Assembly
Lift Channel
Fork
Power Dump
Ram Actuator
52
54
Table of Contents
Default Chapter
3
Table of Contents
3
General Information
5
Highlighted Information
5
Glossary
5
Identifying Number Locations
5
Engine Serial Number Location
6
Servicing of Engine and Drivetrain Components
6
Specifications
7
Engine
7
Electrical System
7
Transmission
7
Blade Drive
8
Tire Size
8
Tire Pressure
8
Drive Belts
8
Seat
8
Frame/Body Construction
8
Ghs System
8
Mower Deck
9
DIMENSIONS (Tractor and Mower)
9
Component Identification
10
Safety Instructions
13
Before Operating
13
Operating
15
Maintenance
17
Safety, Control
18
And Instruction Decals
18
Assembly Instructions
22
Setup Instructions
22
Tire Installation (Tractor)
22
Battery Service
22
Wet Battery Service
22
Dry Battery Service
23
Battery Charging
23
Battery Installation
24
Mower Deck Assembly
24
Deck Caster Wheels Installation
24
Deck Discharge Chute Installation
25
Deck Discharge Deflector Shield Installation
25
PTO Shaft Guard Installation
25
Tilt-Up Roller Wheel Installation
25
Mower Deck Installation on Tractor
26
Deck Installation
26
Deck Leveling
28
Preoperating Checklist
29
Operating Instructions
31
Control Identification, Location, and Function
31
Operating Controls
31
Engine Throttle
31
Forward Speed Control (FSC)
32
Steering Levers
32
Blade Clutch (PTO)
32
Parking Brake
32
Front Body Latch Release
34
Transmission Lockout Levers
34
Instrument Panel
35
Hourmeter
35
Voltmeter
36
Oil Pressure Warning Light
36
Over Temperature Warning Light
36
Engine Service Light
36
Ignition Switch
37
Light Switch (for Optional Lights)
37
Warning Horn
37
Circuit Breaker
37
Starting the Engine
37
Adjusting Ground Speed and Steering
38
Engaging the Blade Drive
40
Stopping the Machine
41
Adjusting Cutting Height
42
Transmission Lockout
42
Recommendations for Mowing
43
Recommendations for Tilt-Up Deck Operation/Transport
45
Grass Handling System (Ghs)
46
General Information
47
Clogging Checklist
48
Using the Tilt-Up Deck
49
Using the GHS Catcher
49
Powerfil
49
Full" Signal Horn
49
Cleaning the GHS Exhaust Screen
49
Dumping the Catcher
50
Tailgate Dumping
50
Using the Dump Bag
50
Power Dump Option
51
Hi-Dump ® Option
52
Maintenance Instructions
55
Maintenance Schedule Chart
55
Important Tips for Care of the Kohler Engine
56
Fuel System
56
Starting/Stopping
56
Cooling System
56
Air Cleaner System
56
Oil
56
Lubrication
57
Engine Oil
57
Engine Break-In Oil
57
Checking Engine Crankcase Oil Level
57
Changing Engine Crankcase Oil/Oil Filter
58
Mower Deck Gearbox Lubrication
58
DS52 or DS62 Mower Deck Lubrication
59
Tractor PTO Gearbox Lubrication
60
Checking Gearbox Oil Level
60
Changing Gearbox Oil
60
Gear Axle Lubrication
60
Hydrostatic Transmission Fluid
61
Checking Hydrostatic Transmission Fluid Level
61
Grease Fitting and Oil Point Lubrication
61
Cleaning
64
Engine Air Cleaner System
64
Turbine Precleaner
64
Donaldson Radialseal™ Air Cleaner
65
Engine Cooling System
67
Cooling Air Intake System
67
Cylinder Head Cooling Fins
67
Grass Buildup in Mower Deck Housing
68
GHS Blower
69
GHS Exhaust Screen
69
Hydrostatic Transmission Cooling Fins
70
Checking/Servicing
70
Security of Air Filtration Components
70
Battery
71
Electrolyte Level
71
Cleaning the Terminals
71
Charging the Battery
71
Tire Pressure
72
Wheel Bolt Torque
72
Sharpen Mower Blades
72
Drive Belts
73
Mower Deck Gearbox Oil Seals
73
Spark Plugs
73
Ignition Wires
73
Fuel Lines and Clamps
73
Engine Starter
73
Blade Brake Action
74
PTO U-Joints
74
Safety Switch System
74
Forward Speed Control Friction Lock
74
Replacing/Repairing
75
Drive Belts
75
Engine PTO Drive Belt
76
Jackshaft Drive Belt
77
GHS Blower Drive Belt
78
Hydrostatic Ground Drive Belt
79
Fuel Filter
80
Blade Overload Shear Bolts
81
PTO Shear Pin (if Equipped)
81
Mower Blades
82
Adjustments
83
Steering Handles
83
Tilt-Up Deck Adjustable Stop
83
GHS Signal Horn Adjustment (When Horn Sounds at Wrong Time)
84
