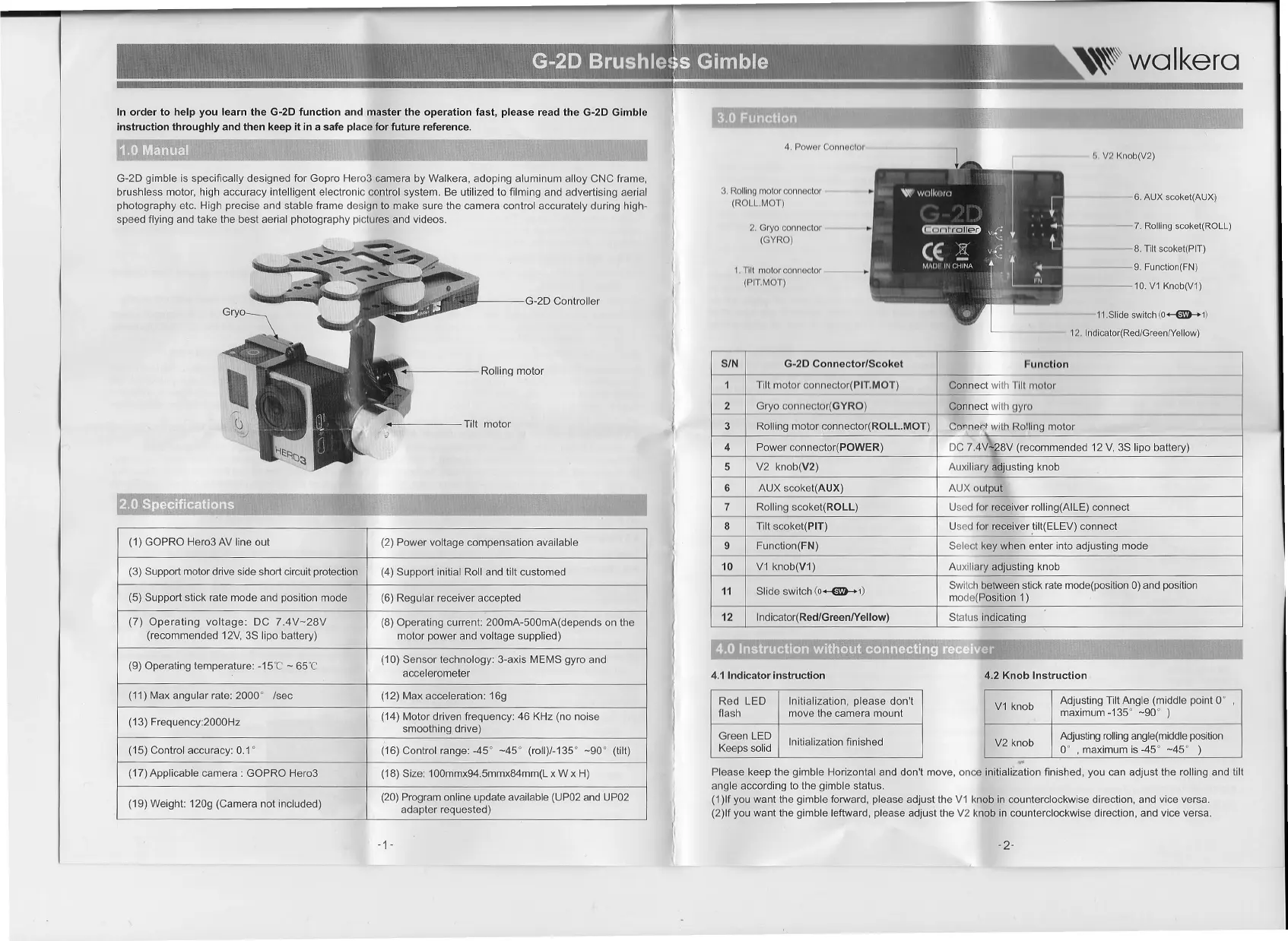

In order to help you learn the G-2D function and master the operation fast, please read the G-2D Gimble
instruction throughly and then keep it in a safe place for future reference.
G-2D gimble is specifically designed for Gopro Her03 camera by Walkera, adoping aluminum alloy CNC frame,
brushless motor, high accuracy intelligent electronic control system. Be utilized to filming and advertising aerial
photography etc. High precise and stable frame design to make sure the camera control accurately during high-
speed flying and take the best aerial photography pictures and videos.
, G-2D Controller
r.
Rolling motor
(1) GOPRO Hero3 AV line out
(2) Power voltage compensation available
(3) Support motor drive side short circuit protection
(4) Support initial Roll and tilt customed
(5) Support stick rate mode and position mode
(6) Regular receiver accepted
(7) Operating voltage: DC 7.4V-28V
(8) Operating current: 200mA-500mA(depends on the
(recommended 12V, 3S lipo battery)
motor power and voltage supplied)
(9) Operating temperature: -15'C - 65'C
(10) Sensor technology: 3-axis MEMS gyro and
accelerometer
(11) Max angular rate: 2000'
/sec (12) Max acceleration: 16g
(13) Frequency:2000Hz
(14) Motor driven frequency: 46 KHz (no noise
smoothing drive)
(15) Control accuracy: 0.1'
(16) Control range: -45' -45' (roll)/-135' -90' (tilt)
(17) Applicable camera: GOPRO Hero3
(18) Size: 1OOmmx94.5mmx84mm(L x W x H)
(19) Weight: 120g (Camera not included)
(20) Program online update available (UP02 and UP02
adapter requested)
-1-
4. Powor cconocro.
h. V? Knob(V2)
.,
., '" wlllk,,,,, .
*
I ,..-.
~v{',t
"f
«
s
V{;{:L1"
~.~ "b:, ._
•••• MAl" INI:HINA
tl
,
I"N_
:1"
J
;1
3. ROiling motor connector
(ROLL.MOT)
-6.
AUX scoket(AUX)
-7. Rolling scoket(ROLL)
2. Gryo connoctor
(GYRO)
--8.
Titt scoket(PtT)
--9.
Function(FN)
1. Tilt motor connector
(PIT.MOT)
--10. V1 Knob(V1)
o
11.Slide switch
(O+--QD-+1)
12.lndicator(Red/GreenlYettow)
SIN
I
G-2D Connector/Scokel
Function
--
-
Tilt motor connector(PIT.MOT)
Connect with Tilt motor
2 Gryo connector(GYRO)
Connect with gyro
3
Rolling motor connector(ROLLMOT)
Cormet:~ with ROiling motor
4 Power connector(POWER)
DC 7.4V-28V (recommended 12 V, 3S Iipo battery)
5
V2 knob(V2) Auxiliary adjusting knob
6
AUX scoket(AUX) AUX output
7 Rolling scoket(ROLL) Used for receiver rolling(AILE) connect
8
Tilt scoket(PIT)
Used for receiver tilt(ELEV) connect
9
Function(FN) Select key when enter into adjusting mode
10 V1 knob(V1)
Auxiliary adjusting knob
11
I
Slide switch
(O+--QD-+1)
Switch between stick rate mode(position 0) and position
mode(Position 1)
12
I
Indicator(Red/GreenNellow) Status indicating
"-'
4.1lndicalor instruction
4.2 Knob Instruction
Red LED Initialization, please don't
flash move the camera mount
Green LED
Initialization finished
Keeps solid
V1 knob
Adjusting Tilt Angle (middle point O'
maximum-135' -90' )
Adjusting rolling angle(middle position
O' , maximum is -45' -45' )
V2 knob
..
Please keep the gimble Horizontal and don't move, once initialization finished, you can adjust the rolling and tilt
angle according to the gimble status.
(1)If you want the gimble forward, please adjust the V1 knob in counterclockwise direction, and vice versa.
(2)lf you want the gimble leftward, please adjust the V2 knob in counterclockwise direction, and vice versa.
-2-
