Wangen KL Series User Manual

Instruction Handbook KL
Chapter 9
BA KL V11 en 10/2014 page 9-30
9.8 Driving parts
9.8.1 Drive unit
 Use lifting tool to secure drive unit against tilting over.
Flange diameter 160 mm
1. Undo and remove mounting bolts 1011 with spring rings 1118 on drive unit flange 1104.
Prise off drive unit by placing two levers into the recesses provided in the drive unit flange for this
purpose.
Flange diameter 200 mm and larger
1. Use lifting gear to secure drive unit against tilting over.
2. Undo and remove mounting bolts 1011 with spring rings 1118 on drive unit flange 1104.
3. Screw in prise-off bolts into the drive unit flange.
4. Disassemble drive unit by evenly tightening these bolts.
Caution!
Risk of trapping and crushing by dismounting drive unit.
Possible dangerous situation: Minor injuries

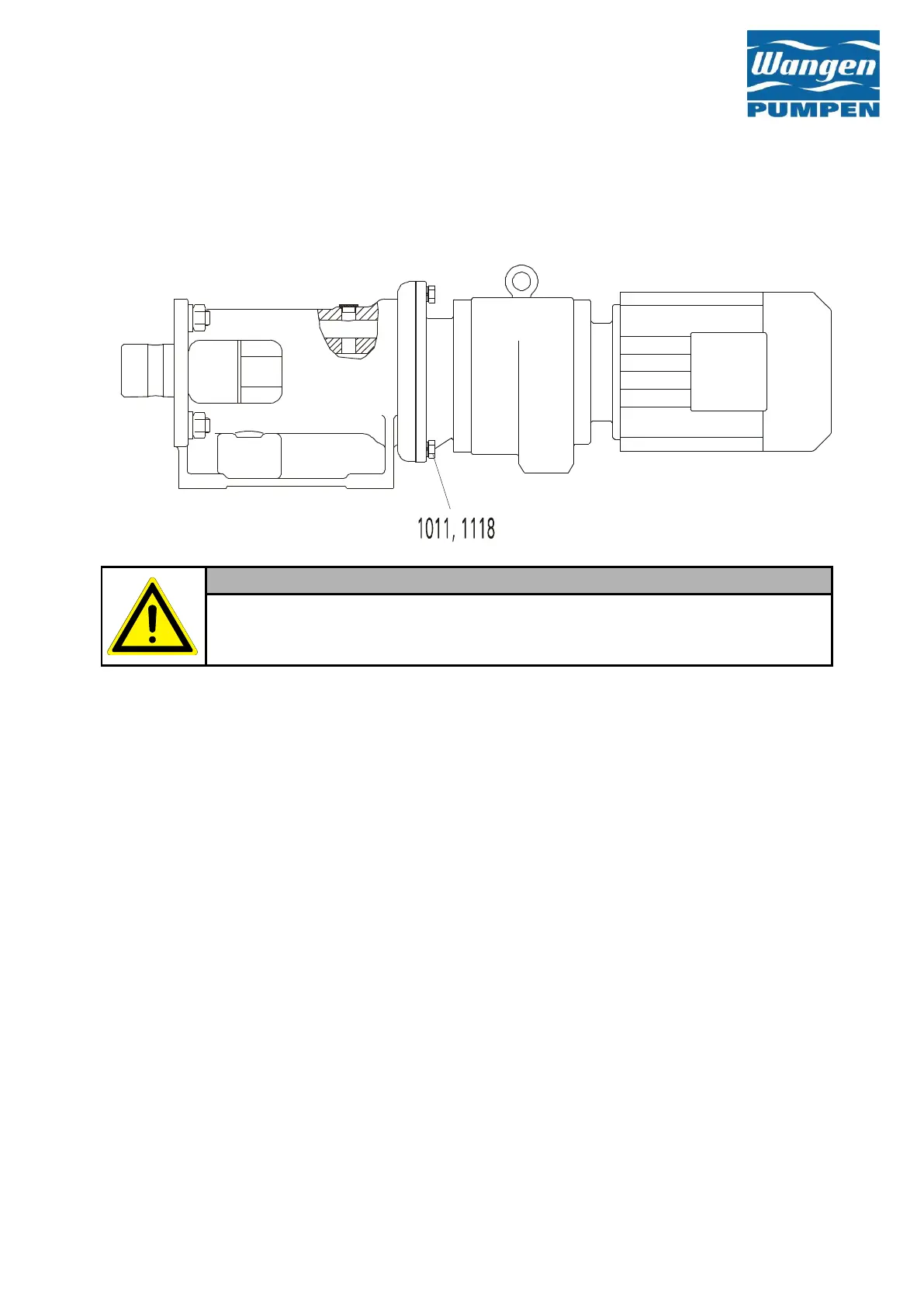

Fig. 9-27
