Unit State – Press this button to enter the Unit Status Sub-Menu. Pressing the button brings up
the following display screen which displays the current status of a number of outputs spread
across 3 tabs. These outputs and their functionality are detailed in Table 5 at the end of this
chapter:

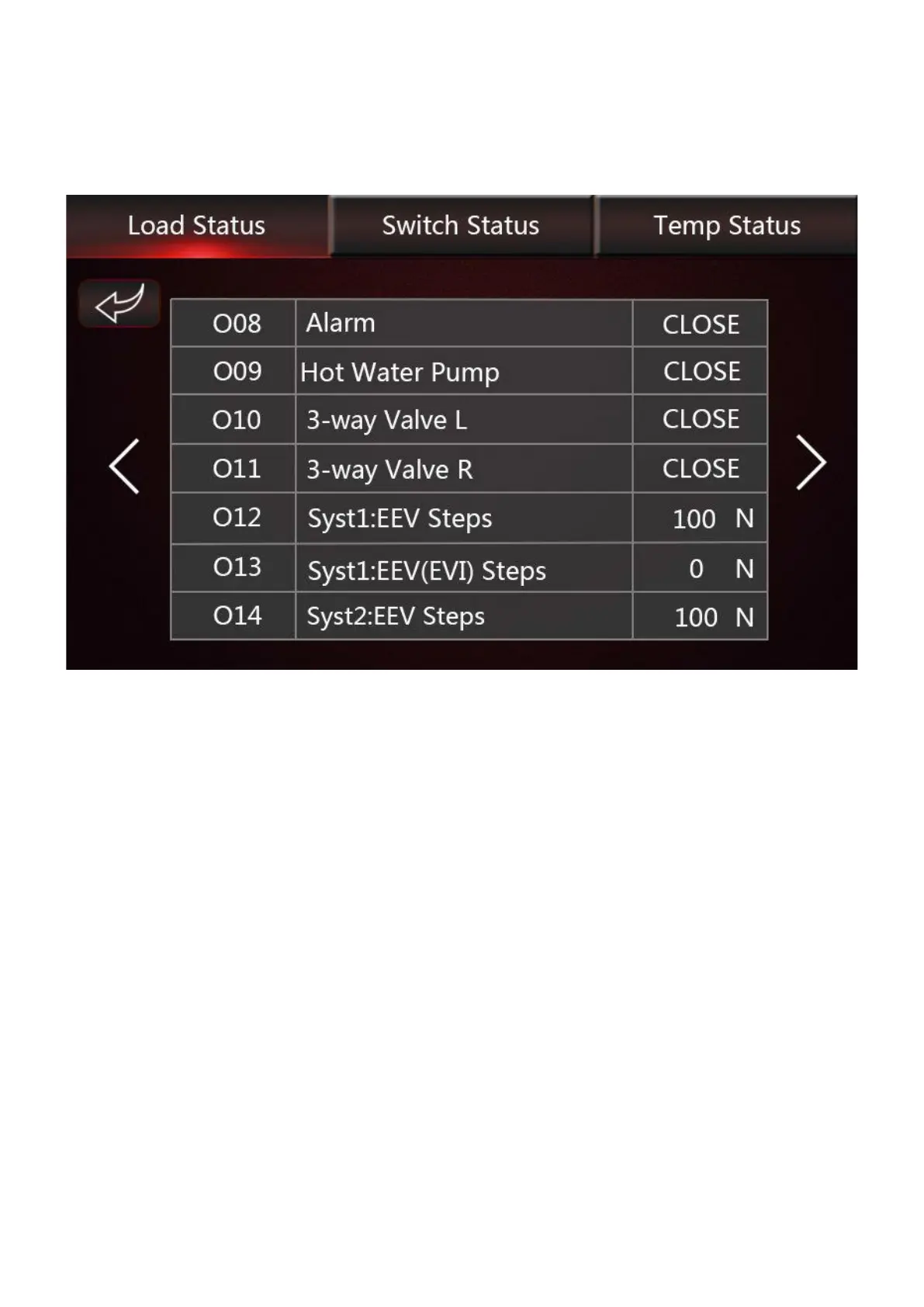

Figure 19 Unit Status Sub-Menu Screen
Failure – Press this button to enter the Failure Logging Sub-Menu. Pressing the button brings
up the following display screen which displays the stored fault codes (most recent first). A total
of 35 codes can be stored together with the time and date when the code occurred. Once an
error code has been resolved, the error code can be cleared by pressing the Clear button. A list
of error codes, a description and possible resolution can be found in section 3.15 of this manual.
NOTE: It is essential that these error codes are not cleared in order to allow an engineer
to fully diagnose the problem and prevent further failures.
