Curve – Press this button to enter the Curve Sub-Menu. This sub-menu displays a graph
showing the Heating Flow and Heating Return temperature when the unit is running (data will
not be recorded if the unit is not running). The data is recorded every 5 minutes and displayed
in either °C or °F dependent on the user setting (parameter H03). The most recent recording is
shown on the left side of the graph. Data can be cleared from the graph by pressing the Clear

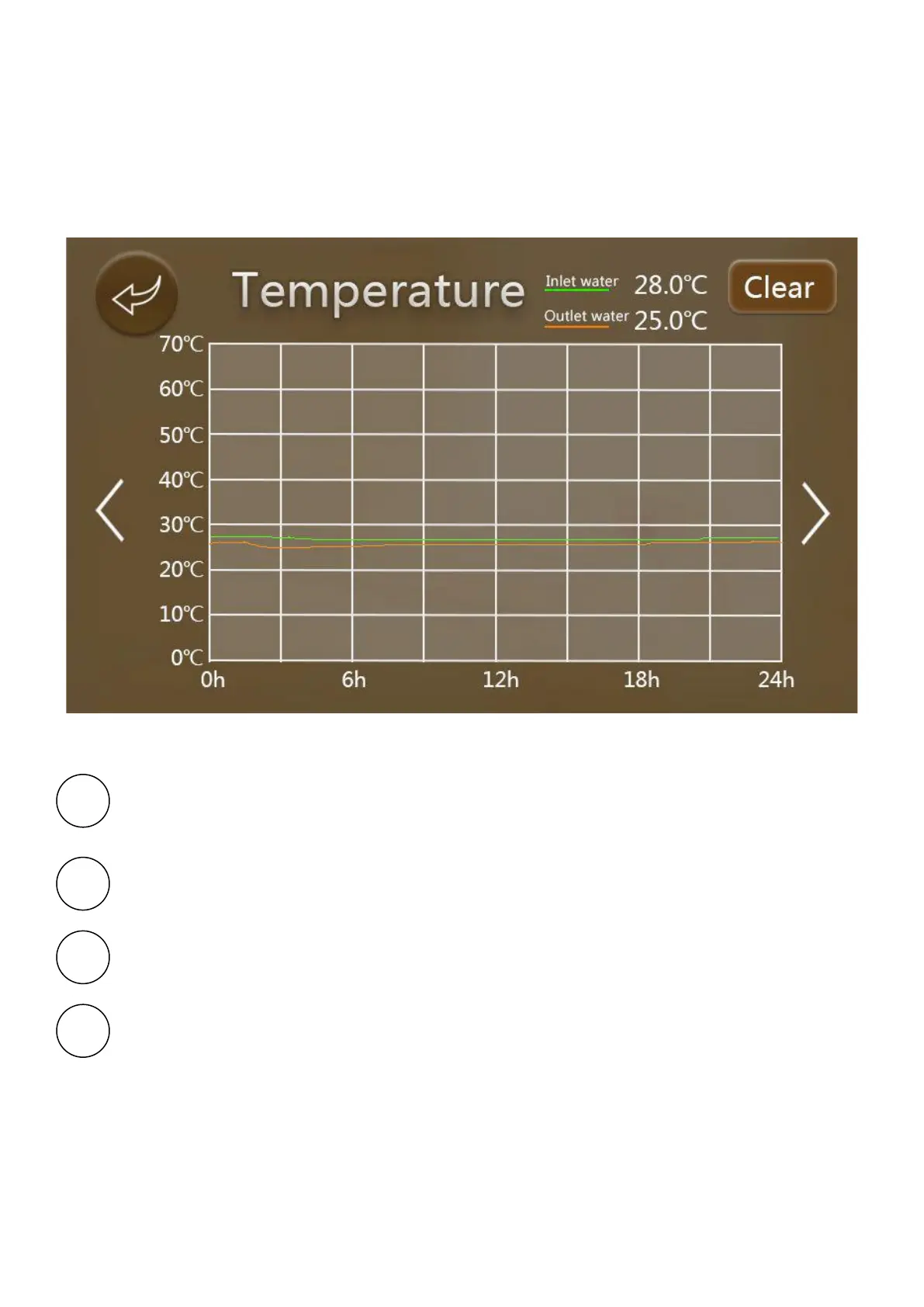

button although this is not recommended. A typical graph is shown below:
Figure 22 Heating Flow & Return Temperature Graph Screen
Tap Icon – This icon indicates that DHW Mode is active.
Sun Icon – This icon indicates that Heating Mode is active. A ‘Snowflake’ icon will
appear here when the unit is in Cooling Mode.
Time And Date – This line of text indicates the current Time and Date.
Defrosting Icon – The Defrosting Icon (melting Snowflake) indicates that the unit is
currently in Defrost Mode. The defrosting icon will continue to show until defrosting is
complete.
