WARRIOR ROUTER SPEED CONTROL - Parts List and Diagram

WARRIOR ROUTER SPEED CONTROL

4 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

Page 3For technical questions, please call 1-888-866-5797.Item 59386

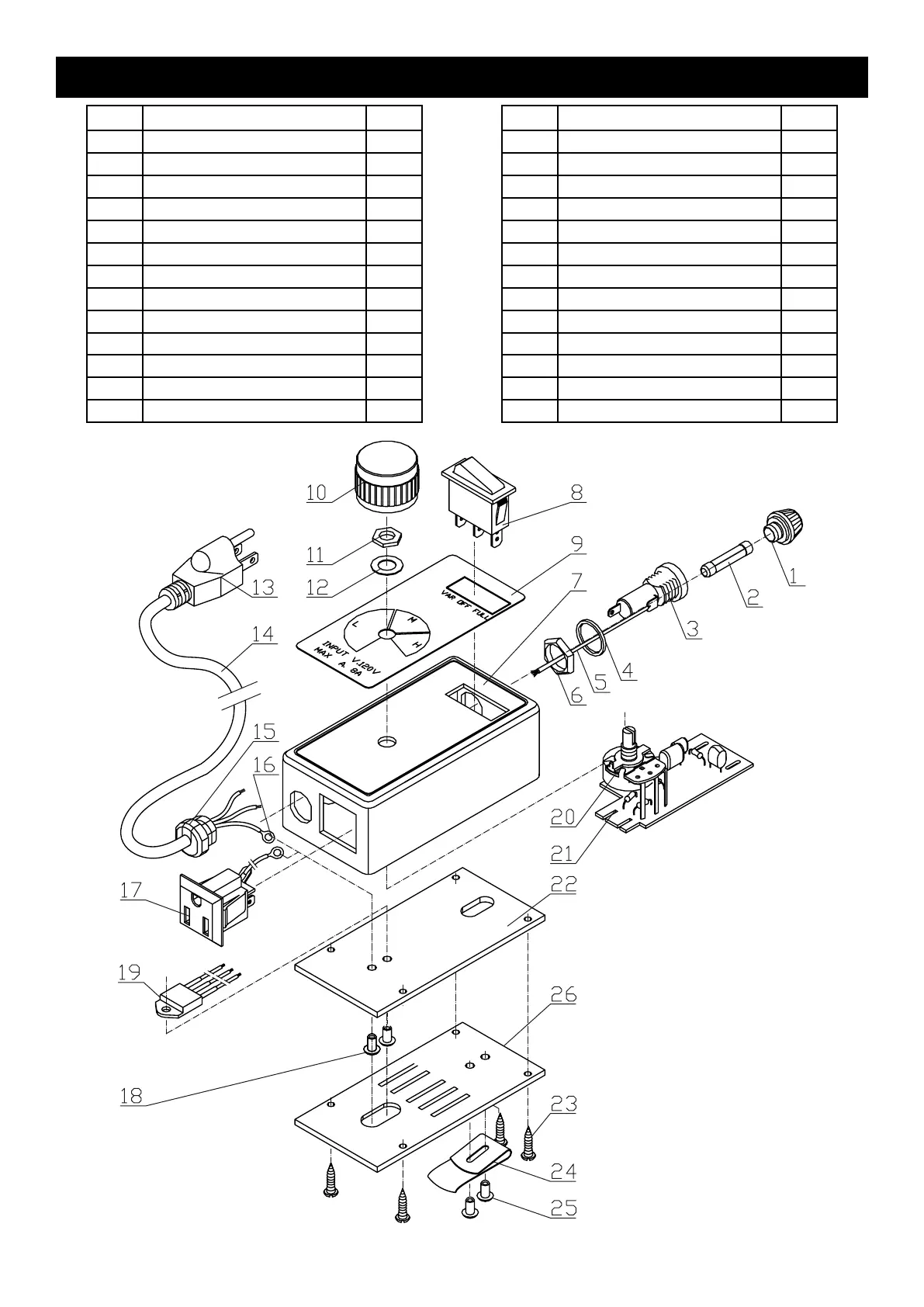

Parts List and Diagram

Part Description Qty

1 Fuse Lid 1

2 Fuse 1

3 Fuse Holder 1

4 Washer 1

5 Wire 1

6 Nut 1

7 Switch Box 1

8 Rocker Switch 1

9 Face Board 1

10 Speed Knob 1

11 Nut 1

12 Washer 1

13 Plug 1

Part Description Qty

14 Cord 1

15 Cord Clamp 2

16 Weld Flake 1

17 Outlet Socket 2

18 Rivet 1

19 Rectifier 1

20 Potentiometer 1

21 Circuit Board 1

22 Aluminum Plate 1

23 Screws 4

24 Hold Clamp 1

25 Rivet 2

26 Cover 1
