Wärtsilä Guidance Marine Ltd,
5 Tiber Way, Meridian Business Park, Leicester, LE19 1QP, UK
T: +44 116 229 2600 E: sales.wgm@wartsila.com
www.wartsila.com/guidance-marine

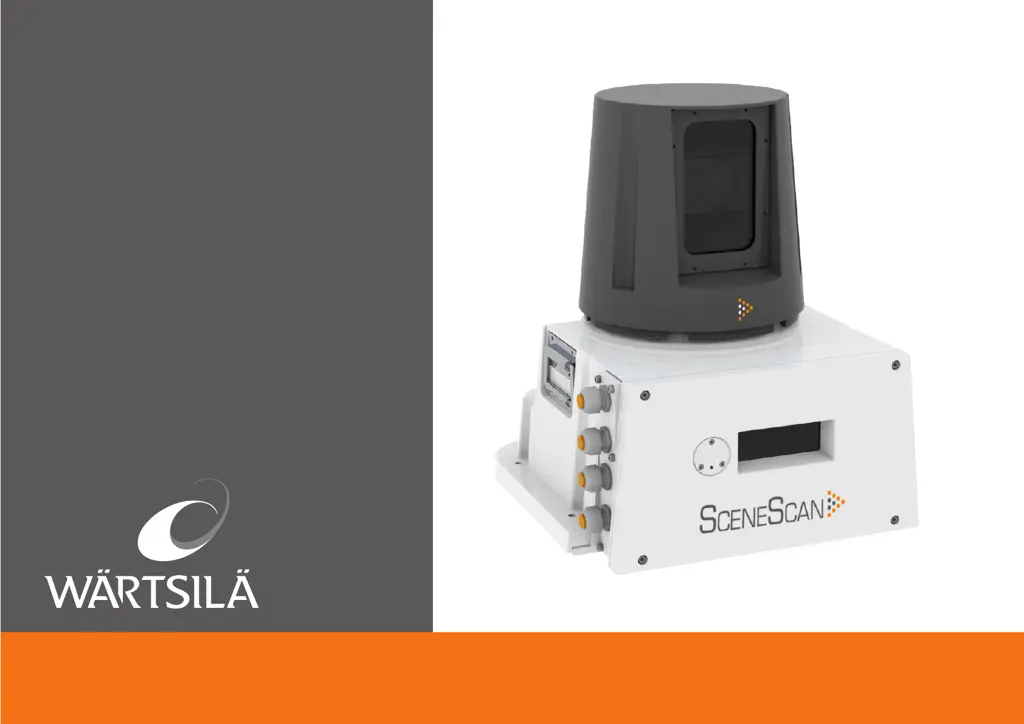

USER’S GUIDE
SCENESCAN

Table of Contents

Questions and Answers

  • J
    Julie WilsonAug 4, 2025
    What to do if WÄRTSILÄ Accessories system shows no scene?
    • M
      Michelle MerrittAug 5, 2025
      If your WÄRTSILÄ Accessories system seems to be working but isn't displaying a scene even when close to a structure, try the following: * Ensure the dynamic and static blanking zones are correctly configured. * Clean the SceneScan Sensor window. * Verify pulses are present in the Dashboard Power menu and the Zoom control on the main screen is appropriately set. * Confirm the Tilt controls are correctly adjusted. * Check that the Power controls in the Power menu are properly set. * Ensure the Minimum Range Filter in the Power menu is appropriately configured. * Make sure the Sensor has an unobstructed view of the scene.
  • J
    Jonathan IbarraAug 10, 2025
    Why is WÄRTSILÄ Accessories tracking, but the DP system receives no data?
    • R
      Rebekah NortonAug 10, 2025
      If the WÄRTSILÄ Accessories system is tracking, but the vessel's DP system isn't receiving data, check the following: 1. Inspect the DP Feed connection from the Sensor. 2. Verify that the DP Message Format matches the configuration of the vessel’s DP system. 3. Ensure the 'Enable DP Output' button is not visible on the Dashboard. If it is, press it to enable the DP output.
  • J
    Jeremiah JimenezAug 16, 2025
    How to fix no communication between SceneScan Dashboard and WÄRTSILÄ Accessories Sensor?
    • M
      Matthew Young DDSAug 17, 2025
      If there is no communication between the SceneScan Dashboard and the WÄRTSILÄ Accessories Sensor, try these steps: Click the Disconnect button and then the Connect button. Check the power and client connections to the Sensor. Ensure the unit displays the current time on the Sensor Information Display; if errors are shown, power cycle the Sensor. Verify that the Sensor displays the same IP address on the Sensor Information Display as the Dashboard Sensor Comms pane.
  • S
    Samantha HartAug 23, 2025
    What to do if WÄRTSILÄ Accessories rotor does not rotate?
    • N
      Nina MclaughlinAug 23, 2025
      If the rotor on your WÄRTSILÄ Accessories unit isn't rotating, consider these potential solutions: * Make sure the unit's temperature is above -15°C, as the rotor is designed to prevent spinning below this temperature to protect the Sensor mechanics. * Check the Dashboard for a 'Motor Stall' alarm; if present, suspend and then resume the unit to restart the motor. * Inspect the Sensor rotor for any mechanical blockages and remove them. * Check the Sensor Information Display on the system unit for any displayed errors. If errors are present, power cycle the unit and watch the messages on the display. * Look for ice buildup under the rotor and remove any ice that may be present.
  • P
    plewisAug 29, 2025
    Why does WÄRTSILÄ Accessories lose scene in cold weather?
    • E
      Erik LynnAug 29, 2025
      If your WÄRTSILÄ Accessories system works correctly but loses the scene in cold weather, check the Sensor window for condensation or ice and clean it if necessary.

Summary

Introduction to SceneScan

Welcome to SceneScan

Provides a welcome to the SceneScan User Guide and outlines its contents, including system usage and installation.

SceneScan System Overview

Details the SceneScan System's function as a high-accuracy laser sensor for positional information and its key elements.

SceneScan Sensor Part Identification

Identifies the key parts of the SceneScan Sensor unit and their common names used throughout the guide.

Getting Started with SceneScan

SceneScan Start Up and Shut Down Procedures

Explains how to start and shut down the SceneScan Dashboard and Sensor, including suspend, exit, and disconnect options.

Understanding Targetless Tracking

Details SceneScan's targetless tracking capability using natural structures and introduces blanking zones.

SceneScan Dashboard Screen Layout

Breaks down the SceneScan Dashboard screen into its main sections: BEV, Side Bar, and Menu Pane.

SceneScan Display Settings and Brightness

Covers Day and Night modes for visibility and adjusting screen brightness for optimal viewing.

Configuring Vessel Orientation in SceneScan

Explains how to set and use the four different vessel orientation layouts for the Bird's Eye View.

SceneScan Tracking Basics

Operating Dynamic Blanking Zones

Details how to use dynamic blanking zones to mask scan rotation segments and improve tracking accuracy.

Scanner Tilt Controls and Modes

Explains scanner tilt compensation for vessel motion and the operation of Auto and Manual tilt modes.

Starting and Stopping SceneScan Tracking

Provides instructions on how to initiate and terminate tracking operations, including tilt optimization.

SceneScan Positional Display Modes

Describes how to display positional data using Range/Bearing/Heading or A/B coordinate systems.

Multi-Dashboard SceneScan Systems

SceneScan Dashboard Monitoring Mode

Explains the function of a SceneScan Dashboard operating in Monitoring mode, with limited sensor control.

SceneScan Dashboard In Command Mode

Details the SceneScan Dashboard in Command mode, allowing full control and changes visible on monitoring dashboards.

SceneScan Support Information

Low Temperature Operation Guidelines

Provides recommendations for operating the SceneScan system at low temperatures and technical considerations.

Working with SceneScan Alarms

Explains the severity of alarms, their display, and how to filter them for effective system monitoring.

SceneScan Network Communication Settings

Details how to view and modify network communication settings and the Sensor's IP address.

SceneScan Data Logging Procedures

Covers manual and automatic data logging, exporting logs, and taking screenshots for diagnostics.

SceneScan Serial Numbers and Software Versions

Explains the importance of serial numbers and software versions for identification and support.

SceneScan Troubleshooting Guide

SceneScan Problems and Remedies

Lists common issues such as communication errors, rotor problems, and scene display issues with potential solutions.

SceneScan Fuse Information and Replacement

Provides details on the SceneScan system's fuses, their specifications, and the procedure for replacement.

Installing the SceneScan Hardware

SceneScan Sensor Mounting Locations

Discusses optimal locations for mounting the SceneScan Sensor on a vessel, considering view and environmental factors.

SceneScan Dimensions and Mounting Template

Presents exact unit dimensions and a mounting template with clearance requirements for installation.

Installing SceneScan Cables

SceneScan Cable Specifications

Recommends flexible multicore cables and lists general requirements and Wärtsilä part numbers.

SceneScan Sensor Connections

Provides step-by-step instructions for connecting various cables to the SceneScan Sensor unit.

SceneScan Client and DP Feed Connections

Explains how to connect Ethernet and Serial ports for DP systems and the marine processor.

SceneScan Cable Routing Diagrams

Illustrates cable routing diagrams for connecting the SceneScan Sensor to the DP Instrument Room.

Installing the SceneScan Control PC

Installing SceneScan Client Software

Guides the installation of SceneScan Dashboard and Service Interface software on Windows computers.

Configuring the SceneScan System

Using the SceneScan Service Interface

Introduces the Service Interface for system configuration and outlines its screen layout and status information.

SceneScan Network Communication Settings

Details how to view and modify network settings and the Sensor's IP address via the Service Interface.

SceneScan Vessel Parameters Configuration

Explains how to define vessel dimensions and offsets for accurate system calibration and data display.

Configuring Static Blanking Zones

Describes how to set and modify static blanking zones to mask parts of the scene obscured by the vessel's superstructure.

Dynamic Positioning Feed Configuration

Guides the configuration of the DP output stream to ensure compatibility with the vessel's DP system.

SceneScan System Parameters Management

Allows adjustment of system parameters, including import, export, and reset options for configuration files.

SceneScan DP Message Types

Lists and describes various DP message formats supported by SceneScan for data transmission.

SceneScan Service Schedule and Maintenance

Outlines sensor maintenance requirements and recommended storage conditions for optimal system longevity.

SceneScan Installation Checklist

Provides a comprehensive checklist for verifying mechanical, electrical, and system configurations during installation.

Wartsila SCENESCAN Specifications

General IconGeneral
Output3D point cloud data
ApplicationMarine, offshore, and industrial environments
Function3D scanning
TechnologyLaser scanning
PrecisionHigh precision
