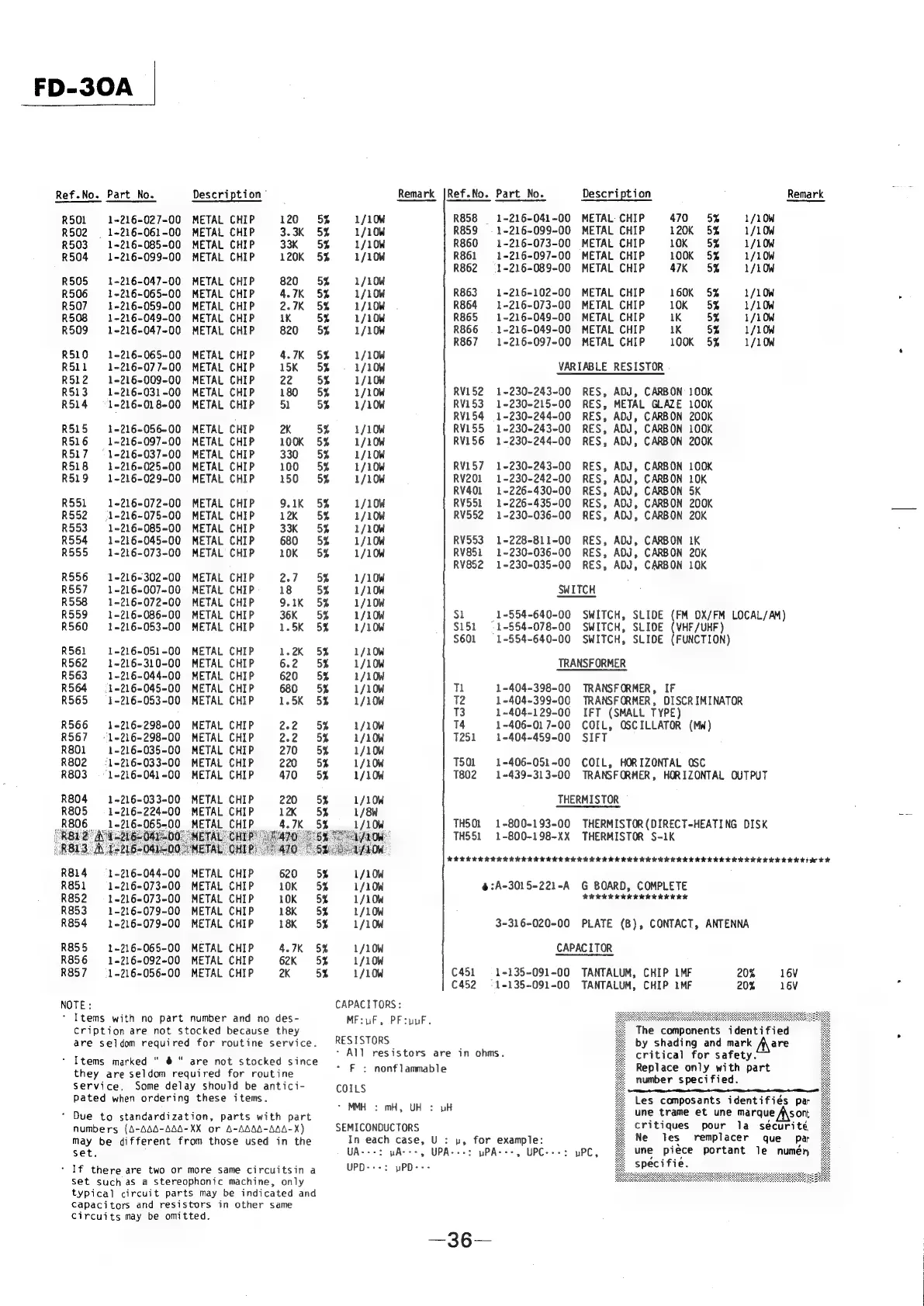

FD-30A
Ref.No. Part No. Description —
R50 1+216-027-00 METAL CHIP 120 «5%
R502 | 1~216-061-00 METAL CHIP 3.3K 5%
R503 =1+216-085-00 METAL CHIP 33K 5%
R504 1-216-099-00 METAL CHIP 120K 5%
R505 1-216-047-00 METAL CHIP 820 5%
R506 1-216-065-00 METAL CHIP 4.7K 5%
R507 —s-:1-216-059-00 METAL CHIP 2.7K 5%
R508 1-216-049-00 METAL CHIP 1K 5%
R509 = 1-216-047-00 METAL CHIP 820 5%
R510 1-216-065-00 METAL CHIP 4.7K 5%
R511 = -1-216-077-00 METAL CHIP 15K 5%
R512 1-216-009-00 METAL CHIP 22 5%
R513. -:1-216-031-00 METAL CHIP 180 865%
R514 =: 1-216-018-00 METAL CHIP 51 5%
R515 = 1-216-056-00 METAL CHIP 2k 5%
R516 1~216-097-00 METAL CHIP 100K 5%
R517 = 1+216-037-00 METAL CHIP 330 5%
R518 1~-216-025-00 METAL CHIP 100 5%
R519 1~+216-029-00 METAL CHIP 150 «5%
R551 =1+216-072-00 METAL CHIP 9.1K 5%
R552 =: 1-216-075-00 METAL CHIP 12K 5%
R553: 1-216-085~00 METAL CHIP 33K 5%
R554 1-216-045-00 METAL CHIP 680 5%
R555 = 1=216-073-00 METAL CHIP 10K = 5%
R556 = 1-216-302-00 METAL CHIP 2.7 45%
R557. —s-1-216-007~-00 METAL CHIP 18 5%
R558 =1-216-072-00 METAL CHIP 9.1K 5%
R559 =1-216-086-00 METAL CHIP 36K 5%
R560 = 1-216-053-00 METAL CHIP 1.5K 5%
R561 =1-216-051-00 METAL CHIP 1.2K 5%
R562 = 1~216-310-00 METAL CHIP 6.2 5%
R563 1-216-044-00 METAL CHIP 620 5%
R564 =: 1-216-045-00 METAL CHIP 680 5%
R565 1-216-053-00 METAL CHIP 1.5K 5%
R566 = =1-216-298-00 METAL CHIP 2.2 5%
R567 =: 1-216-298-00 METAL CHIP 2.2 5%
R801 1-216-035-00 METAL CHIP 270 5%
R802 =: 1-216-033-00 METAL CHIP 220 5%
R803 = 1+216-041-00 METAL CHIP 470 «5%
R804 ~=:1~216-033-00 METAL CHIP 5%
R805 = 1-216-224-00 METAL CHIP 5%
_ R806 METAL CHIP
1-216-065-00
Di
R814 =. 1 -216-044-00 METAL CHIP 620 5%
R851 = 1=216-073-00 METAL CHIP 10K = 5%
R852 = 1-216-073-00 METAL CHIP 10K «5%
R853 -1-216-079-00 METAL CHIP 18K 5%
R854 =1-216-079-00 METAL CHIP 18K 5%
R855 1 =216-065-00 METAL CHIP 4.7K 5%
R856 1-216-092-00 METAL CHIP 62K «5%
R857 —- 1-216-056-00 METAL CHIP 2K 5%
NOTE:
* Items with no part number and no des-
cription are not stocked because they
are seldom required for routine service.
* Items marked " 6" are not stocked since
they are seldom required for routine
service,
* Due to standardization, parts with part
numbers (A-ASA-AAA-XX or A-AAAB-AAA-X)
may be different from those used in the
set.
Some delay should be antici-
Pated when ordering these items.
Remark |Ref.No. Part No. Description Remark
1/10W R858 1-216-041-00 METAL: CHIP 470 5% 1/1 0W
1/10W R859 = 1-216-099-00 METAL CHIP 120K 5% 1/10W
1/10W R860 1-216-073-00 METAL CHIP 10K 5% 1/10W
1/10W R861 =1-216-097-00 METAL CHIP 100K 5% 1/10W
R862 =: 1-216-089-00 METAL CHIP 47K 5% 1/10W
1/10W
tig R863 -:1-216-102-00 METAL CHIP 160K 5% 1/10W
1/10W R864 =1=216-073-00 METAL CHIP 10K «5% 1/10W
1/10W R865 = 1-216-049-00 METAL CHIP 1K 5% 1/10W
1/10W R866 = 1-216-049-00 METAL CHIP 1K 5% 1/10W
R867 —-:1-216-097-00 METAL CHIP 100K 5% 1/1 OW
1/10W
‘
1/10W VARIABLE RESISTOR
1/10W
1/10W RV152 1-230-243-00 RES, ADJ, CARBON 100K
1/10W RV1531-230-215-00 RES, METAL GLAZE 100K
RV154 = 1-230-244-00 RES, ADJ, CARBON 200K
1/10W RV155 1+230-243-00 RES, ADJ, CARBON 100K
1/10W RV156 1-230-244-00 RES, ADJ, CARBON 200K
1/10W
1/10W RV157 1-230-243-00 RES, ADJ, CARBON 100K
1/10W RV201 1-+230-242-00 RES, ADJ, CARBON 10K
RV401 1-226-430-00 RES, ADJ, CARBON 5K
1/10W RV551 1-226-435-00 RES, ADJ, CARBON 200K
1/10W RV552 1-230-036-00 RES, ADJ, CARBON 20K
1/10W
1/10W RV553 «1 -228-811-00 RES, ADJ, CARBON IK
1/10W RV85i =1-+230-036-00 RES, ADJ, CARBON 20K
RV852 1-230-035-00 RES, ADJ, CARBON 10K
1/10W
1/10W SWITCH
1/10W
1/10W Si 1-554-640-00 SWITCH, SLIDE (FM DX/FM LOCAL/AM)
1/10W $151 = 1-554-078-00 SWITCH, SLIDE (VHF/UHF)
S601 1-554-640-00 SWITCH, SLIDE (FUNCTION)
1/10W
1/10W TRANSFORMER
1/10W
1/10W Tl 1-404-398-00 TRANSFORMER, IF
1/10W T2 1-404-399-00 TRANSFORMER, DISCRIMINATOR
T3 1~404-129-00 IFT (SMALL TYPE)
1/10W 14 1-406-017-00 COIL, OSCILLATOR (MW)
1/10W T7251 1-404-459-00 SIFT
1/10W
1/10W T501 1-406-051~-00 COIL, HORIZONTAL OSC
1/10W T802 =1+439-313-00 TRANSFORMER, HORIZONTAL OUTPUT
1/10W THERMISTOR
1/8W :
1/10W TH50i + 1-800-193-00 THERMISTOR (DIRECT-HEATING DISK
LOW TH551 1-800-198-XX THERMISTOR S-1K
HK IKK IIR IIE EI TTI IIT IIIS RIKKI RIKKI AIK AKER KA CK
1/10W
1/10W @:A-3015-221-A G BOARD, COMPLETE
1/10W Rak KKK KKK KE
1/10W
1/10W 3-316-020-00 PLATE (B), CONTACT, ANTENNA
1/10W CAPACITOR
1/10W
1/10W C451 = 1-135-091-00 TANTALUM, CHIP LMF 20% 16V
C452 0: 1-135-091-00 TANTALUM, CHIP IMF 20% 16V 4
CAPACITORS:
MF:uF, PF:uuF.
The components identified Z
RESISTORS
by
shading
and
mark
A\are
* All resistors are in ohms.
* F : nonflammable
critical for safety.
Replace only with part
number specified.
COILS ;
. ; : Les composants identifiés par
MMH > mH, UH : uH une trame et une marque A\sont
SEMICONDUCTORS critiques pour la sécurité
In each case, U : », for example: Ne les remplacer que pa
UA-++: wA+++, UPA--++: uPA---, UPC---: pPC, une piece portant le numen
UPD---: yPD---
* If there are two or more same circuitsin a
set such as a Stereophonic machine, only
typical circuit parts may be indicated and
Capacitors and resistors in other same
circuits may be omitted.
