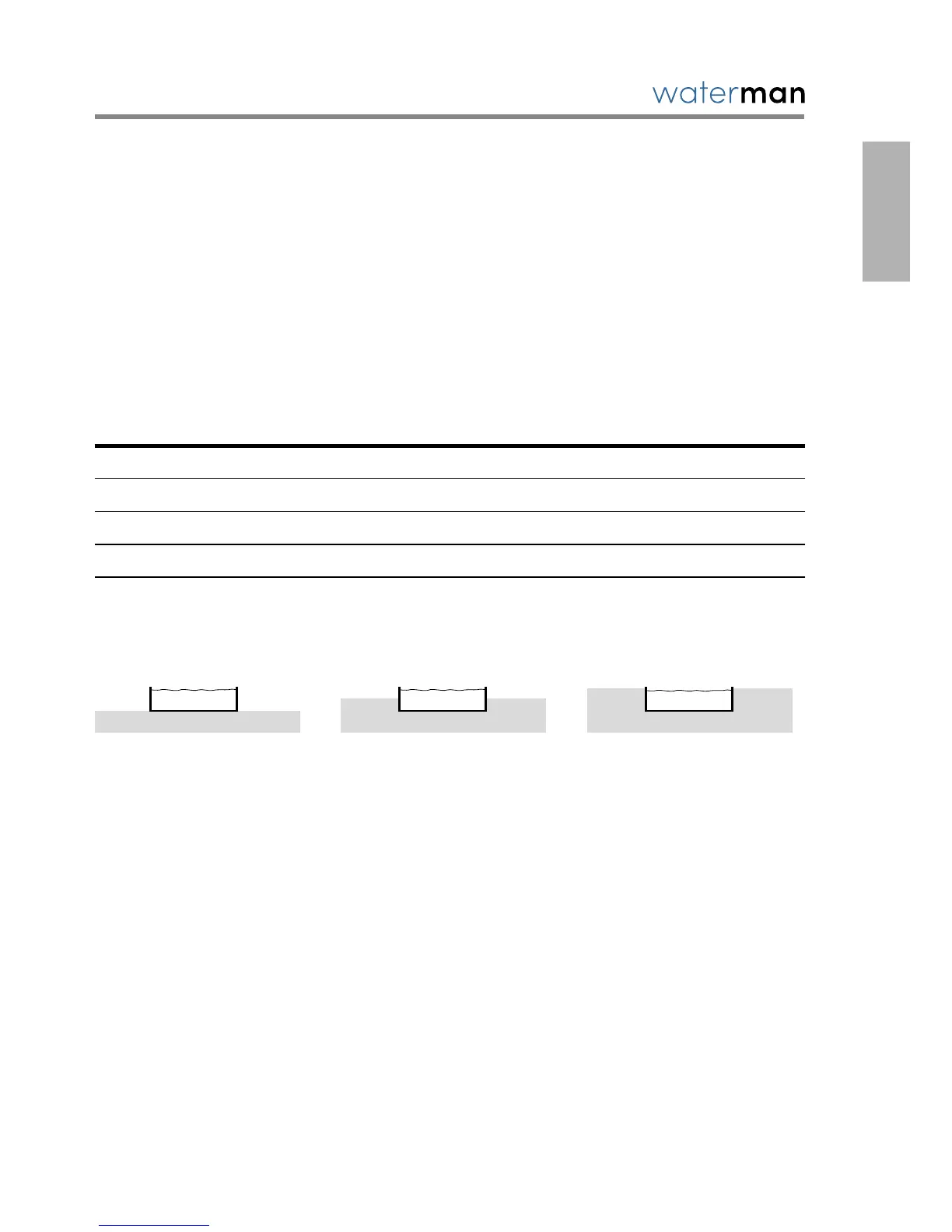

Pool setup (gure-8 shaped pools)
Before setting the pool up, check that all required parts are available according to the attached parts list:
Swimming pool
external dimensions/depth (m)
Pack of prole rails
Top rail Q2 / Bottom rail Q2
Liner
Seat pack
Pair of supports (2-piece)
Base support 2048 mm
with end ange (M33362)
Base support 1738 mm
with angled joint bars (M89315)
Base support 2980 mm
one-piece (M89300)
Screw package and
screw cover strip
Steel wall with perforation
and 2 fastening rails
Grounding kit
4.70 x 3.00 x 0.90 1 1 1 1 1 1 1 1
4.70 x 3.00 x 1.20 1 1 1 1 1 1 1 1
5.40 x 3.50 x 1.20 1 1 1 1 2 1 1 1
6.50 x 4.20 x 1.20 1 1 1 1 2 1 1 1
Also check the length of the supplied steel girders carefully before embedding them in concrete.
THERE ARE 3 DIFFERENT MOUNTING OPTIONS
Above ground / ground level
Semi-inground
(Attention, the built-in part of the
pool requires a lean concrete
backll.)
Completely inground
(Possible only with a lean con-
crete backll (20 – 30 cm.) The
pool must always be lled with
water, never leave without water
for a longer period.
