21

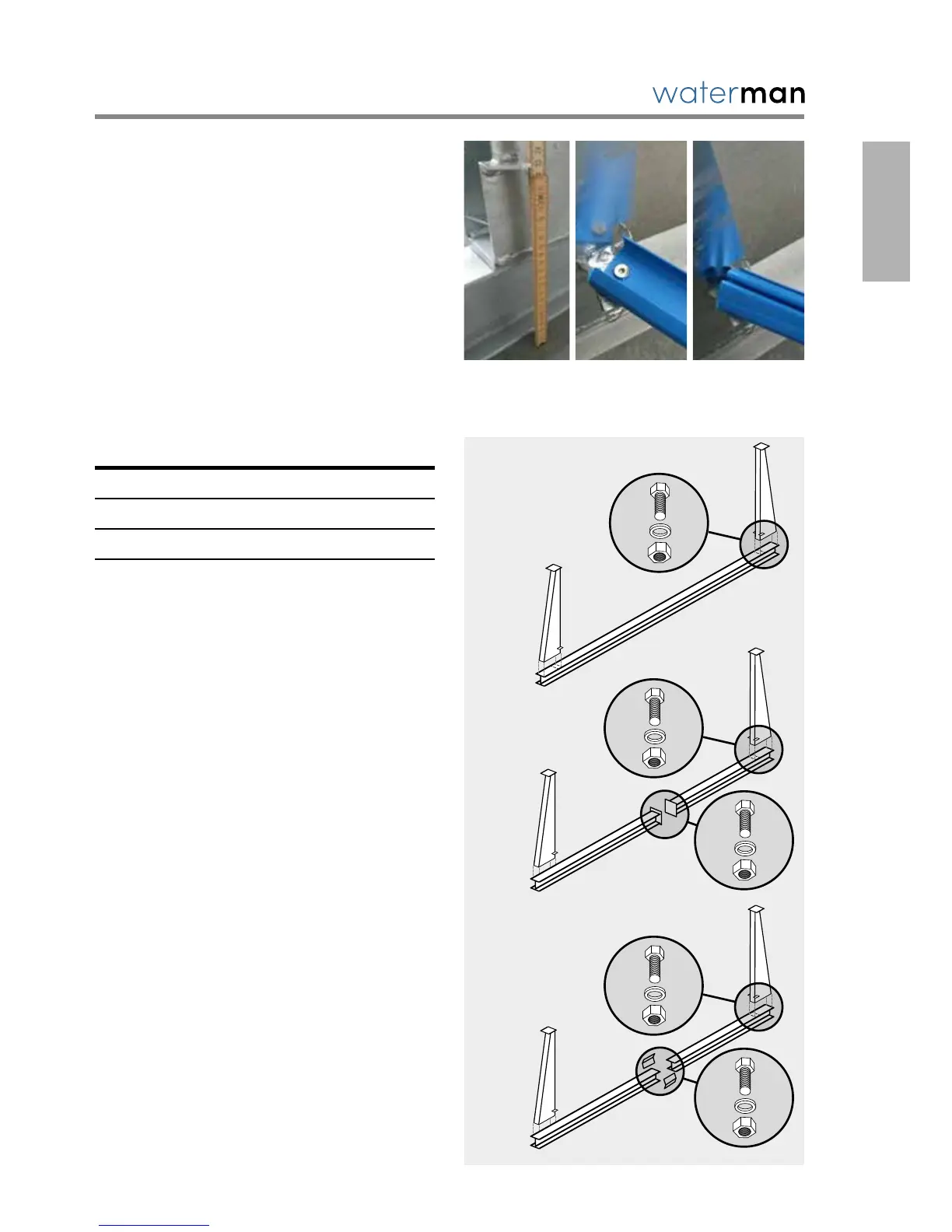

MOUNTING THE STEEL SUPPORT
BEAMS
Depending on the pool size, different steel girders
are required for your swimming pool (see parts list).
Please assemble the steel girders belonging to your
pool in accordance with the following drawings.
Ensure that all screw connections are absolutely
tight and secure.
Dimensions
swimming pool
Trench
length
Distance
between
supports
"S"
470 x 300 cm 320 cm 248.0 cm
540 x 350 cm 370 cm 297.5 cm
650 x 420 cm 440 cm 359.6 cm
Please check the distance between the fully
assembled supports once again with the help of the
following table. The table also shows the required
trench dimensions for embedding the supports.
MOUNTING AND FIXING THE
STEEL SUPPORT BEAMS
Place the pre-assembled support units in the
trench. Align the support unit exactly vertically.
Embed the concrete slab with concrete at ground
level (installation depth approx. 22.5 cm) so that the
shplates for xing the bottom rails are ush with
the top edge of the concrete slab.
Installation depth of
steel girder
(approx. 22.5 cm)
Installation of
bottom rail
connector
Attaching the bottom
rail to the steel girder
Base support one-pieceBase support with end ange
