Waters Xevo TQ-S micro User Manual

4 Maintenance Procedures
168 January 11, 2016, 715004599 Rev. B
4. Remove the end cover and gasket.
5. Unscrew and remove the nebulizer adjuster knob.
6. Remove the PEEK union/UNF coupling assembly and capillary from the probe.
Tip: The PEEK union used with the IonSABRE II probe is notched on one of its
flats, a feature that distinguishes it from the PEEK union used with the ESI probe
(see “Replacing the ESI probe sample capillary” on page 150).
7. Use the 7-mm wrench to loosen the locknut.

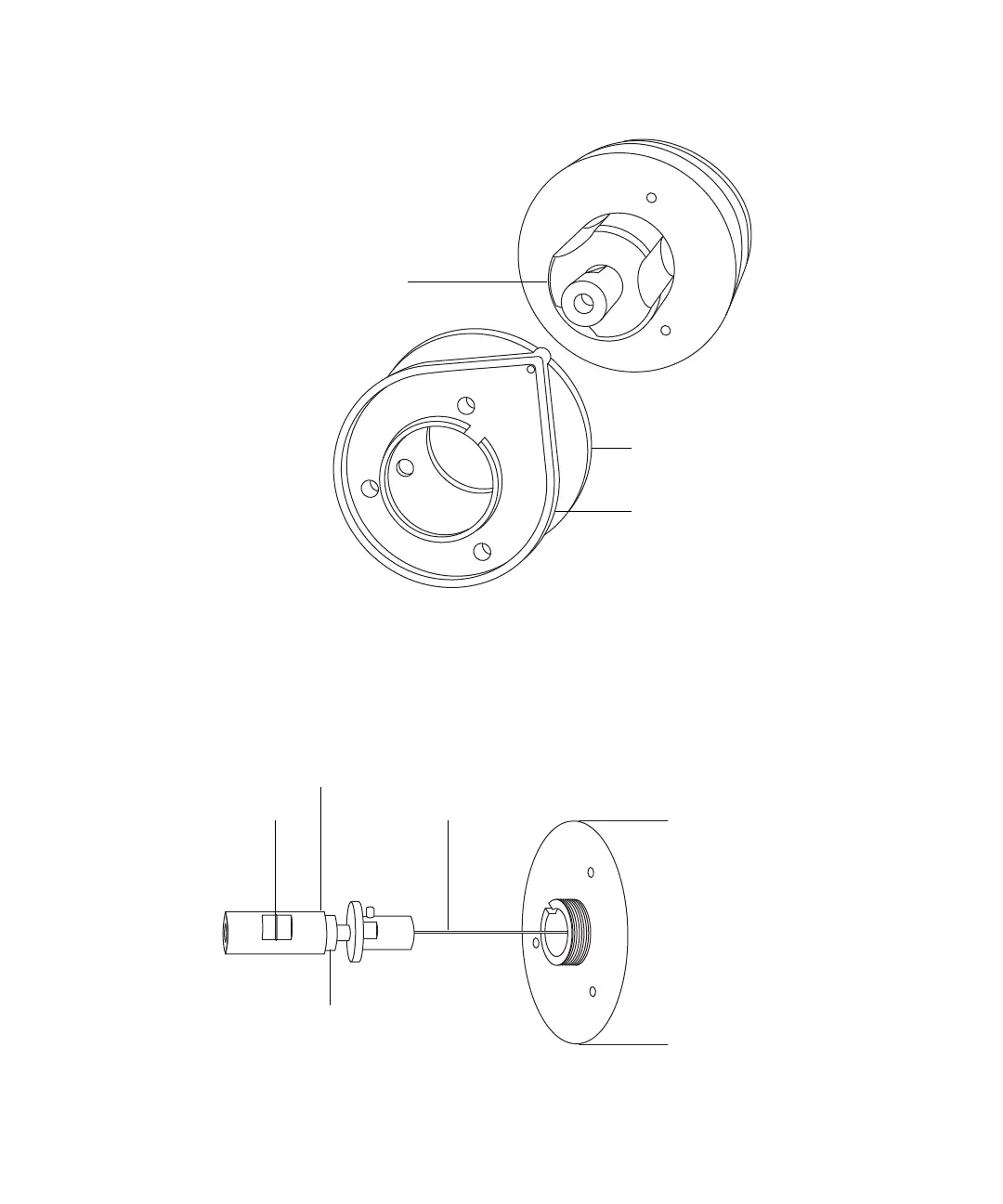

End-cover
Nebulizer adjuster knob
Gasket
PEEK union/UNF coupling assembly
Capillary
Locknut
Notch
