The alignment process of Toroidal is to
adjust two lines in parallel.

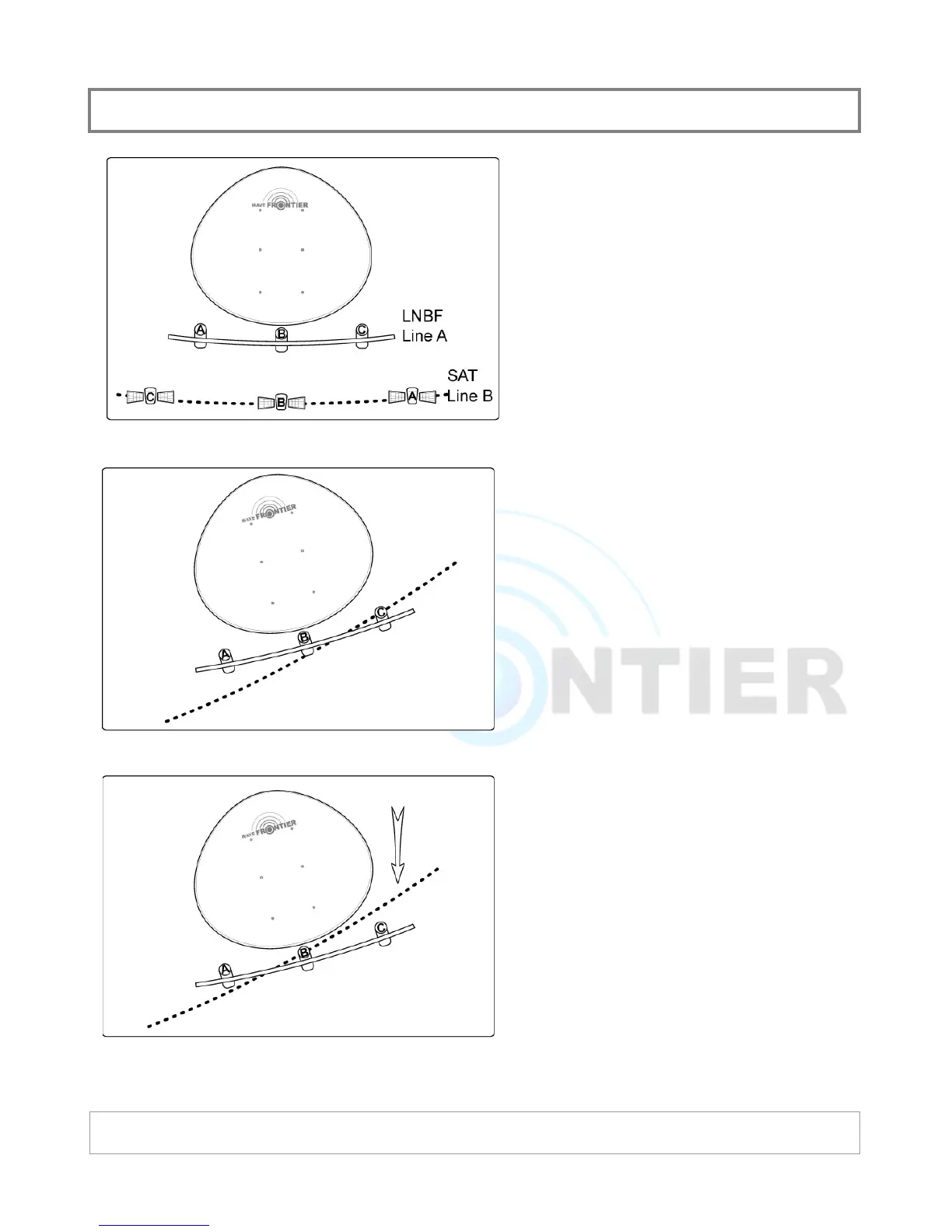

Assume that “A” line is formed by your
LNBFs and “B” line is formed by your target
satellites.
The alignment process of Toroidal is to
make these two lines parallel.
In reality, the line B is not a straight line.
Assume that you have 3 satellites that you
want to target.
Assume Your signal readings are as follows
after the initial alignment process;
x LNBF A: No signal
x LNBF B: 75%
x LNBF C: 95%
You will need to lower elevation since your
center-LNBF is at a higher point than the
satellite B’s focal point.
After elevation adjustment, signal readings
will be:
x LNBF A: 75%
x LNBF B: 95%
x LNBF C: 75%
Now your LNBF A is at higher point and
LNBF C is at lower point.
FINE-TUNING: TOROIDAL
