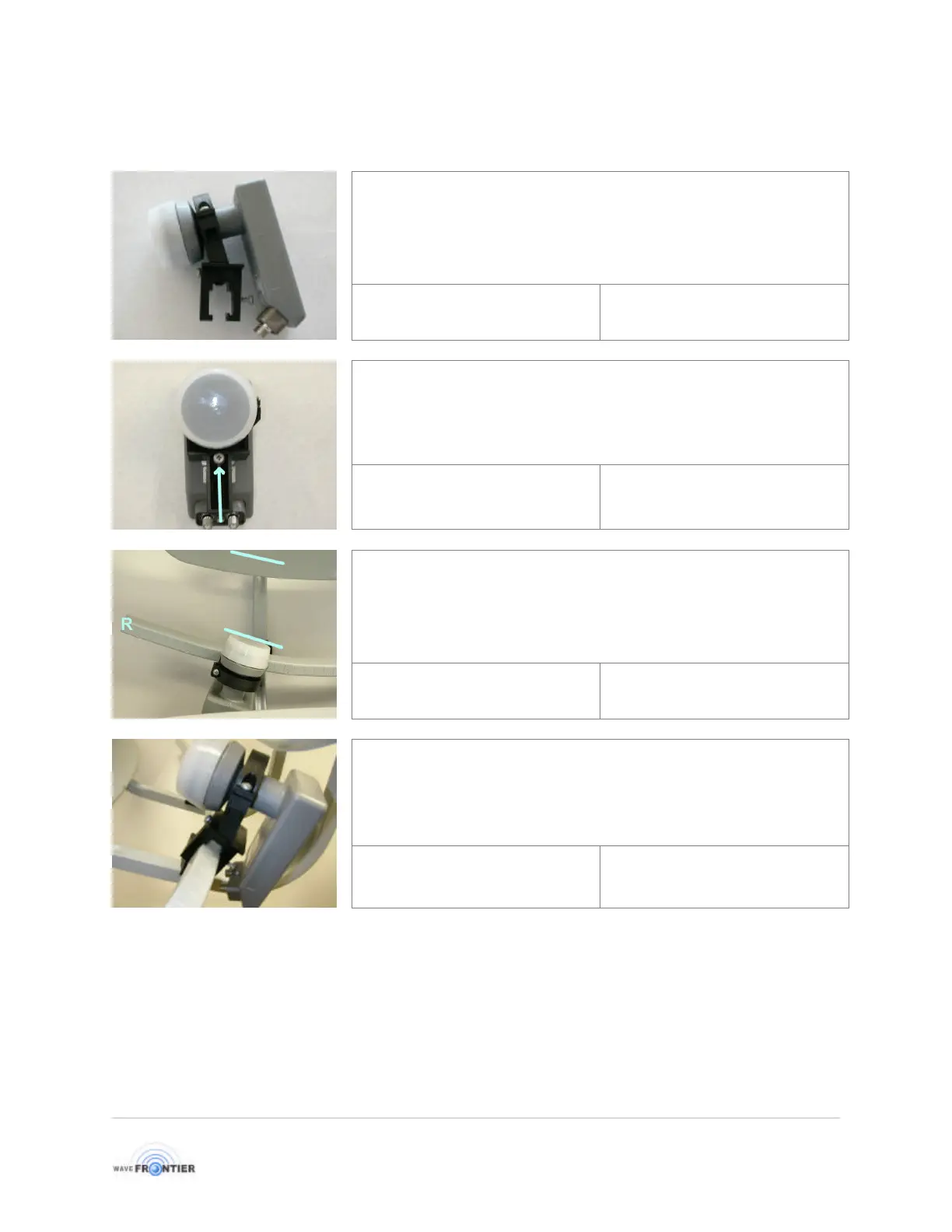

Place LNBF inside the holder and tighten another B6. You
may need to LNBF Adapter (A11) to secure LNBF depending
on the neck size of your LNBF.
Parts: B6, LNBF Tools: Phillips
Align the CENTER of LNBF Holder Unit at the R10 marking of
LNBF Guide.
Parts: Tools:
After inserting LNBF Holder Unit into guide, loosely tight screw
so that the unit can stay on the guide. You will tighten this
screw at the very end of this process. You will find that surface
of LNBF and Sub Reflectors are symmetrically aligned.
Parts: Tools: Phillips
Install other LNBF Units as you require using same method.
Parts: Tools:
