Proton Duo / Quick Start
5

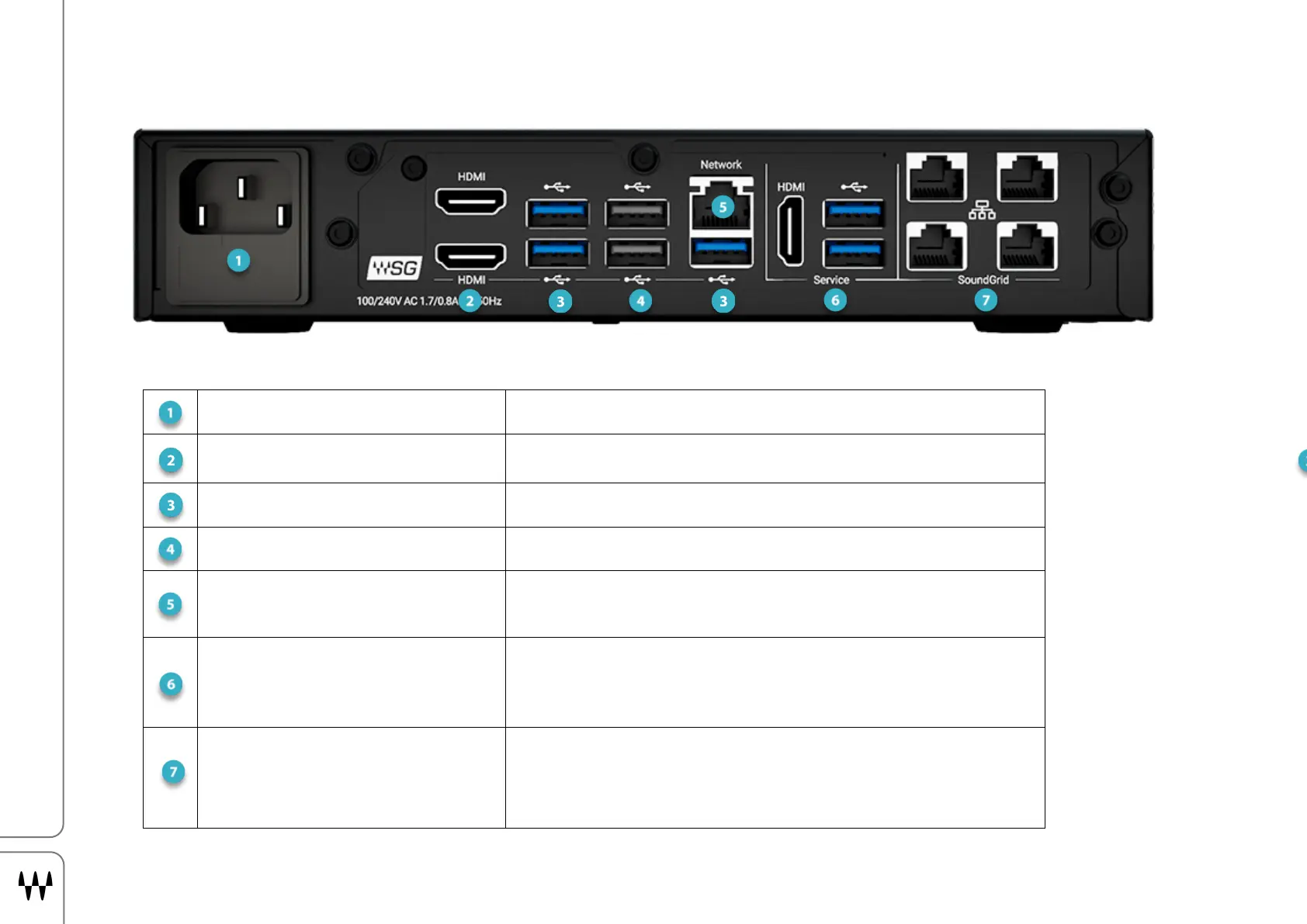

Proton Duo: Rear Panel
IEC power connector
100~240 VAC 50/60 Hz, 65 W; auto switching
2x HDMI ports
The port support resolutions from 1280x768 to 1920x1080.
3x USB 3.0 ports
2x USB 2.0 ports
Network port
RJ-45 Gb Ethernet connector. Use this 1 Gb port for all non-
SoundGrid networks, including internet.
Service ports
1x HDMI and 2x USB 3 ports.
The service section is used for server debugging and
troubleshooting. Do not use these ports for normal operation.
Waves SoundGrid switch
The 1 Gb 4-port switch connects to SoundGrid I/Os and
other SoundGrid networks. For additional connections, add
an approved 1 switch. Do not use this port for other
purposes.
