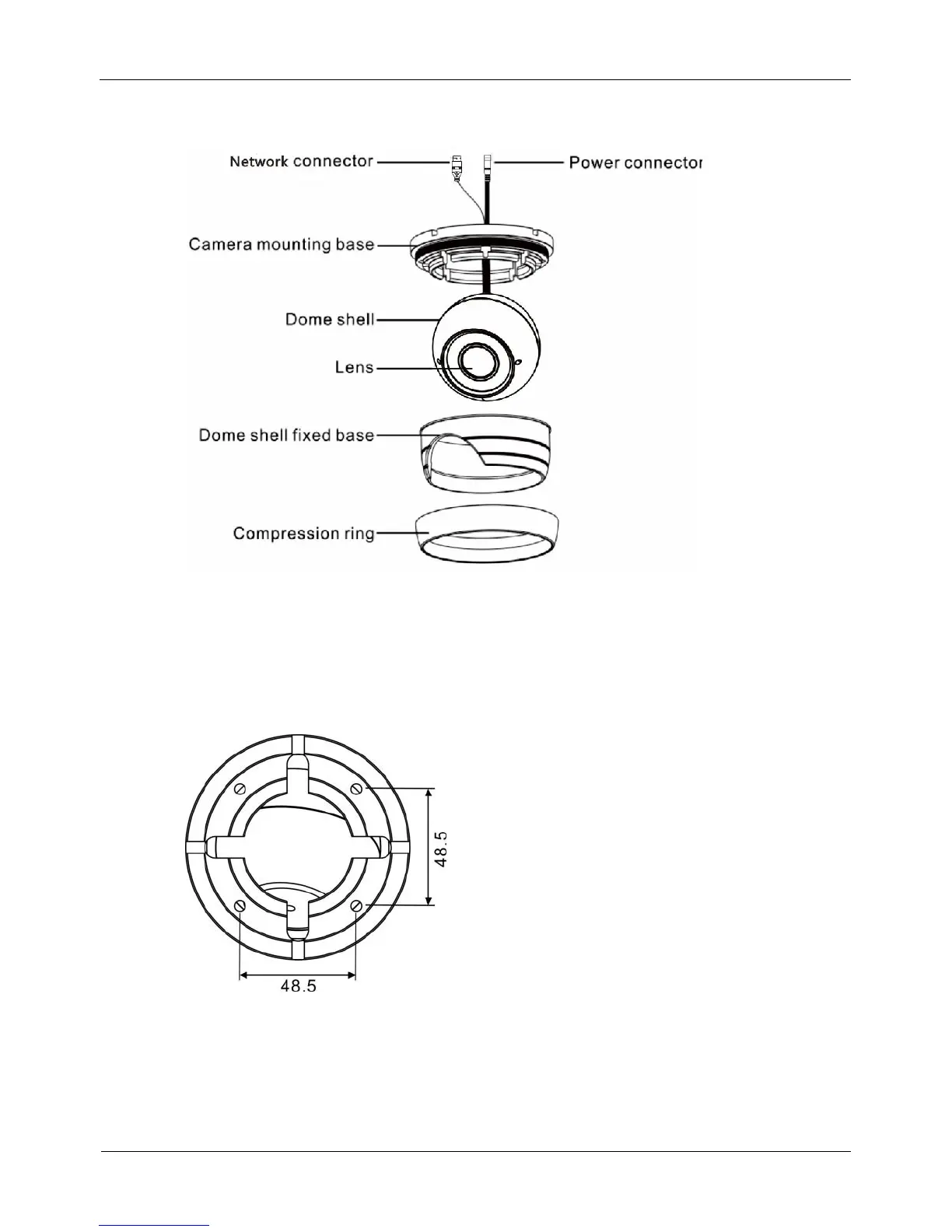

Figure 2-3 Camera components
Step 2 Use the base as drill template, drill holes on the ceiling or wall, and reserve the cable
entries of the video/power cables.
Figure 2-4 and Figure 2-5 shows the dimensions of the camera mounting base.
Figure 2-4 Dimensions of the 0E-HDD1MP28 and 0E-HDD2MP28 mounting base
