13.3 Dimensions and minimum distances Type S27
Note
For dimensions by type see table „13 Technical Data“ on page 30.
If the cover plate cannot be removed, a distance of >100mm should be maintained above the system to allow the air fil-
ter to be removed and cleaned.
Fig.20
>50
(100)
>40
(100)
>40
(100)
>20
(150)
L
D
H
>50
(100)

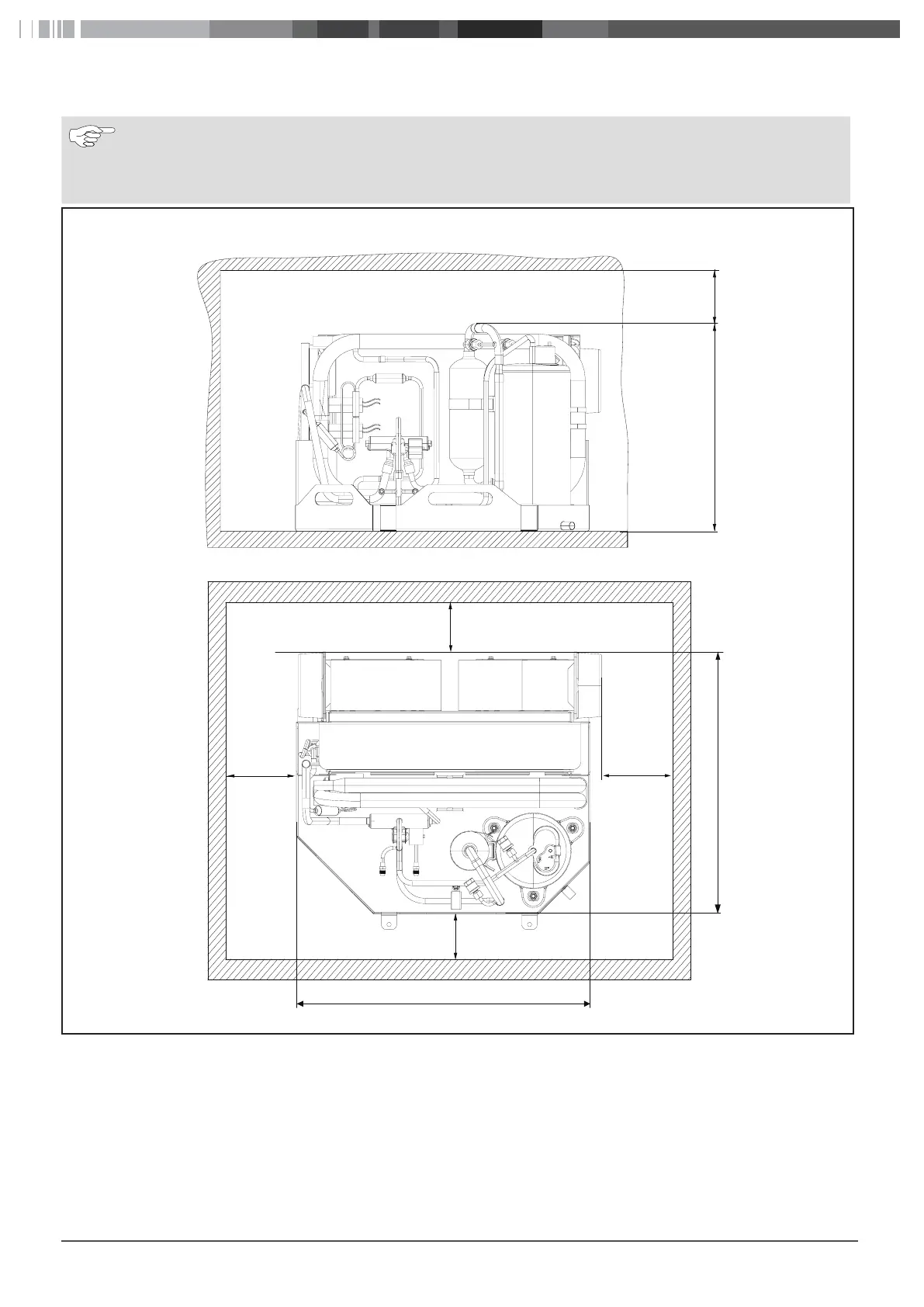

Dimensions and minimum distances Type S27 (mm)
LxDxH: See table „13 Technical Data“ on page 30.
> xx : Minimum distance (mm)
> (xx): Recommended distance (mm)
