BlueCool S-Series 37
14.3 Wiring diagrams

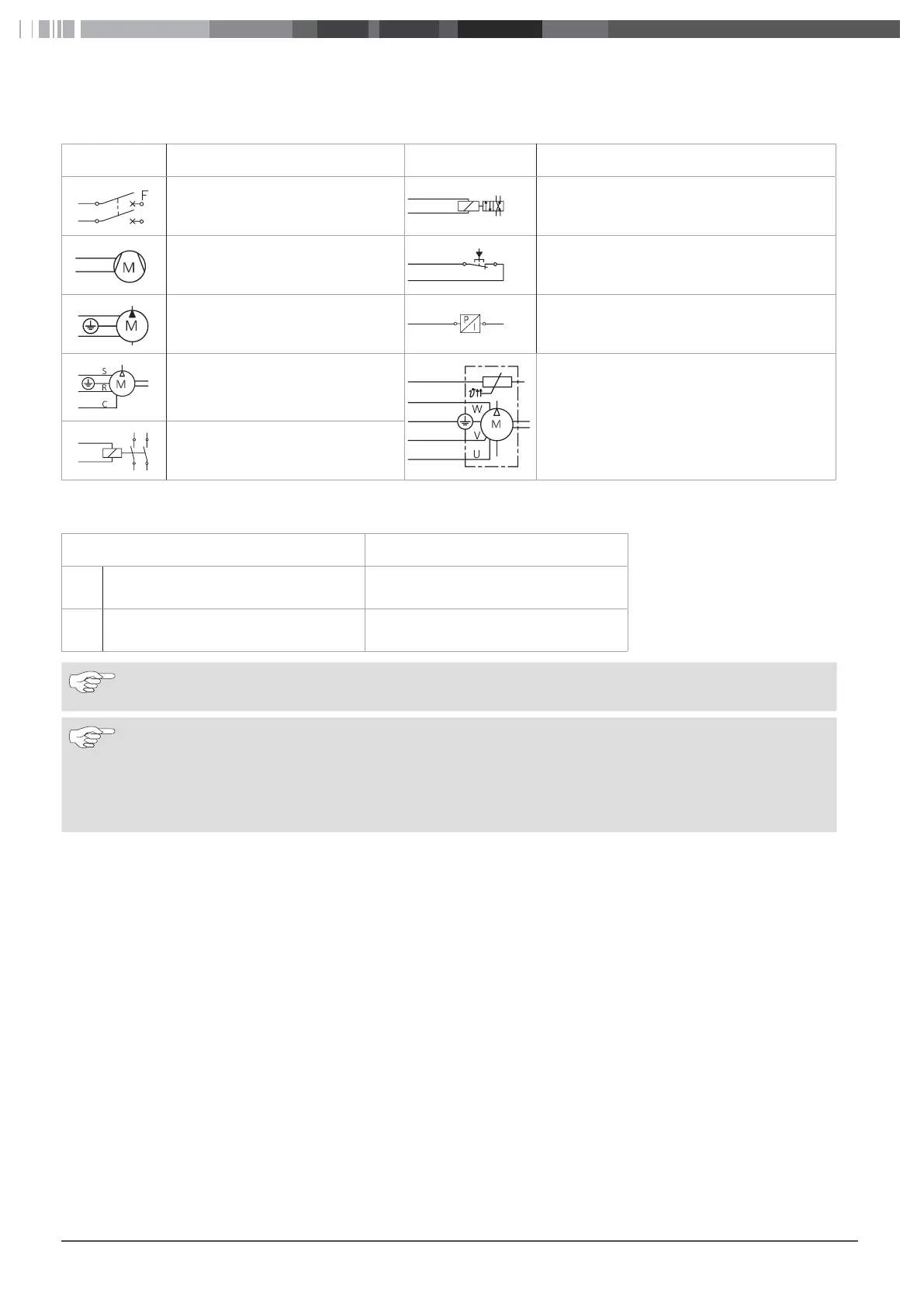

14.3.1 Wiring diagram, overview of symbols
Symbol Description Symbol Description
Line fuse protection 4/2-way reversing valve
Fan Pressure switch
Sea water pump sensor
Compressor
Compressor with temperature sensor
Relay
14.3.2 Line fuses
Line fuse protection Values
F1 Compressor Max. 20 A
F2 Power supply Max. 16 A
Note
*: Use Type K or C circuit breaker conforming to EN IEC 60898-1.
Notes
The BlueCool MyTouch control element is compatible with the BlueCool S-Series if the following two conditions are
met:
■
Pc-board with part number WBCL050930B or higher installed.
■
Firmware version for BlueCool S-Series 3.0 or higher used.
