PARTS LIST - WEBC26 Machine
Item
No.
Part No. Descrip
on Qty
Item
No.
Part No. Descrip
on Qty
1 WE61270030148 Gear Head Assembly 1
39 WE02080020006 Rubber Cover 6
1-2 WE03120020002 Retaining Ring 26 1
40 WE61270090005 Handle Assembly 1
1-3 WE03120010001 Retaining Ring 10 1
40-41 WE03010010049 Screw M5X35 4
1-4 WE03090010074 Bearing 6000-2RS/P5 2
40-42 WE70030160079 Handle 1
1-5 WE02020090063 Pinion 1
40-43 WE70030160032 Handle Clamp 1
1-6 WE03020030014 Screw M5×25 1
44 WE61270040018 Trigger Assembly 1
1-7 WE03020030021 Bolt M6×12 2
44-45 WE03010010029 Screw M5X14 1
1-8 WE70070010031 Gear Case 1
44-46 WE02020160213 Clamp 1
1-9 WE02020160725 Safety Guard 1
44-47 WE03030080002 Nut M5 3
1-10 WE03020020018 Screw M5×12 3
44-48 WE70030070164 Trigger Housing - Right 1
1-11 WE03090010072 Bearing 6000/P5 1
44-49 WE02080020054 Rubber Cover 1
1-12 WE02020090012 Gear 1
44-50 WE70030180091 Clamp 1
1-13 WE02020090029 Gear Sha
1
44-51 WE03010010022 Screw M5X20 2
1-14 WE03090010014 Bearing 6002-2RS/P5 1
44-52 WE02050050078 Stop Switch 1
1-15 WE03120020001 Stop Ring 32 1
44-53 WE70030070047 Tine 1
1-16 WE02020100020 Holder A 1
44-54 WE02020110039 Spring 1
1-17 WE02020100012 Holder B 1
44-55 WE02020110041 Spring 1
1-18 WE03040050014 Washer 10 1
44-56 WE70030070172 Safety Lever 1
1-19 WE03030010008 Nut M10×1.25 (Le
Hand) 1
44-57 WE02020110041 Spring 1
1-20 WE03060020004 Pin 2×16 2
44-58 WE70030070074 Thro le Lever 1
21 WE70080060045 Clutch Assembly 1
44-59 WE02050040045 Electrical Cable 1
21-22 WE02020050040 Clutch Drum 1
44-60 WE03010010046 Screw M5X30 1
21-23 WE03120020004 Stop Ring 35 1
44-61 WE70030070216 Trigger Housing - Le
1
21-24 WE03090010070 Bearing 6202-2RS/P5 1
44-62 WE03030010005 Nut M6 2
21-25 WE03120010005 Stop Ring 15 1
44-63 WE61350020002 Tube 1
21-26 WE70070060032 Clutch Case 1
64 WE70080120227 Safety Guard Assembly 1
21-27 WE02080020104 Rubber Cover 1
64-65 WE70030030786 Safety Guard 1
21-28 WE03010010056 Screw M5×14 1
64-66 WE70030180314 Guard Shield 1
21-29 WE03010010058 Screw M5×25 2
64-67 WE03010040025 Screw ST4.2×13 2
21-30 WE70070080038 Clamp B 1
64-68 WE02020070102 Knife 1
21-31 WE70070080039 Clamp A 1
69 WE02020160712 Bracket 1
32 WE03010010061 Screw M6×20 6
70 WE02060040165 Blade 1
33 WE70030180133 Harness Clamp 1
71 WE02050220013 Nylon Cu
er Head 1
34 WE70030160007 Clamp 1
72 WE02050060020 Harness Assembly 1
35 WE03020020012 Screw M5×20 1
73 WE70080010003 Fuel/Oil Mixer Bo le 1
36 WE02010010215 Sha
(26*1.5*1500) 1
74 WE03080030011 Spark Plug Wrench 1
37 WE02020060006 Drive Sha
(1540mm) 1
75 WE03080010004 Allen Key 1
38 WE02040010006
Oil-Bearing
（
8*14*14)
6
76 WE03080010003 Allen Key 1

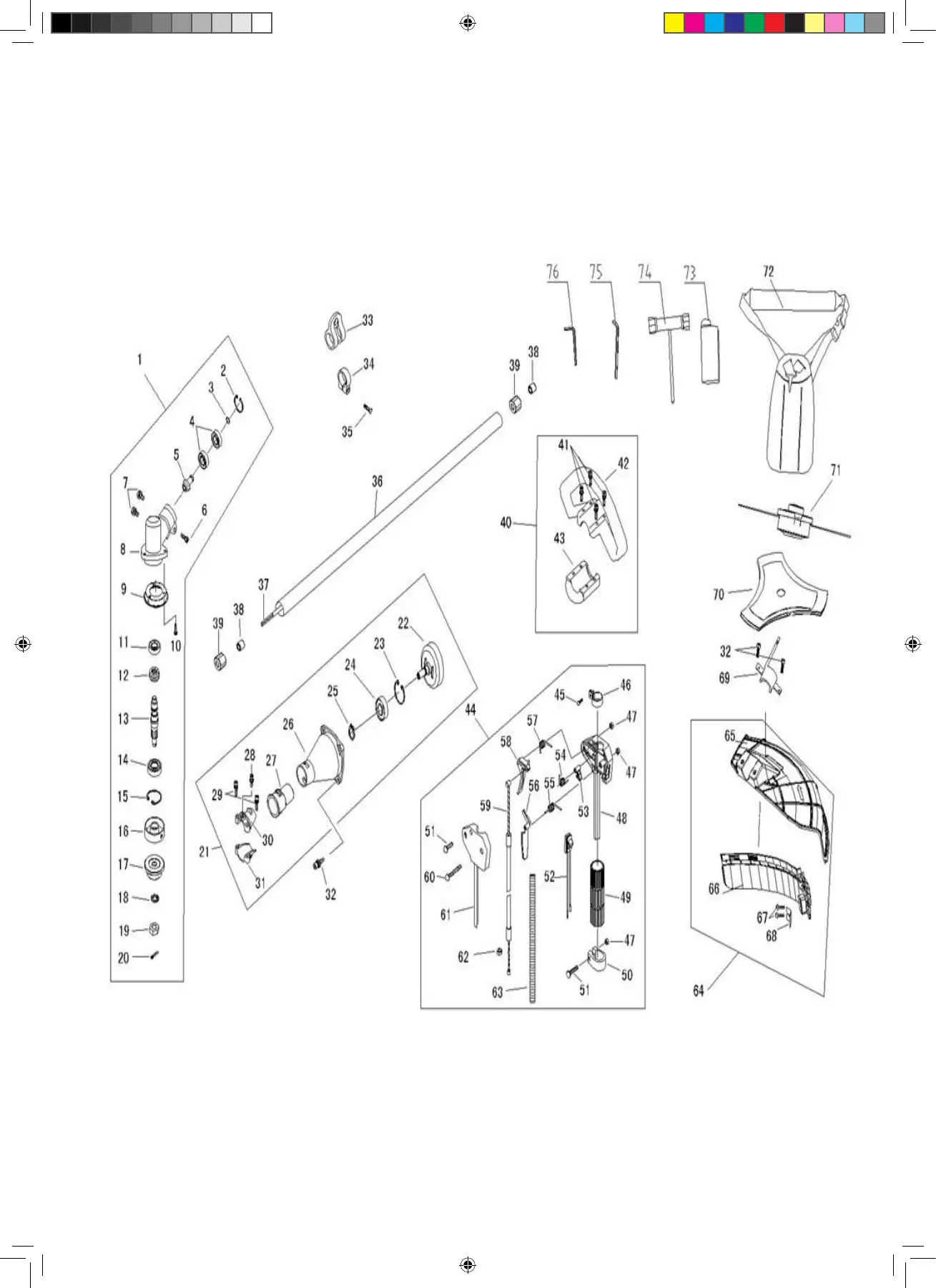

PARTS DIAGRAM - WEBC26 Machine
