Webb WEBC26 - Page 24

PARTS LIST - WEBC33 &WEBC43 Machine
Item
No
Webb Part No
Webb
Descrip on
Qty
Item
No
Webb Part No Webb Descrip
on Qty
Item
No
Webb Part No
Webb
Descrip on
Qty
1 WE61270030148
Gear Head
Assembly
1 37 WE70030160007 Clamp 1 72 WE02020160712 Bracket 1
2 WE03120020002
Retaining
Ring 26
1 38 WE03020020012 Screw M5x20 1 73 WE03010010060
Screw
M6x20
4
3 WE03120010001
Retaining
Ring 10
1 39 WE02010010242 Pipe(26x1.5x1500) 1 74 WE02060040165 Blade 1
4 WE03090010074
Bearing
6000-2RS/P5
2 40 WE02020060018
Drive Sha
(1540mm)
1 75 WE02050220013
Nylon Cu er
Head
1
5 WE02020090063 Pinion 1 41 WE02040010006
Oil-
Bearing
（
8x14x14)
6
76 WE02050060020
Harness
Assembly
1
6 WE03020030014
Screw
M5x25
1 42 WE02080020006 Rubber Cover 6 77 WE70080010003
Mixing
Bo
le
1
7 WE03020030021 Bolt M6x12 2 43 WE61270090005 Handle Assembly 1 78 WE03080030011
Double End
Tubular
Wrench
1
8 WE70070010031 Gear Case 1
44 WE03010010048 Screw M5x35 4
79 WE03080010004 Allen Key 1
9 WE02020160725 Safety Guard 1
45 WE70030160079 Handle 1
80 WE03080010003 Allen Key 1
10 WE03020020018
Screw
M5x12
3
46 WE70030160032 Handle Clamp 1
105 WE70080080010
Sha
Assembly
1
11 WE03090010072
Bearing
6000/P5
1
47 WE61270040033 Trigger Assembly 1
81 WE03010040037
Screw
ST2.9x10
1
12 WE02020090012 Gear 1
48 WE03010010029 Screw M5x14 1
82 WE70030070003 Bu on 1
13 WE02020090029 Gear Sha
1
49 WE02020160213 Clamp 1
83 WE02020110044 Spring 1
14 WE03090010014
Bearing
6002-2RS/P5
1 50 WE03030080002 Nut M5 3 84 WE70030070092 Lock Pin 1
15 WE03120020001
Retaining
Ring 32
1 51 WE70030070164
Trigger Housing
Right
1 85 WE70030070051 Handgrip 1
16 WE02020100020 Holder A 1
52 WE02080020053 Rubber Cover 1
86 WE02020110028 Spring 1
17 WE02020100012 Holder B 1
53 WE70030180090 Clamp 1
87 WE70030070167 Casing Right 1
18 WE03040050014 Washer 10 1
54 WE03010010022 Screw M5x20 2
88 WE03010040029
Screw
ST2.9x18
2
19 WE03030010008
Le Nut
M10x1.25
1
55 WE02050050078 Stop Switch 1
89 WE03010010064
Screw
M5x27
1
20 WE03060020004 Pin 2x16 2
56 WE70030070047 Tine 1
90 WE02050040048 Cable 1
21 WE70080060046
Clutch
Assembly
1 57 WE02020110039 Spring 1 91 WE03030010004 Nut M6 2
22 WE02020050026 Clutch Drum 1
58 WE02020110041 Spring 1
92 WE01040030001 Tube 710mm 1
23 WE03120020004
Retaining
Ring 35
1 59 WE70030070172 Safety Lever 1 93 WE02050050092 Stop Bu
on 1
24 WE03090010070
Bearing
6202-2RS/P5
1 60 WE02020110040 Spring 1 94 WE70030070192 Handgrip 1
25 WE03120010005
Retaining
Ring 15
1 61 WE70030070074 Thro
le Lever 1 95 WE02020110029 Spring 1
26 WE70070060008 Clutch Case 1
62 WE02050040045 Cable 1
96 WE70030070219 Casing Le 1
27 WE02080010025
Rubber
Cover
1 63 WE03010010046 Screw M5x30 1 97 WE03030060008 Nut M5 1
28 WE03010010056
Screw
M5x14
1 64 WE70030070216 Trigger Housing Le
1 106
Cow
Horn
Handle
Assembly
1
29 WE03010010058
Screw
M5x25
2 65 WE03030010004 Nut M6 2 98 WE70070080055 Upper Cap 1
30 WE70070080061 Clamp B 1 66 WE61350020002 Tube 1 99 WE02080020123
Rubber
Cover
1
31 WE70070080062 Clamp A 1 67 WE70080120227
Safety Guard
Assembly
1 100 WE02020160512
Le
Handgrip
1
32 WE02080010026
Rubber
Cover
1 68 WE70030030786 Safety Guard 1 101 WE02020160462
Right
Handgrip
1
33 WE03040020016 Washer 4
69 WE70030180314 Cover 1
102 WE70070080053 Bracket 1
34 WE03050010013 Washer 4
70 WE03010040025 Screw ST4.2x13 2
103 WE70070080054 Cap Lower 1
35 WE03010010080
Screw
M6x16
4 71 WE02020070102 Knife 1 104 WE03010010058
Screw
M5x25
6
36 WE70030180133
Harness
Clamp
1

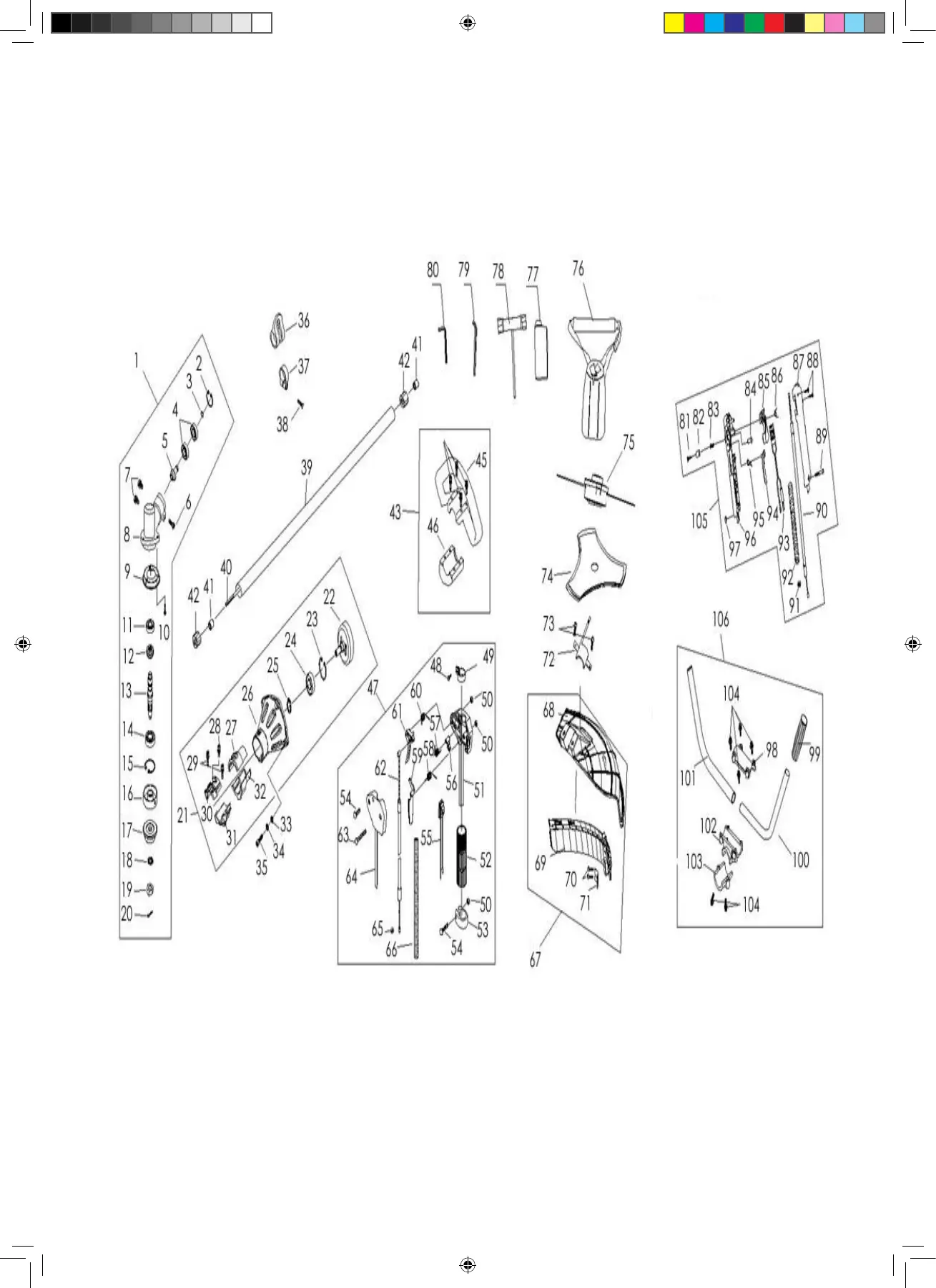

PARTS DIAGRAM - WEBC33 & WEBC43 Machine
