Webb WEBV26 - PARTS DIAGRAM - WEBV26 Machine

PARTS LIST - WEBV26 Machine
Item No Part No. Descripon Qty
Item No Part No. Descripon Qty
1 WE70050010068 Tube A 1
32 WE03010040017 Screw ST4.2×10 1
2 WE70050010069 Tube B 1
33 WE02050050171 Stop Wire 1
3 WE03010060056 Screw M5×16 3
34 WE51010040002 Engine 1
4 WE03040020020 Washer 5 11
35 WE03040050022 Washer 1
5 WE70030030284 Connect Cover 1
36 WE02060020003 Recoil Pulley 1
6 WE03010060078 Screw M5×10 6
37 WE02060020009 Recoil Spring 1
7 WE70030180100 Safety Cover 1
38 WE'70080100004 Housing 1
8 WE02050050002 Safety Switch 1
39 WE03020020041 Screw M5×30 3
9 WE70030070032 Buon Connector 1
40 WE01050010009 Recoil Rope 1
10 WE03040050017 Washer 6 1
41 WE70030140010 Recoil Handle 1
11 WE70030180012 Fan Cover Screw 1
42 WE70050010070 Curved tube 1
12 WE70030030303 Dan Cover 1
43 WE02050040087 Throle Wire 1
13 WE02020160312 Spring sha 1
44 WE02050060050 Collecon Bag 1
14 WE02020110048 Spring 1
45 WE02050060022 Harness 1
15 WE70030010071 Rear Case 1
46 WE01040010003 Return Fuel Pipe(L=70) 1
16 WE03030020002 Nut M8×1 1
47 WE02080030025 Fuel Pipe Rubber Bung 1
17 WE02020070042 Shaer Tooth 1
48 WE01040010014 Inlet Fuel Pipe(L=220) 1
18 WE70030090006 Impellor 1
49 WE02050120002 Fuel Filter 1
19 WE03010010045 Screw M5×30 4
50 WE02110020026 Fuel Cap Assembly 1
20 WE02080020046 Le Handle Rubber Cover 1
51 WE03050010007 Washer 8 1
21 WE70030010055 Front Case 1
52 WE03040050005 Washer 23*8*1 1
22 WE02020160117 Pedestal 4
53 WE70050010066 Tube C 1
23 WE70050030063 Fuel Tank 1
54 WE70050010067 Tube D 1
24 WE'03010040057 Screw M5*20 4
55 WE02050070048 Recoil Rope Guide 1
25 WE70030160093 Lower Handle 1
56 WE02040030020 Bush 1
26 WE02020160398 Throle Lever Sha 1
57 WE02080030015 Wire Lead 1
27 WE70030070109 Throle Lever Handle 1
58 WE03110020023 “O” Sealing Washer 25x2 1
28 WE02050050111 Stop Switch 1
59 WE03010060076 Screw M5×30 2
29 WE02050050171 Short Stop Wire 2
60 WE03020020018 Screw M5×10 1
30 WE70030160048 Upper Handl;e 1
61 WE03050010015 Washer 5 4
31 WE02080020046 Right Handle Rubber Cover 1
62 WE'03010040048 Screw NST5x16 11

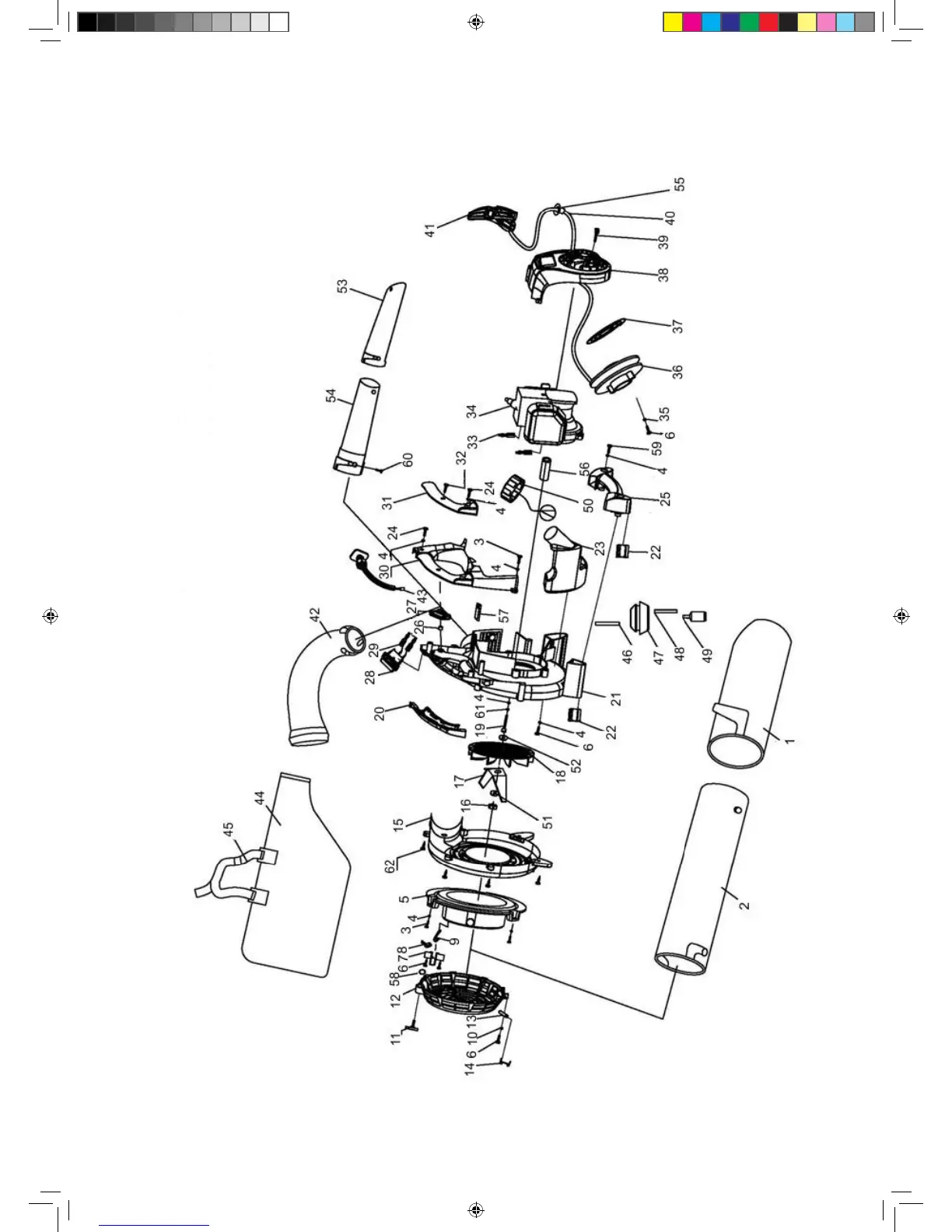

PARTS DIAGRAM - WEBV26 Machine
