Webb WEER36 - PARTS DIAGRAM WEER36

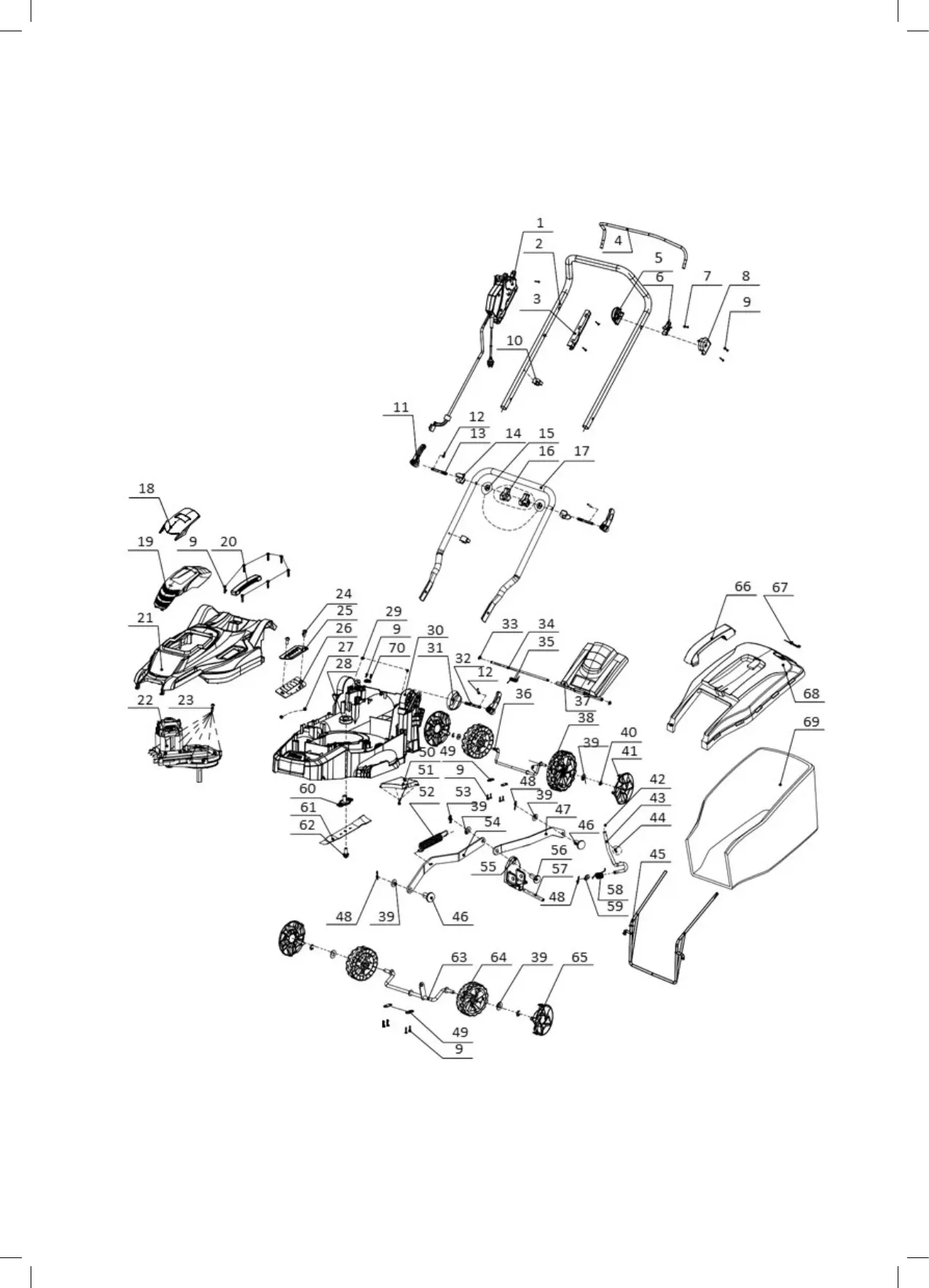

PARTS DIAGRAM – WEER36 (1938123001)
PARTS LIST – WEER36 (1938123001)
Item
No.
Part No.
Description
Qty
Item
No.
Part No.
Description
Qty
1
WE125-4080063
Switch Box Assembly
1
36
WE125-103050259
Rear Axle
1
2
WE125-103080036
Top Handle
1
37
WE124-301070916
Grass Flap
1
3
WE125-301062831
Switch Box Small Cover
1
38
WE125-301070924
Rear Wheel
2
4
WE125-103990876
Operator Handle
1
39
WE125-104010258
Washer
7
5
WE125-301070717
Left Permanent Seat
1
40
WE125-104050024
Split Washer
4
6
WE125-301062827
Left Clamp
1
41
WE125-301070923
Rear Wheel Trim
2
7
WE125-104040082
M4*8 Bolt
3
42
WE125-301062852
Height Adjuster
1
8
WE125-301070716
Left Fix Cover
1
43
WE125-103990880
Adjusting Lever
1
9
WE125-104030136
St4.2X15Bt Screw
21
44
WE125-104030203
M4*8 Screw
2
10
WE125-301070806
Cable Clip
2
45
WE125-103020130
Collector Support
1
11
WE125-301070899
Fixed Wrench
4
46
WE125-301062851
Pin Shaft
2
12
WE125-103990795
Spring Pin
4
47
WE125-103990799
Connecting Rod
1
13
WE125-104040202
M8×73 Bolt
2
48
WE125-103990811
Splitpin
3
14
WE125-301070779
Wrench Support
2
49
WE124-103990797
Press Plate
6
15
WE125-301070780
Knob Washer
2
50
WE125-301070837
Axle Cover
1
16
WE125-301070781
Handle Knob & Nut
2
51
WE125-104030135
St4.2*12 Screw
4
17
WE125-103020129
Lower Handle
1
52
WE125-103060289-1
Tension Spring
1
18
WE124-301070910
Motor Cover
1
53
WE125-103990750
Pin
1
19
WE124-301070911
Air Window Cover
1
54
WE125-103990798
Front Connecting Rod
1
20
WE124-301070396F
Motor Cover Carry Handle
1
55
WE125-301062854
Adjusting Bracket
1
21
WE125-301070920
Upper Deck
1
56
WE125-301062853
Long Pin Shaft
1
22
WE125-4070213
Motor Assembly
1
57
WE125-103050261
Adjusting Bracket Shaft
1
23
WE125-104030423
St4.2X18 Screw
7
58
WE125-103060285
Torsional Spring
1
24
WE125-104030300
M5×12 Screw
2
59
WE125-104010257
Washer
7
25
WE125-103990881
Height Adjuster Back Plate
1
60
WE125-301070794
Blade Support Plate
1
26
WE125-105020068
Gland
1
61
WE125-103030127
Blade
1
27
WE125-104020017
Locknut
2
62
WE124-104040205
Frange Bolt
1
28
WE124-103050242
Shield Bearing
1
63
WE125-103050274
Front Axle
1
29
WE125-104020077
Hex Nut
2
64
WE125-301062850
Front Wheel
2
30
WE125-301070921
Upper Deck
1
65
WE125-301062849
Front Wheel Trip
2
31
WE125-301070902
Lower Handle Adjuster
2
66
WE124-301070580P
Collector Carry Handle
1
32
WE125-104040215
Adjusting Bolt
2
67
WE124-301062859
Flip
1
33
WE124-104050028
Split Washer
2
68
WE124-301070917
Collector Top
1
34
WE124-103050260
Grass Flap Axle
1
69
WE125-105011067
Lower Collector
1
35
WE124-103060300
Torsional Spring
1
70
WE125-301990135
Pressing Line Plate
1
