CABLE CLIP

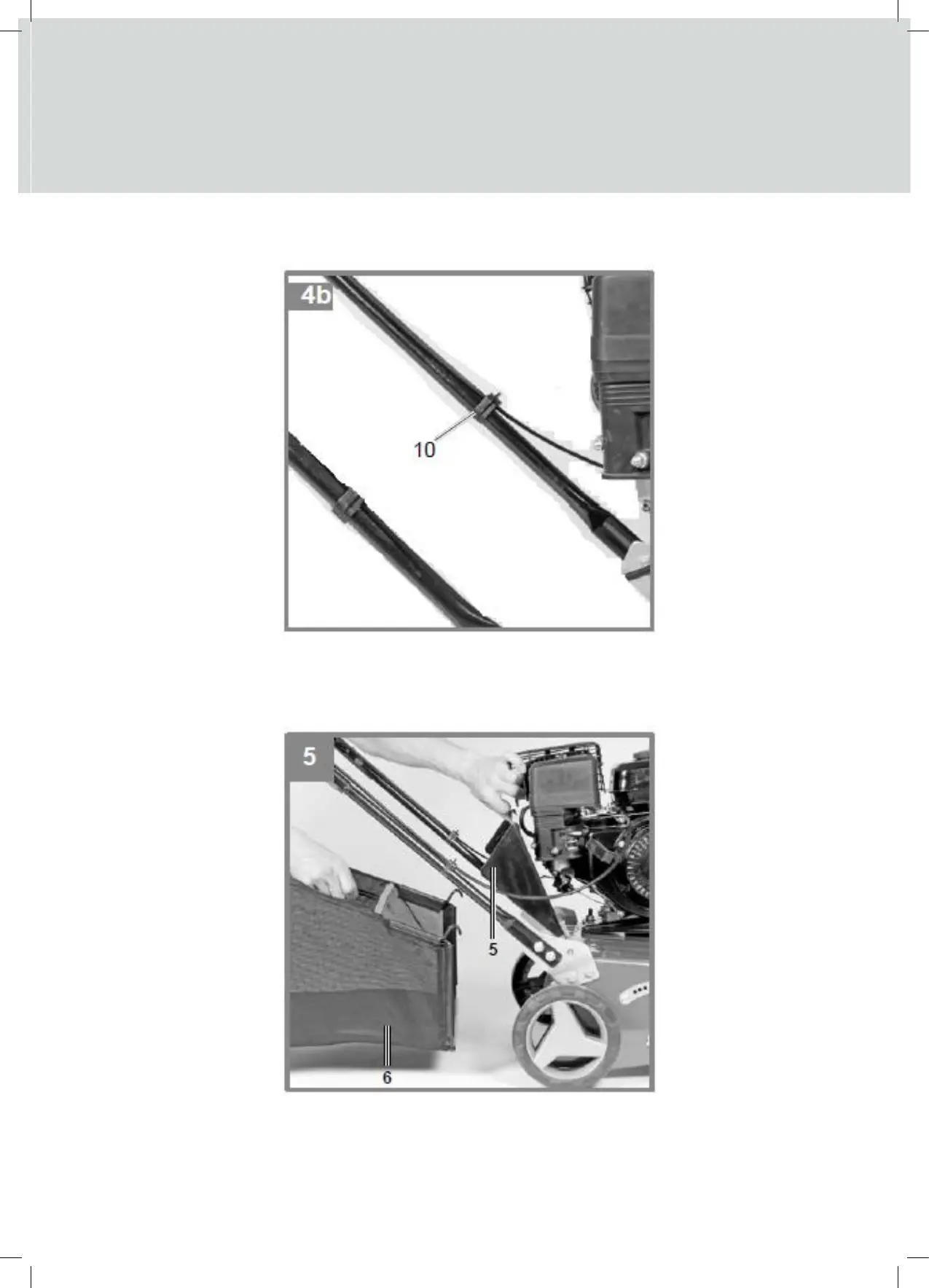

1. Secure the operating cable of the machine to the handle assembly, by placing the cable into the cable clip
and then place the cable clip onto the handle assembly
COLLECTOR
Important: Before you attach the collector, please ensure that the engine is switched off
and the blade/tines are not rotating.
1. Lift the rear flap and hook the collector on to the bar of the rear flap.
2. Place the rear flap onto the collector to secure.
LOWER HANDLE
1. Attach the lower handle to the handle brackets affixed to the deck of the scarifier/aerator.
2. The lower handle sits on the outside of the handle brackets. Line up the fixing holes of the lower handle
with those on the handle brackets.
3. Place the 4x lower handle bolts through the lower handle and the handle bracket and secure with the 4x
lower handle nuts and tighten with the relevant sized spanner (Not supplied).
UPPER HANDLE
1. Place the upper handle onto the outside of the lower handle and line up the fixing hole of both handles.
2. Secure with the 2x upper handle bolts and 2x wing nuts. The wing nuts should sit on the outside of the
handle assembly. Tighten until finger tight.
To Next Page
