ATTENTION!
• Never seal the room - where this
device will be used - completely
airtight. This will prevent under
pressure in this room. Under pressure
can disrupt the safe operation of
geysers, ventilation systems, ovens, etc.
• Failing to follow the instructions may
lead to nullification of the guarantee
on this device.
B
INSTALLATION INSTRUCTIONS
Preparation
G
NOTE:
All the illustrations in the manual are for explanation purpose only.
Your machine may be slightly different. The actual shape shall prevail.
The unit can be controlled by the unit control panel alone or with the
remote controller. This manual does not include Remote Controller
Operations, see the <<Remote Controller Instruction>> packed with the
unit for details.

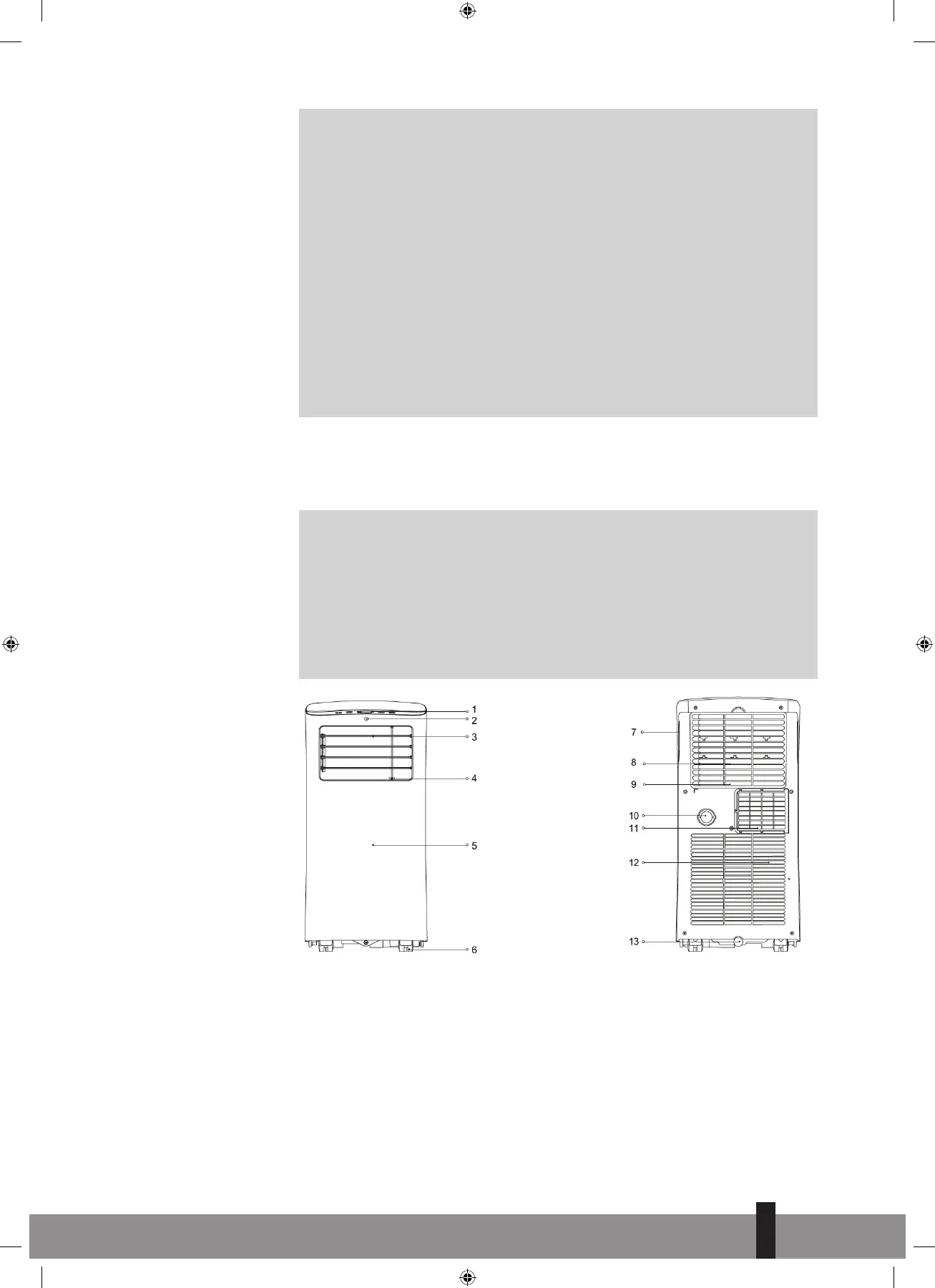

1. Control panel 8. Air filter
2. Remote signal receptor 9. Upper air intake
3. Horizontal louver control
lever (adjust manually)
10. Drain outlet
4. Vertical louver control lever
(adjust manually)
11. Air outlet
5. Panel 12. Lower air intake
6. Caster 13. Bottom tray drain outlet
7. Handle (both sides)
Front Rear
