WEBSTER CH IMAGO
BULLETIN 79P038
MODEL 79 AND MODEL 80
AFTER ADJUSTING
WORM GEAR ASSEMBLY.
BEND ROCKER ARM
FOR CENTERING IN SLOT,

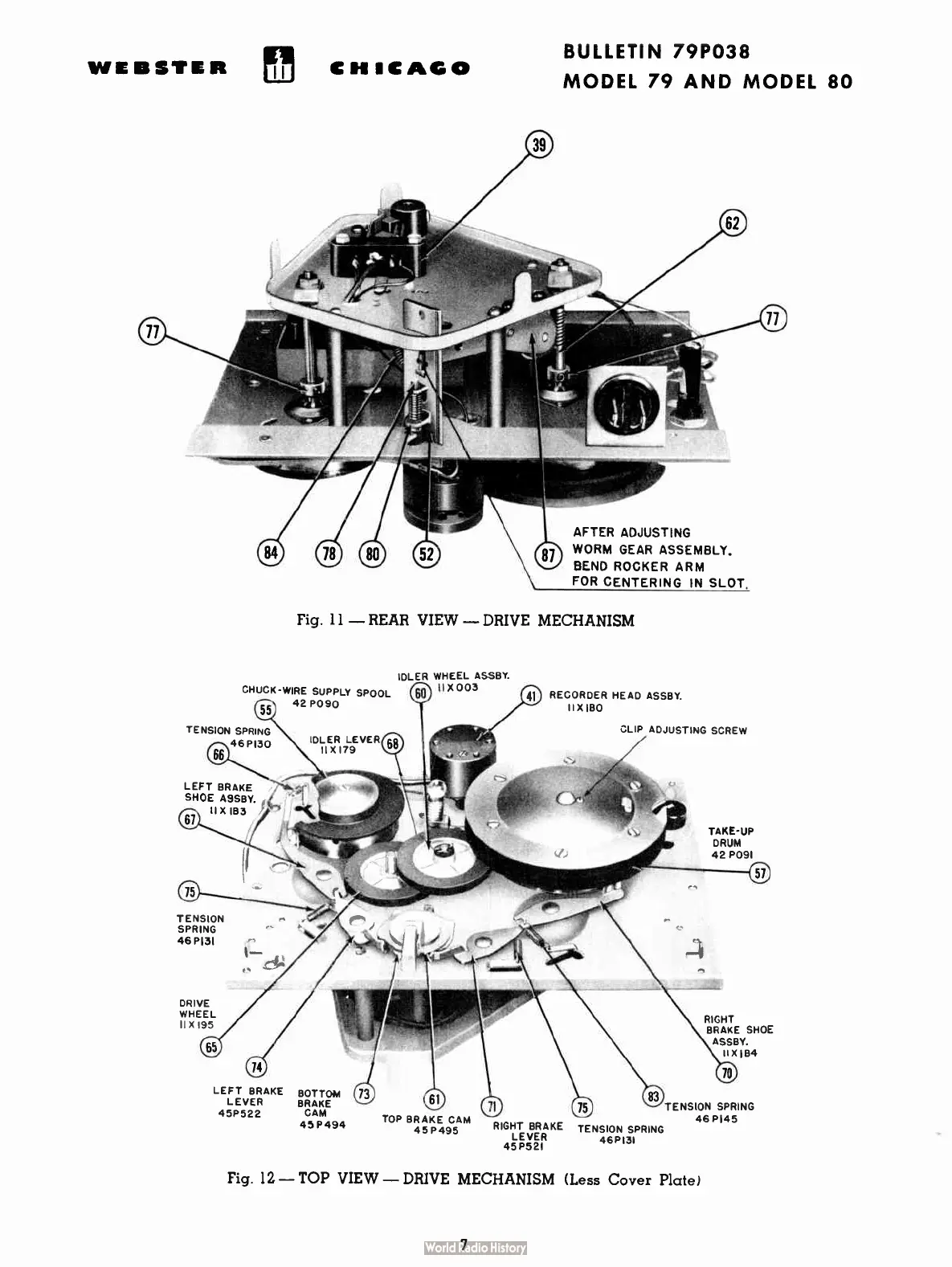

Fig. 11 — REAR VIEW — DRIVE MECHANISM
IDLER WHEEL ASSBY.
CHUCK - WIRE SUPPLY SPOOL n II X 003
42 P090
TENSION SPRING
46 P130
LEFT BRAKE
SHOE ASSBY.
II X 183
TENSION
SPRING
46 PI31
DRIVE
WHEEL
II X 195
LEFT BRAKE
LEVER
45P522
IDLER LEVER
11 X 179
BOTTOM
BRAKE
CAM
45 P494
TOP BRAKE CAM
45 P495
RECORDER HEAD ASSBY.
II X 180
RIGHT BRAKE
LEVER
45 P521
Cd
CLIP ADJUSTING SCREW
TENSION SPRING
46 P145
TENSION SPRING
46 PI31
TAKE-UP
DRUM
42 P091
RIGHT
BRAKE SHOE
ASSBY.
11X 184
Fig. 12 — TOP VIEW— DRIVE MECHANISM ( Less Cover Plate)
7
