WEBSTER CHICAGO 79 - Page 14

IDLER WHEEL ASSBY
CHUCK- WIRE SUPPLY SPOOL n 11 X 003
42 P090
TENSION SPRING
46 P130
LEFT BRAKE
SHOE ASSBY.
11 X 183
TENSION
SPRING
46 P131
DRIVE
WHEEL
II X 195
C IF
C- r4 ,
LEFT BRAKE
LEVER
45P522
IDLER LEVER
11 X 179
BOTTOM
BRAKE
CAM
45 P494
TOP BRAKE CAM
45 P495
RECORDER HEAD ASSBY.
I 1 X 180
RIGHT BRAKE
LEVER
45 P521

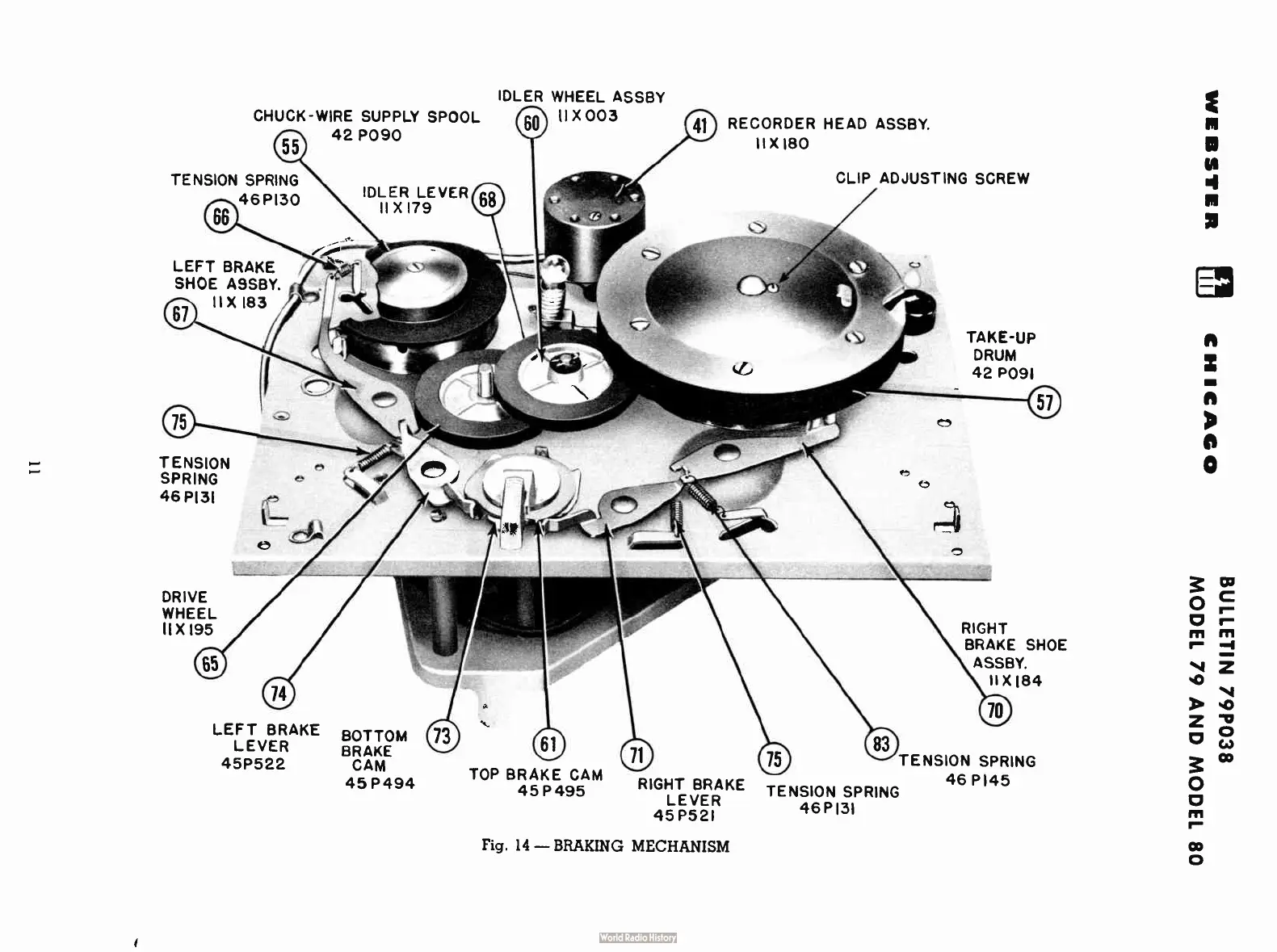

Fig. 14 — BRAKING MECHANISM
CLIP ADJUSTING SCREW
I •
TAKE-UP
DRUM
42 P091
RIGHT
BRAKE SHOE
ASSBY.
I1X184
TENSION SPRING
46 P145
TENSION SPRING
46 P131
