WEBSTER CHICAGO 79 - Page 17

III
CHICAGO
BULLETIN 79P038
MODEL 79 AND MODEL 80
BRAKE
EEL T
PAD
BRAKE
ARM
USE CARE IN
BENDING
CAM FOLLOWERS
BRAKES
REWIND
LUG HOLDS BRAKE OPEN
.5 rg_e
BEND CAM FOLLOWERS \
FOR ADJUSTING LUG S
SERIAL NOS. 5000 TO 17000
LUG- CENTER
OF SLOT
PULL RESISTANCE
ON WIRE
3/1'i OZ TO 5/16 OZ
L.GHT BRAKE
TAKE-UP DRUM
"'BEND FOR
HEAVIER
' BRAKE
BEND FOR
/7t
! LIGHTER
vd8R AK E
LIGHT
BRAKE
AND
SPRING
BRAKE FELT PAD
BRAKE ARM

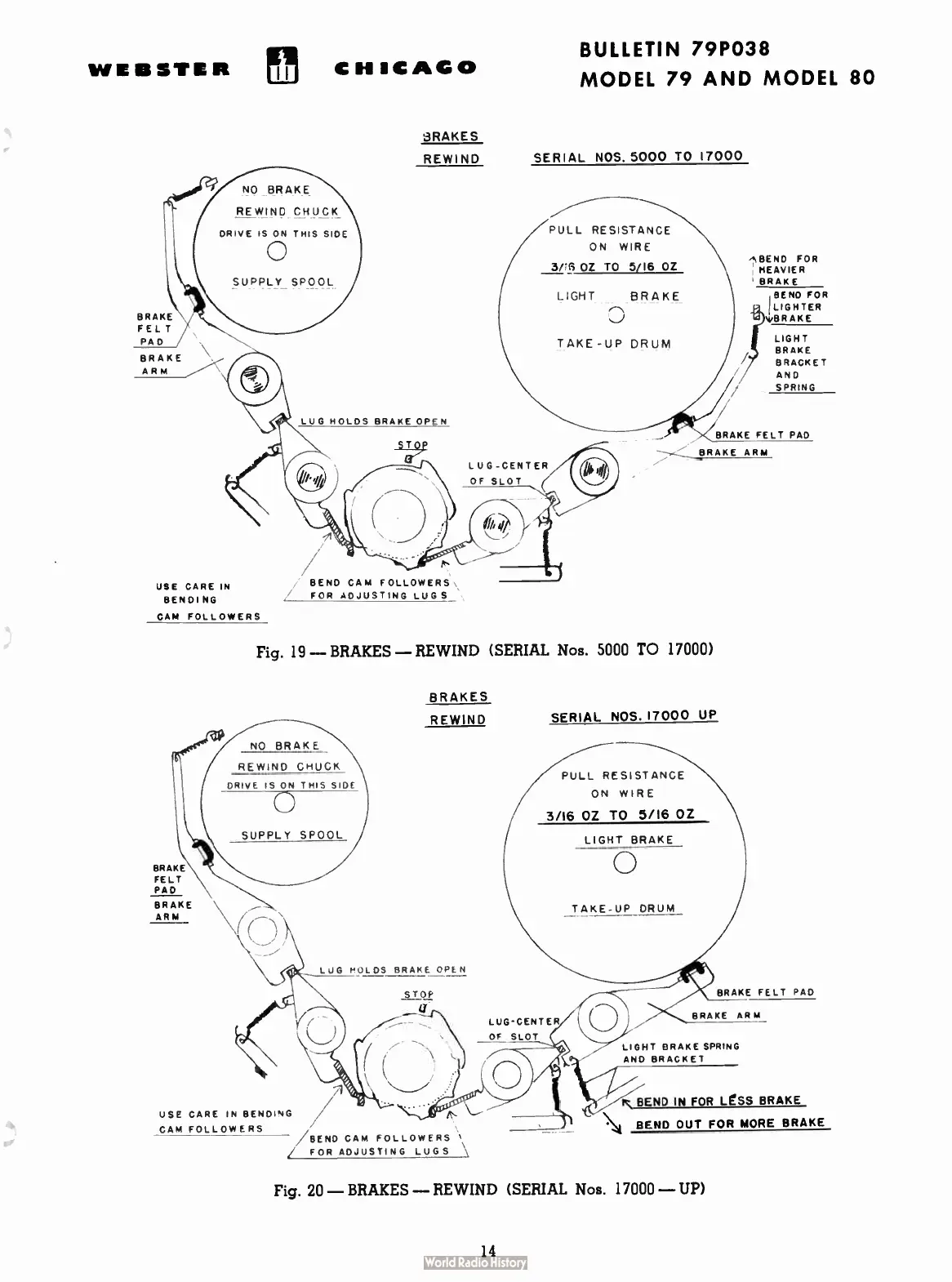

Fig. 19 — BRAKES — REWIND ( SERIAL Nos. 5000 TO 17000)
BRAKES
REWIND SERIAL NOS. 17000 UP
NO BRAKE
REWIND CHUCK
DRIVE IS ON THIS SIDE
BRAKE
FELT
PAD
BRAKE
ARM
LUG HOLDS BRAKE OPEN
STOP
USE CARE IN BENDING
CAM FOLLOW E RS
/BEND CAM FOLLOWERS
FOR ADJUSTING LUGS
7 -'
PULL RESISTANCE
ON WIRE
3/16 OZ TO 5/16 OZ
(
LUG- CENTER
OF SLOT
LIGHT BRAKE
o
TAKE-UP DRUM
BRAKE FELT PAD
BRAKE ARM
LIGHT BRAKE SPRING
AND BRAGKEI
/4IEND IN FOR LÉSS BRAKE
\ BEND OUT FOR MORE BRAKE
Fig. 20 — BRAKES — REWIND ( SERIAL Nos. 17000 — UP)
14
