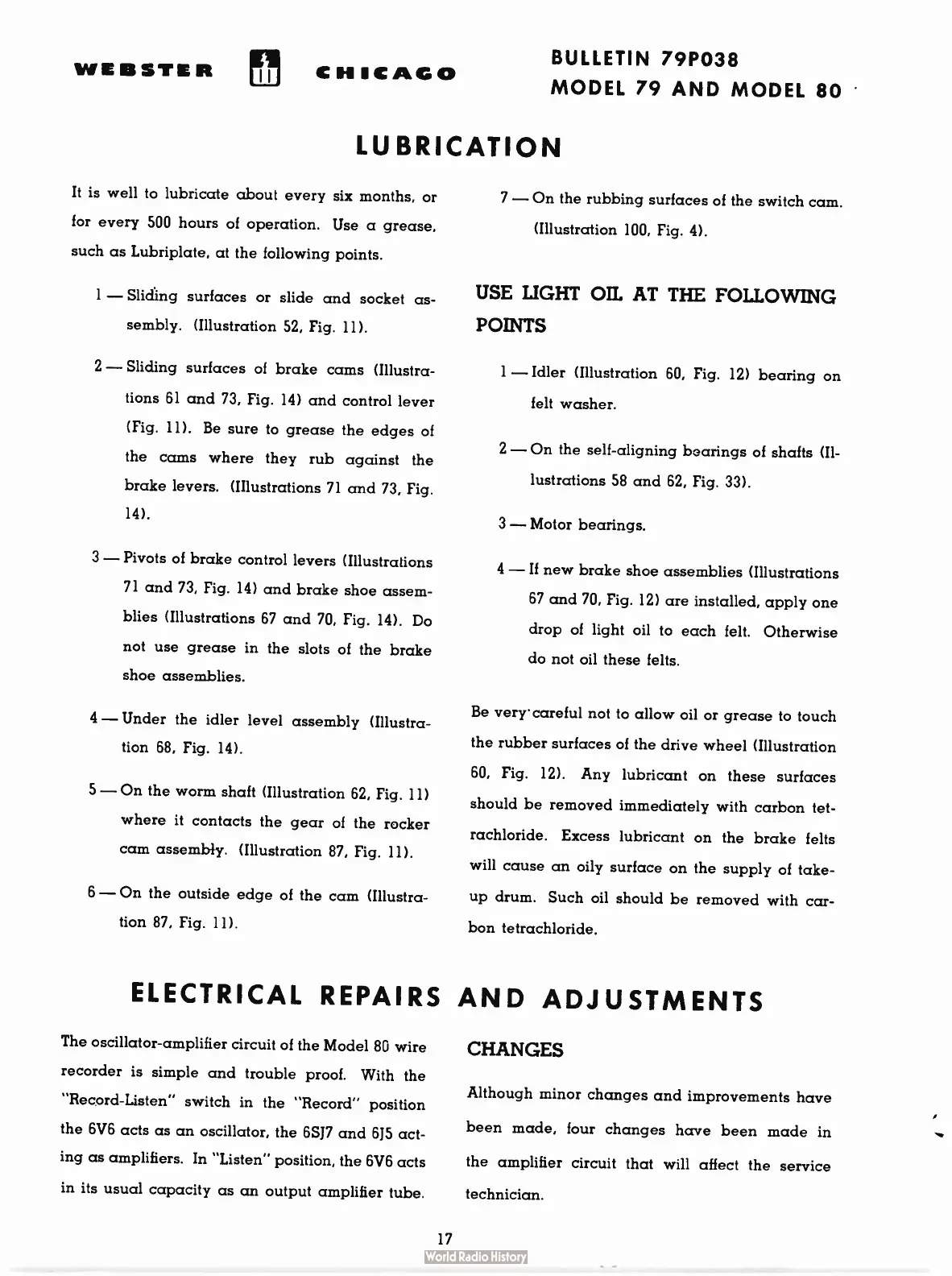

WEBSTER
CHICAGO
BULLETIN
79P038
MODEL
79
AND
MODEL
80
LUBRICATION
It
is
well
to
lubricate
about
every
six
months,
or
for
every
500
hours
of
operation.
Use
a
grease,
such
as
Lubriplate,
at
the
following
points.
1 —
Sliding
surfaces
or
slide
and
socket
as-
sembly. (
Illustration
52,
Fig.
11).
2 —
Sliding
surfaces
of
brake
cams (
Illustra-
tions
61
and
73,
Fig.
14)
and
control
lever
(Fig.
11).
Be
sure
to
grease
the
edges
of
the
cams
where
they
rub
against
the
brake
levers. (
Illustrations
71
and
73,
Fig.
14).
3 —
Pivots
of
brake
control
levers (
Illustrations
71
and
73,
Fig.
14)
and
brake
shoe
assem-
blies (
Illustrations
67
and
70,
Fig.
14).
Do
not
use grease
in
the
slots
of
the
brake
shoe
assemblies.
4 —
Under
the
idler
level
assembly (
Illustra-
tion
68,
Fig.
14).
5 —
On
the
worm
shaft (
Illustration
62,
Fig.
11)
where
it
contacts
the
gear
of
the
rocker
cam
assembly. (
Illustration
87,
Fig.
11).
6 —
On
the
outside
edge
of
the
cam (
Illustra-
tion
87,
Fig.
11).
7 —
On
the
rubbing
surfaces
of
the
switch
cam.
(Illustration
100, Fig.
4).
USE
LIGHT
OIL
AT
THE
FOLLOWING
POINTS
1 —
Idler (
Illustration
60,
Fig.
12)
bearing
on
felt
washer.
2 —
On
the
self-
aligning
bearings
of
shafts (
Il-
lustrations
58
and
62,
Fig.
33).
3 —
Motor
bearings.
4 —
If
new
brake
shoe
assemblies (
Illustrations
67
and
70,
Fig.
12)
are
installed,
apply
one
drop
of
light
oil
to
each
felt.
Otherwise
do
not
oil
these
felts.
Be
very careful
not
to
allow
oil
or
grease
to
touch
the
rubber
surfaces
of
the
drive
wheel (
Illustration
60,
Fig.
12).
Any
lubricant
on
these
surfaces
should
be
removed
immediately
with
carbon
tet-
rachloride.
Excess
lubricant
on
the
brake
felts
will
cause
an
oily
surface
on
the
supply
of
take-
up
drum.
Such
oil
should
be
removed
with
car-
bon
tetrachloride.
ELECTRICAL
REPAIRS
AND
ADJUSTMENTS
The
oscillator-
amplifier
circuit
of
the
Model
80
wire
recorder
is
simple
and
trouble
proof.
With
the
"Record-
Listen"
switch
in
the "
Record"
position
the
6V6
acts
as
an
oscillator,
the
6517
and
6J5
act-
ing
as
amplifiers.
In "
Listen"
position,
the
6V6
acts
in
its
usual
capacity
as
an
output
amplifier
tube.
CHANGES
Although
minor
changes
and
improvements
have
been
made,
four
changes
have
been
made
in
the
amplifier
circuit
that
will
affect
the
service
technician.
17
