39
REPAIR PARTS
TRACTOR - - MODEL NUMBER WET1338A

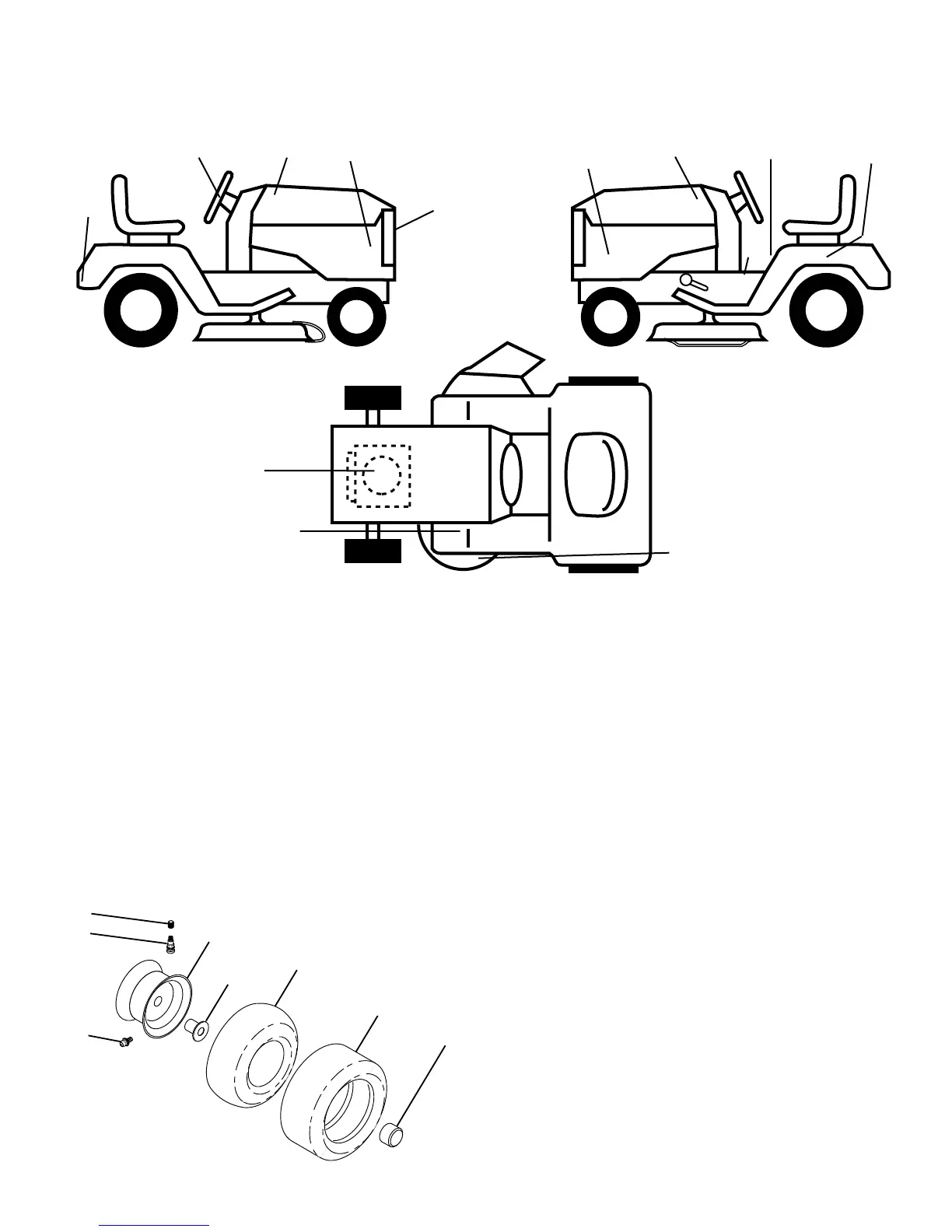

DECALS
KEY PART
NO. NO. DESCRIPTION
1 181249 Decal, Clutch/Brake Eng
2 162392 Decal, Grille
3 64-1726-29 Decal, Engine HP
5 164424 Decal, Side Panel
6 157002 Decal, Fender Danger English
7 162398 Decal Ins Str Wh
9 171448 Decal Fender
12 164578 Decal, Hood RH
14 164579 Decal, Hood LH
15 145005 Decal, Caution, Battery
16 156867 Decal, Oper Sdl P/L
17 136832 Decal, V-Belt Sch.
- - 138311 Decal, Handle Lft Height Adj.
- - 186391 Manual, Owner's English
KEY PART
NO. NO. DESCRIPTION
1 59192 Cap, Tire valve
2 65139 Stem, Valve
3 106222X Tire, Front
4 59904 Tube, Front (Service item only)
5 106732X624 Rim assembly, 6"front
6 278H Fitting, Grease (Front wheel only)
7 9040H Bearing, Flange (Front wheel
only)
8 106108X624 Rim assembly, 8" rear
9 124635X Tire, Rear
10 7152J Tube, Rear (Service item only)
11 104757X428 Cap, Hub Axle
- - 144334 Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
6
2
1
5,8
4,10
3,9
11
7
wheel_1
KEY PART
NO. NO. DESCRIPTION
WHEELS & TIRES
7
12
17
14
2
16
6
15
3
1
9
5
5
