OPERATION

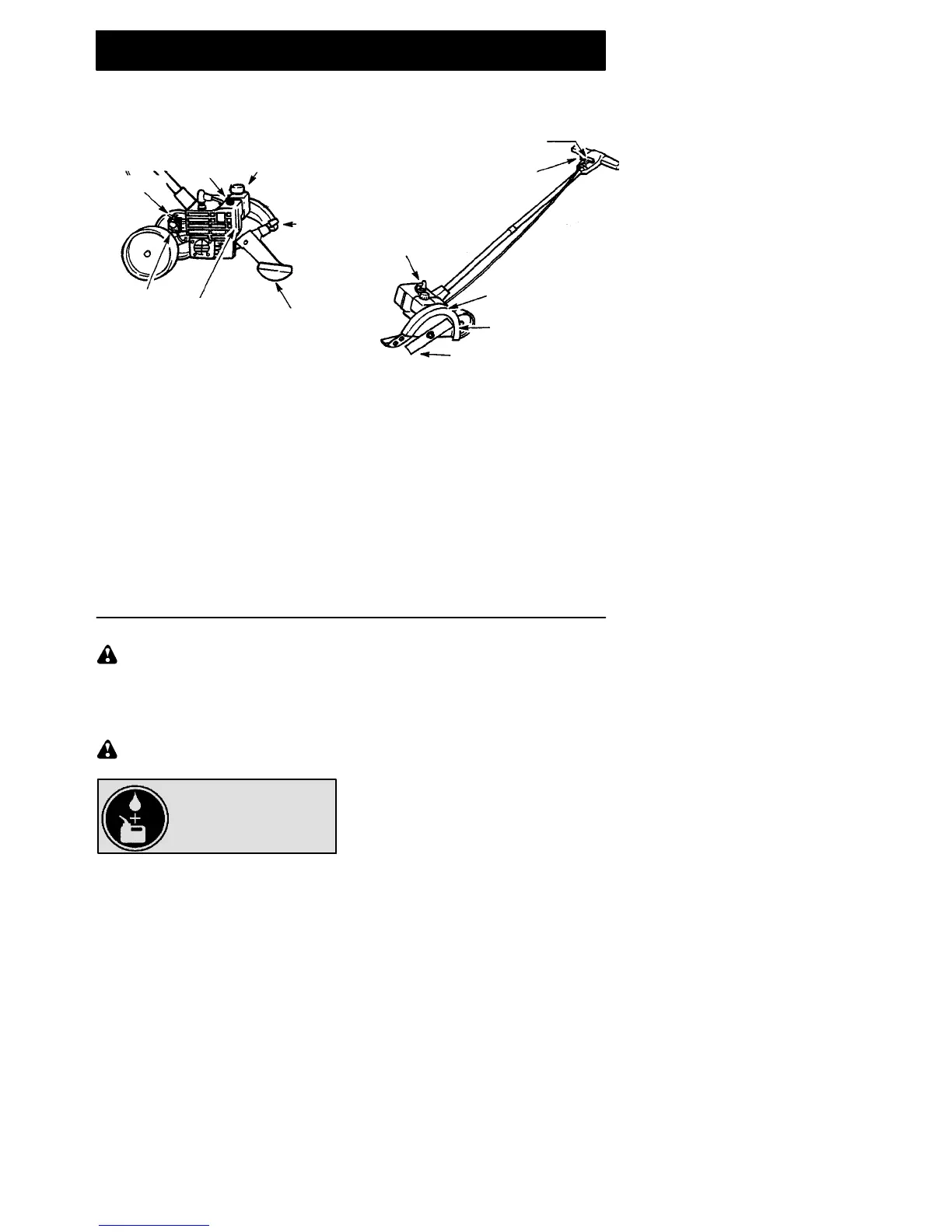

KNOW YOUR EDGER
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR
UNIT. Compare the illustrations with your unit to familiarize yourself with the location of the vari-
ous controls and adjustments. Save this manual for future reference.
Choke
Fuel/Oil Mix Cap
Spark Plug
Air Filter
Blade Guard
Blade
Throttle Trigger
Starter Rope Handle
Depth
Control
Lever
ON/OF F
Switch
Depth
Adjusting
Skid
Muffler and
Gua rd
Primer Bulb
ON/OFF SWITCH
TheON/OFFswitchisusedtoselecttheON
or OFF position.
STARTER ROPE HANDLE
The STARTER ROPE HANDLE is used for
starting the engine.
PRIMER BULB
The PRIMER BULB removes air from the car-
buretor and fuel lines and fills them with fuel.
Thisallowsyoutostarttheenginewithfewer
pulls on the starter rope. Activate the primer bulb
by pressing it and allowing it to return to its origi-
nal form.
CHOKE
The CHOKE helps to supply fuel to the engine
to aid in cold starting. Activate the choke b y
movingthechokelevertotheFULLCHOKE
position. After the engi ne attempts to start, move
the choke lever to the HALF CHOKE position.
Once engine has started, move the choke lever
to the OFF CHOKE position.
THROTTLE TRIGGER
The THROTTLE TRIGGER controls engine
speed. It is designed to be activated by the
right hand.
BLADE
The BLADE is designed to cut sod.
DEPTH ADJUSTING SKID
The DEPTH ADJUSTING SKID sets the
depth of the cut.
DEPTH CONTROL LEVER
The DEPTH CONTROL LEVER regulates
the cutting depth. Move the lever backward
for full depth edging, forward for half depth
edging.
BEFORE STARTING ENGINE
WARNING: Be sure to read the fuel
information in the safety rules before you be-
gin. If you do not understand the safety rules,
do not attempt to fuel your unit. Call
1-800-554-6723.
FUELING ENGINE
WARNING: Remove fuel cap slowly
when refueling.
HELPFUL TIP
To obtain the correct oil mix
ratio, pour 3.2 ounces of
2 --cycle synthetic oil into
one gallon of fresh gas.
This engine is certified to operate on unleaded
gasoline. Before operation, gasoline must be
mixed with a good quality synthetic 2-cycle air-
cooled engine oil designed to be mixed at a ratio
of 40:1. Poulan/WEED EA TER brand synthetic
oil is recommended. Mix gasoline and oil at a ra-
tio of 40:1. A 40:1 ratio is obtained by mixing 3.2
fluid ounces (95 ml) of oil with 1 gallon (4 liters)
of unleaded gasoline. DO NOT USE automotive
oil or boat oil. These oils will cause engine dam-
age. When mixing fuel, follow instructions
printed on container. Once oil is added to gaso-
line, shake container momentarily to assure that
the fuel is thoroughly mixed. Always read and
follow the safety rules relating to fuel before fuel-
ing your unit.
CAUTION: Never use straight gasoline in
your unit. This will cause permanent engine
damage and void the limited warranty.
FUEL REQUIREMENTS
This engine requires the use of minimum 87
octane [R+M]/2 clean gasoline.
IMPORTANT
Use of alcohol blended fuels (called gasohol or
using ethanol or methanol) can cause major en-
gine performance and durability problems.
