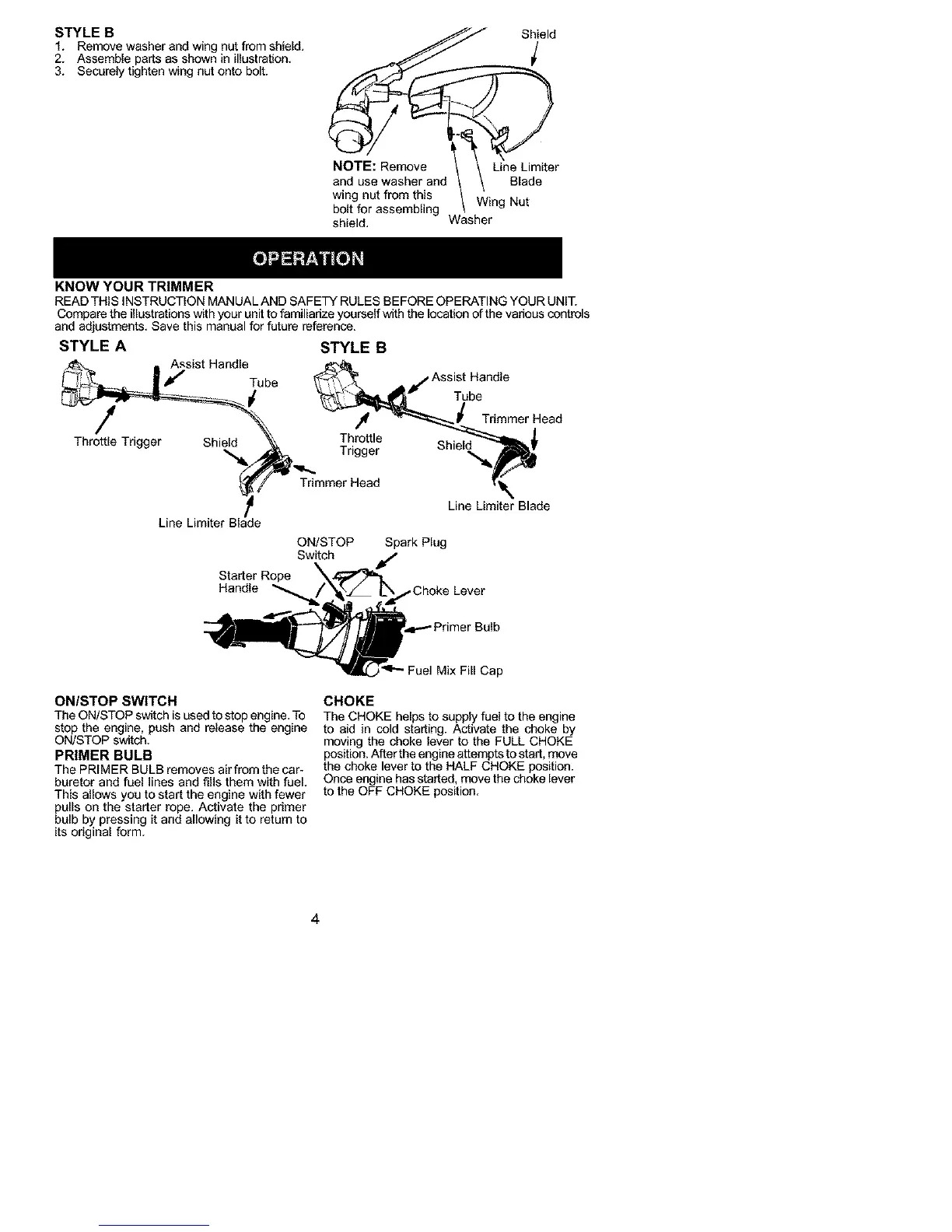

STYLE B
1. Remove washer and wing nut from shield.
2. Assemble pads as shown in illustration.
3. Securely tighten Wing nut onto bolt.
KNOW YOUR TRIMMER
NOTE'Remove / \ LiheLimite---- ' -- r
aed usewasher and / \ Blade
wing nut from this / _,_1:_.t.h,,
bol_for assembling / wing i'_u[
shield. Washer
READ THIS iNSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT.
Compare the illustrations with your unit to familiarize yourself with the location of the various controls
and adjustments. Save this manual for future reference.
STYLE A STYLE B
_. ,= A_sist Handle
Tuba ,,AssistHaed,e
.... -'------- -_. iI Tube
Trimmer Head
Thro_ttla
Throttle Trigger Shield _ _.
_._ /r,gger Shield%
Sf/ Trimmer Head Line Limiter Blade
Line Limiter Blade
ON/STOP Spark Plug
Switch f
Starter Rope
Handle • Choke Lever
ONISTOP SWITCH
The ON/STOP switch is used to stop angina. To
stop the engine, push and release the engine
ON/STOP switch.
PRIMER BULB
The PRIMER BULB removes air from the car-
buretor and fuel lines and fills them with fuel.
This allows you to start the engine with fewer
pulls on the starter rope. Activate the primer
bulb by pressing it and allowing it to return to
its original form.
Mix Fill Cap
CHOKE
The CHOKE helps to supply fuel to the engine
to aid in cold starling. Activate the choke by
moving the choke lever to the FULL CHOKE
position. After the engine attempts to start, move
the choke lever to the HALF CHOKE position.
Once engine has started, move the choke lever
to the OFF CHOKE position,
4
