Wega Atlas User Manual

espresso coffee machine - hydraulic diagrams
R
IDR 5
English

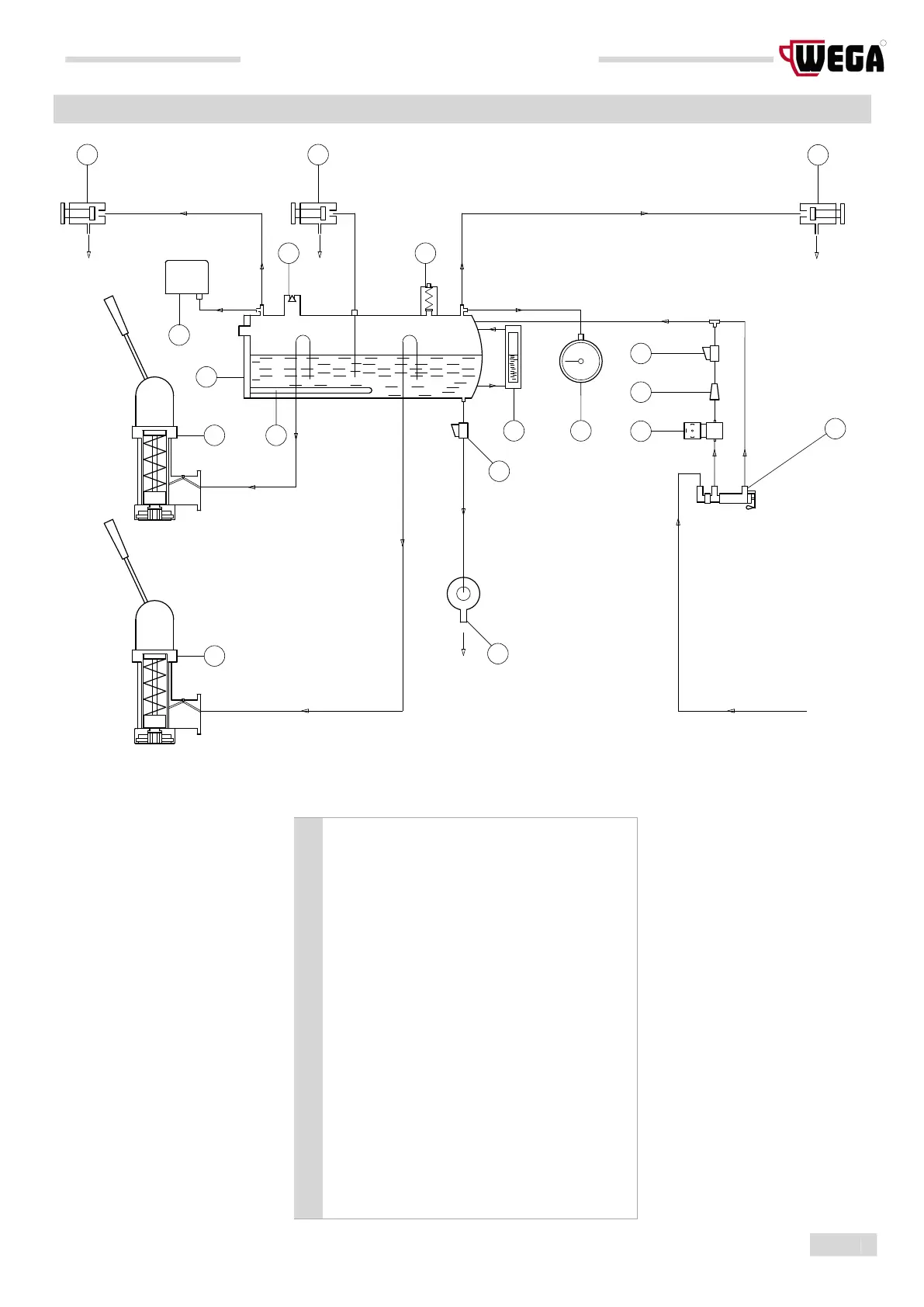

1. LEVER GROUP hydraulic diagram
6
5
12
8
10
7
S
2
E
4
1
14
6
3
9
11
13
11
14
15
1 Manual water inlet tap
2 Drain tub
3 Gauge
4 Boiler level-check window
5 Boiler
6 Delivery group
7 Hot water tap
8 Steam tap
9 Safety valve
10 Negative pressure valve
11 Tap
12 Pressure switch
13 Automatic Water Inlet Solenoid Valve (optional)
14 Water inlet filter
15 Boiler heating element
E Water inlet
S Drain

Wega Atlas Specifications

General

Boiler Material	Copper
Water Level Indicator	Yes
Type	Espresso Machine
Material	Stainless Steel
Frequency	50/60 Hz
