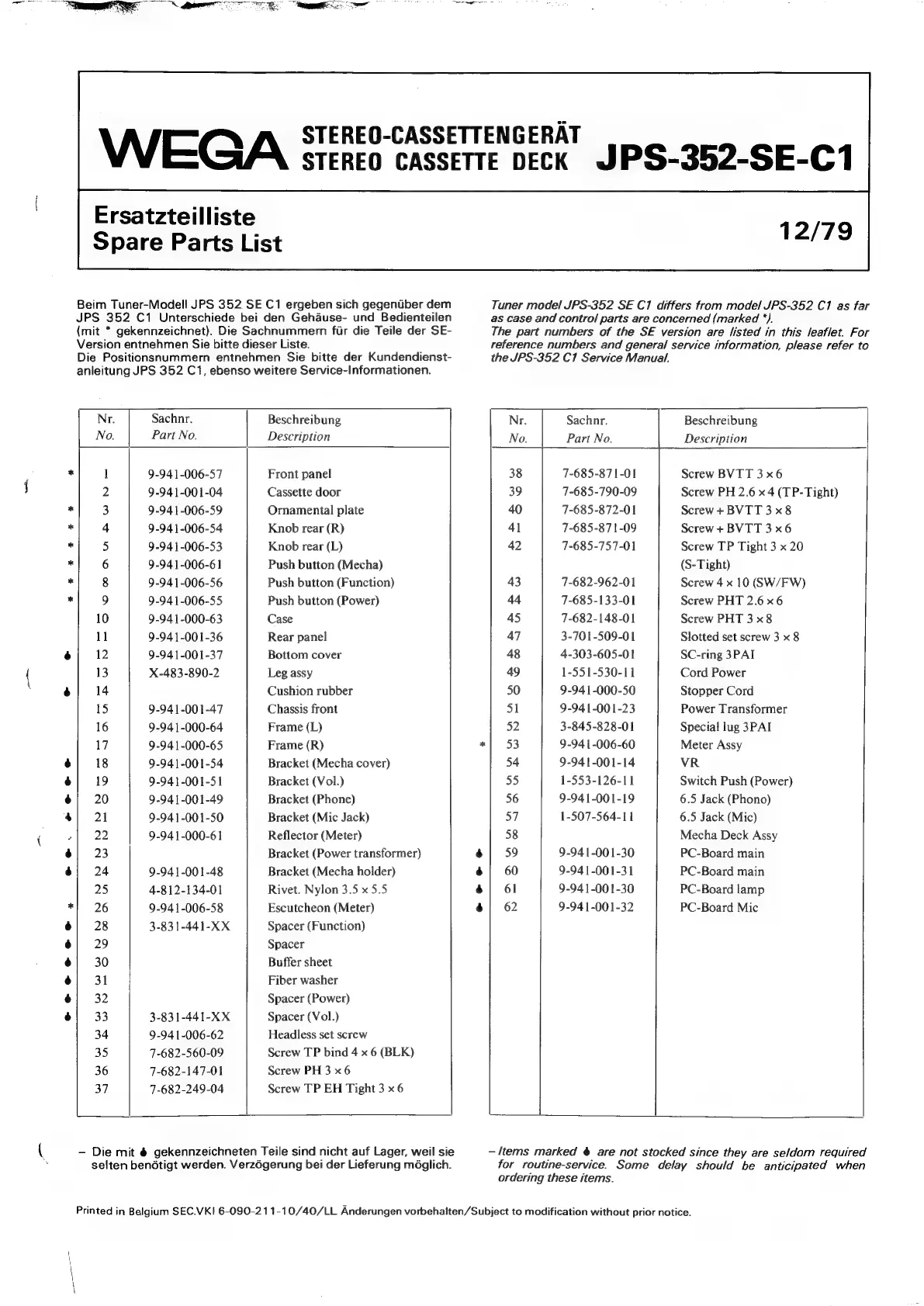

WEGA
Ersatzteilliste
Spare Parts List
Beim Tuner-Modell JPS 352 SE C1 ergeben sich gegenttber dem
eo, ae
JPS 352 C1 Unterschiede bei den Gehause- und Bedienteilen
(mit * gekennzeichnet). Die Sachnummern fur die Teile der SE-
Version entnehmen Sie bitte dieser Liste.
Die Positionsnummern entnehmen Sie bitte der Kundendienst-
anleitung JPS 352 C1, ebenso weitere Service-Informationen.
Nr. Sachnr. Beschreibung
No. Part No. Description
* 1 9-941-006-57 Front panel
2 9-941-001-04 Cassette door
* 3 9-941-006-59 Ornamental plate
* 4 9-941 -006-54 Knob rear (R)
* 5 9-941 -006-53 Knob rear (L)
* 6 9-941-006-61 Push button (Mecha)
* 8 9-941-006-56 Push button (Function)
* 9 9-941-006-55 Push button (Power)
10 9-941-000-63 Case
11 9-941-001-36 Rear panel
é 12 9-941-001-37 Bottom cover
13 X-483-890-2 Leg assy
oe; 14 Cushion rubber
15 9-941-001-47 Chassis front
16 9-941-000-64 Frame (L)
17 9-941-000-65 Frame (R)
é 18 9-941-001-54 Bracket (Mecha cover)
é 19 9-941-001-51 Bracket (Vol.)
é 20 9-941-001-49 Bracket (Phone)
4 21 9-941-001-50 Bracket (Mic Jack)
22 9-941-000-61 Reflector (Meter)
é 23 Bracket (Power transformer)
6; 24 9-941-001-48 Bracket (Mecha holder)
25 4-812-134-01 Rivet. Nylon 3.5 x 5.5
*| 26 9-941-006-58 Escutcheon (Meter)
é 28 3-831-441-XX Spacer (Function)
é 29 Spacer
é 30 Buffer sheet
é 31 Fiber washer
é 32 Spacer (Power)
é 33 3-831-441-KX Spacer (Vol.)
34 9-941-006-62 Headless set screw
35 7-682-560-09 Screw TP bind 4 x 6 (BLK)
36 7-682-147-01 Screw PH 3 x6
37 7-682-249-04 Screw TP EH Tight 3 x6
eee ©
STEREO-CASSETTENGERAT
STEREO CASSETTE DECK JIPS-352-SE-C1
Tuner model JPS-352 SE C1 differs from model JPS-352 C1 as far
as case and control parts are concerned (marked *).
The part numbers of the SE version are listed in this leaflet. For
reference numbers and general service information, please refer to
the JPS-352 C1 Service Manual.
Nr. Sachnr. Beschreibung
No. Part No. Description
38 7-685-871-01 Screw BVTT 3 x6
39 7-685-790-09 Screw PH 2.6 x 4 (TP-Tight)
40 7-685-872-01 Screw+BVTT 3 x8
41 7-685-871-09 Screw + BVTT 3 x6
42 7-685-757-01 Screw TP Tight 3 x 20
(S-Tight)
43 7-682-962-01 Screw 4 x 10 (SW/FW)
44 7-685-133-01 Screw PHT 2.6 x6
45 7-682-148-01 Screw PHT 3 x8
47 3-701-509-01 Slotted set screw 3 x 8
48 4-303-605-01 SC-ring 3PAI
49 1-551-530-11 Cord Power
50 9-94 1-000-50 Stopper Cord
51 9-941-001-23 Power Transformer
52 3-845-828-01 Special lug 3PAI
53 9-941-006-60 Meter Assy
54 9-941-001-14 VR
55 1-553-126-11 Switch Push (Power)
56 9-941-001-19 6.5 Jack (Phono)
57 1-507-564-11 6.5 Jack (Mic)
58 Mecha Deck Assy
59 9-941-001-30 PC-Board main
60 9-941-001-31 PC-Board main
61 9-941-001-30 PC-Board lamp
62 9-941-001-32 PC-Board Mic
les
— Die mit @ gekennzeichneten Teile sind nicht auf Lager, weil sie
selten bendtigt werden. Verzégerung bei der Lieferung méglich.
—/tems marked @ are not stocked since they are seldom required
for routine-service. Some delay should be anticipated when
ordering these items.
Printed in Belgium SEC.VKI 6-O090-21 1-10/40/LL. Anderungen vorbehalten/Subject to modification without prior notice.
